Siklu EtherHaul - QoS Configuration Using the Web-based Management GUI

EtherHaul Operation, Administration and Maintenance Manual
Page 76

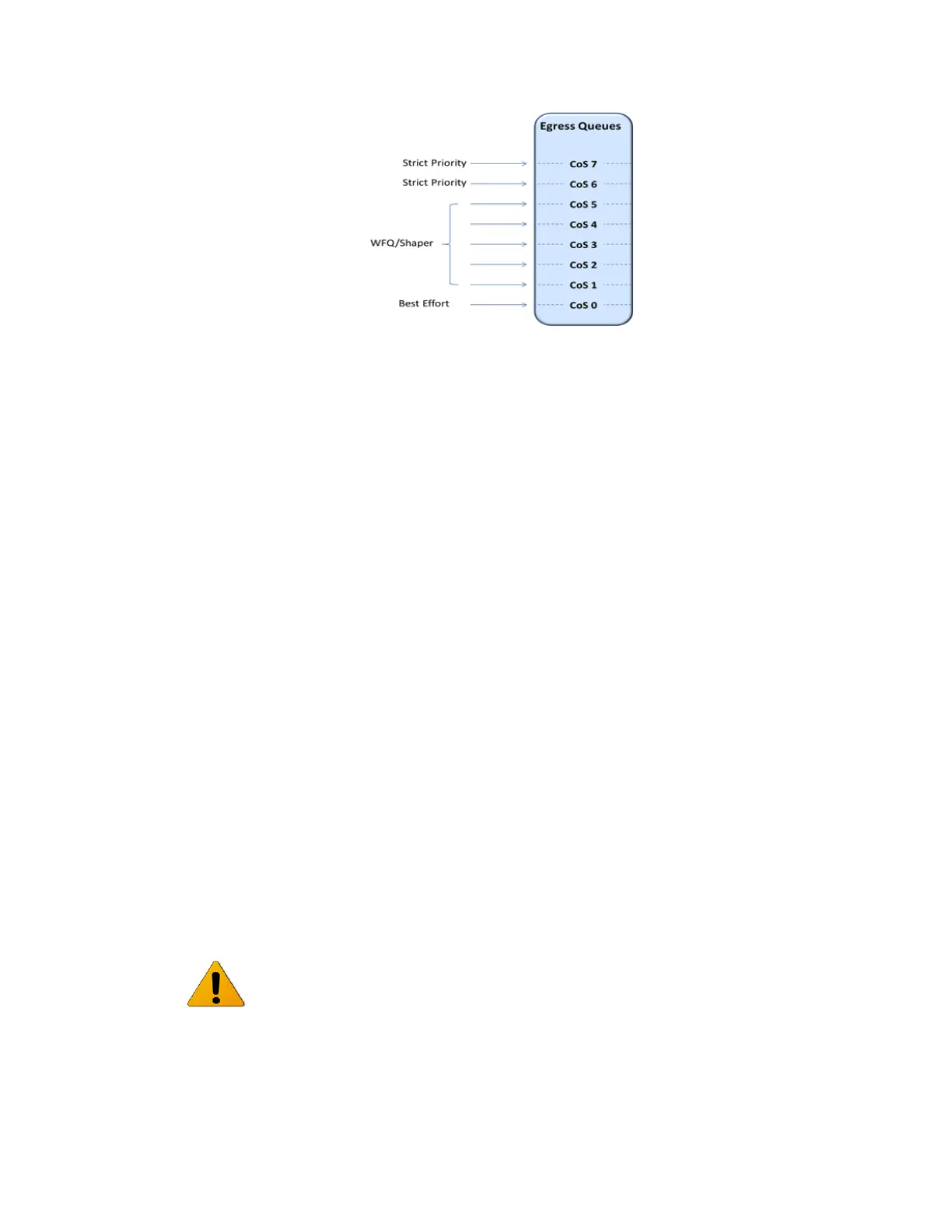

Figure 9-2 Egress Queues Scheduling
QoS functions:
 Classifier (COS and EVC)
 Metering (CIR/EIR/CBS/EBS)
 Ingress QoS Marking (Green/Yellow/Red)
 Scheduler (Strict Priority/WFQ/ SP+Shaper /WFQ+Shaper)
9.1 QoS Configuration Using the Web-based Management GUI
The Web-Based Management Graphical User Interface (GUI) supports the commonly-
used classification options.
Advanced QoS Configuration can be configured in CLI only and includes:
 Advanced classification
 Metering (CIR/EIR/CBS/EBS) and Coloring (Ingress QoS color Marking)
For EH-1200F/FX and EH-600T systems, additionally supported:
 PCP Rewrite
 PFC – Priority-based flow control
 Queue Management
 WRED
Note:
When loading the Advanced Config page (that includes the Quality of Service
section), the current system’s QoS configuration will be evaluated. If advanced
configuration that is not supported by the GUI is present, the QoS configuration will
not be displayed and the following message will be displayed:
“The QoS configuration cannot be displayed. Refer to the CLI for configuration or
restore default QoS configuration.”
