The implementation of Provider Bridge is a network of up to seven virtual bridges
connected in a “cross-like” fashion. Each component acts as a virtual bridge. A
component can have both external and internal ports. An external port name is identical
to its interface name. An internal port name uses the name of its peer component.
Bridge component types:
 S Component – an S component handles traffic tagged with S-VLANs.
A single S component (named S1) is the heart of the bridge and cannot be deleted. All
packets passing through this bridge must be tagged with S-VLAN.
 C Component – a C component handles traffic tagged with C-VLANs.
On EH-1200F/FX and EH-600T systems: By default, no C components defined (“Single
Component Bridge Model”). Up to 6 C components (named C1 to C6) can be defined.
On EH-1200/TL systems: By default, C components defined (“Single Component Bridge
Model”). Up to 4 components (named C1 to C4) can be defined.
All packets passing through this bridge must be tagged with S-VLAN.
You can change the default bridge configuration to suit your network by removing or
adding the desired bridge components.
Component
S1
Component
C2
Component
C1
Component
C6
Component
C4
Port host
Port s1
Port c1
Port eth0
Port s1Port c2
Port eth2
Port c4
Port c6Port s1
Port eth4
Component
C5
Port c5Port s1
Port eth3
Component
C3
Port eth1
Port s1Port c3
Management
Port
Radio
Port
Ethernet #1
Port
Ethernet #2
Port
Ethernet #4
Port
Ethernet #3
Port
Port s1
(Optional)
(Optional) (Optional)
(Optional)
(Optional)
(Optional)

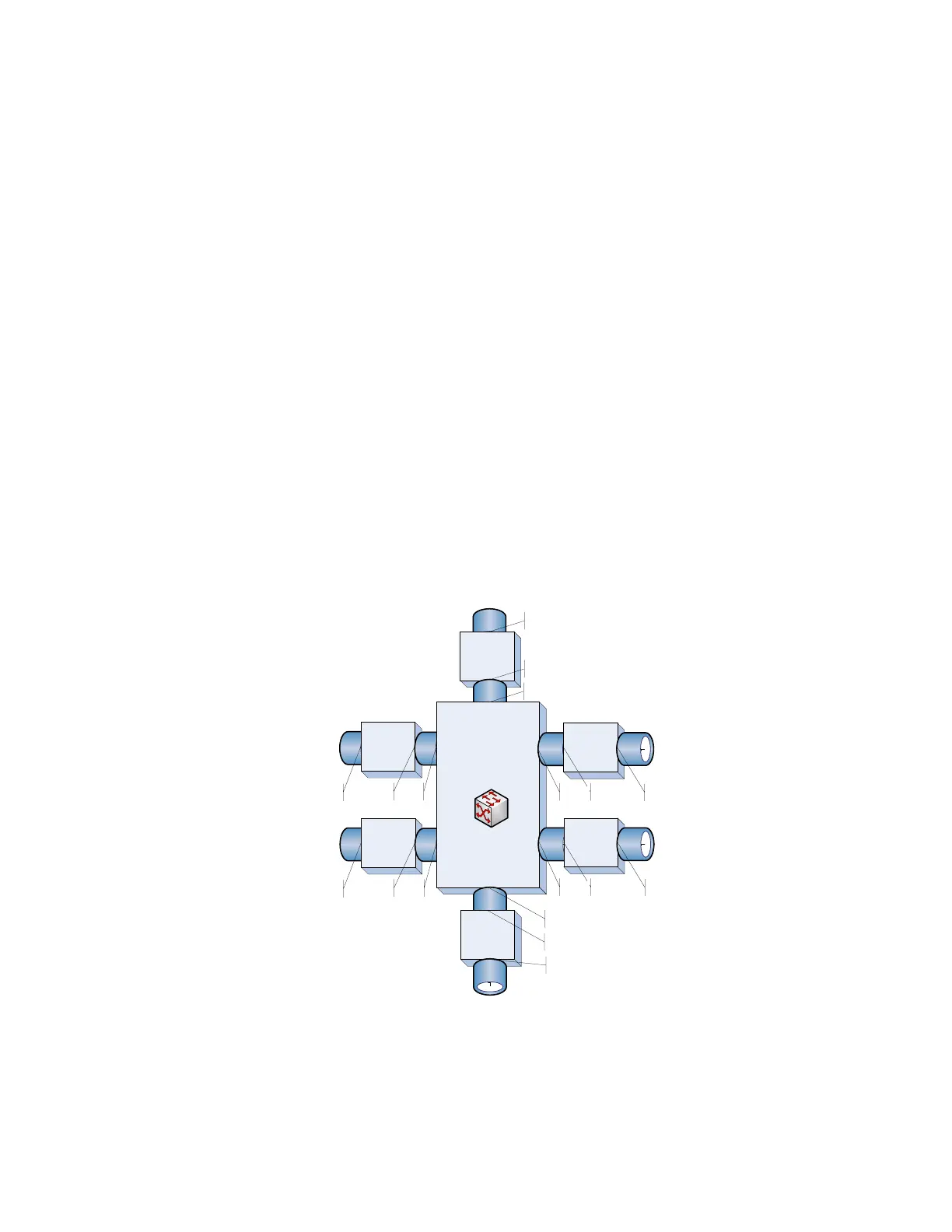

Figure 8-1 EtherHaul Bridge Architecture
