5

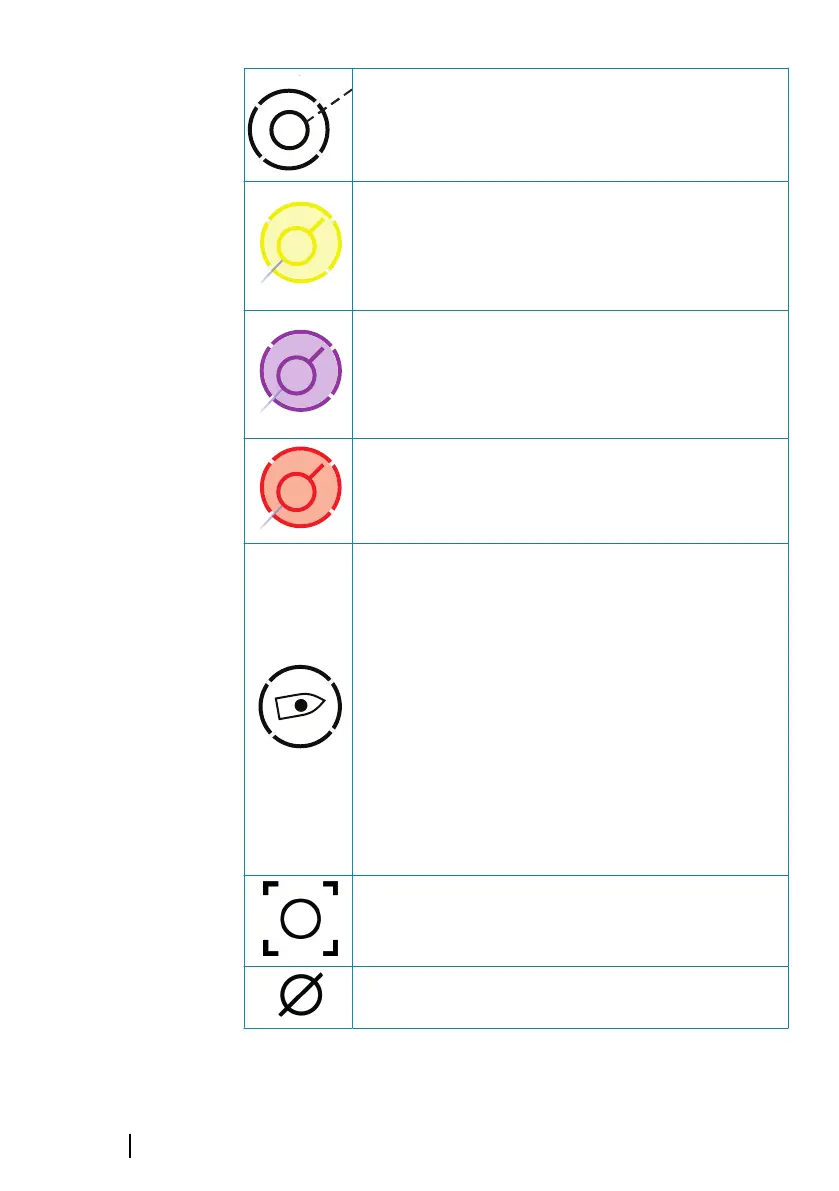

Tracked moving radar target with course extension.
Shows the tracked target ring and the target ID
number.
Tracked dangerous radar moving target (yellow),
with trail when target history is enabled. The yellow
color is shown when the radar palette is black/red or
black/green. Shows the tracked target ring and the
target ID number.
3
Tracked dangerous radar moving target (purple),
with trail when the target history is enabled. The
purple color is shown when the radar palette is
white/red. Shows the tracked target ring and the
target ID number.
4
Tracked dangerous radar moving target (red), with
trail when target history is enabled. The red color is
shown when the radar palette is black/yellow. Shows
the tracked target ring and the target ID number.
8
Tracked associated target. Shows the tracked target
ring and the target ID number. When the radar and
the AIS signal acquire the same target for tracking,
the system will display the target with one symbol.
This reduces the number of AIS symbols and radar
targets on the PPI. The association function also
compensates for a possible failure in one of the two
targets, e.g., if the radar tracked target is positioned
behind an island, the system keeps tracking and
visualizing the AIS target.
Ú
Note: The tracked radar target continues to be
analyzed by the system when the target
association is active.
Selected radar target.
Lost radar target.
120
Radar | GO XSE/XSR Operator Manual
