Robertson AP9 Mk3 Autopilot
5-22 20169223D

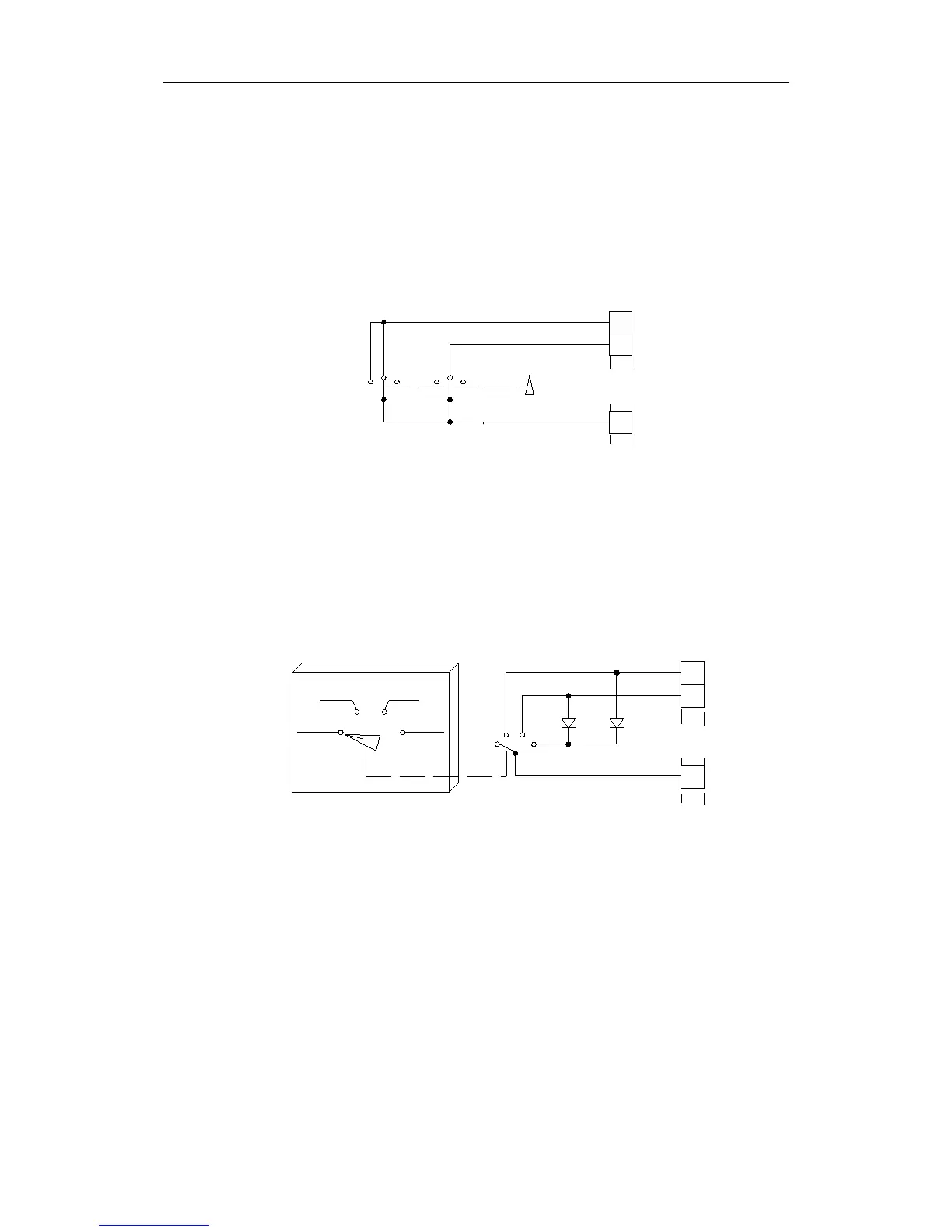

F200-40 and Mode Selection
To allow the F200-40 to control the modes of the AP9 MK3, no links
in connection with NFU-AUTO or FU-AUTO must be present. It is
therefore required to disconnect the links by adding an extra function
to the Mode Selector Switch.
Example:
1
2
MODE 1 NFU
MODE 2 FU
TB1
D9X INTERCONNECTION PCB
AUTO
NFU
MODE SELECTOR
5
TB3
COMMON
F200-40
Fig. 5-23
F200-40 as Mode Selector
Complete Mode Selections
By using the following connection, mode selection between F200-
40/NFU/FU/AUTO can be made:
1
2
MODE 1 NFU
MODE 2 FU
TB1
D9X INTERCONNECTION PCB
MODE SELECTOR
5
TB3
COMMON
AUTO
NFU
F200-40
FU
(OFF)
Fig. 5-24
Complete mode selection
Note ! If F200-40 is not used, this position can be omitted.
