Simrad Robertson AP9 Mk3 User Manual

Installation
20169223D 5-55
S1-S3
No strap connections: Safe relay controlled by
autopilot
Connection between S1 and S2: Safe relay controlled by NFU-
handle and autopilot
Connection between S2 and S3: Safe relay ON

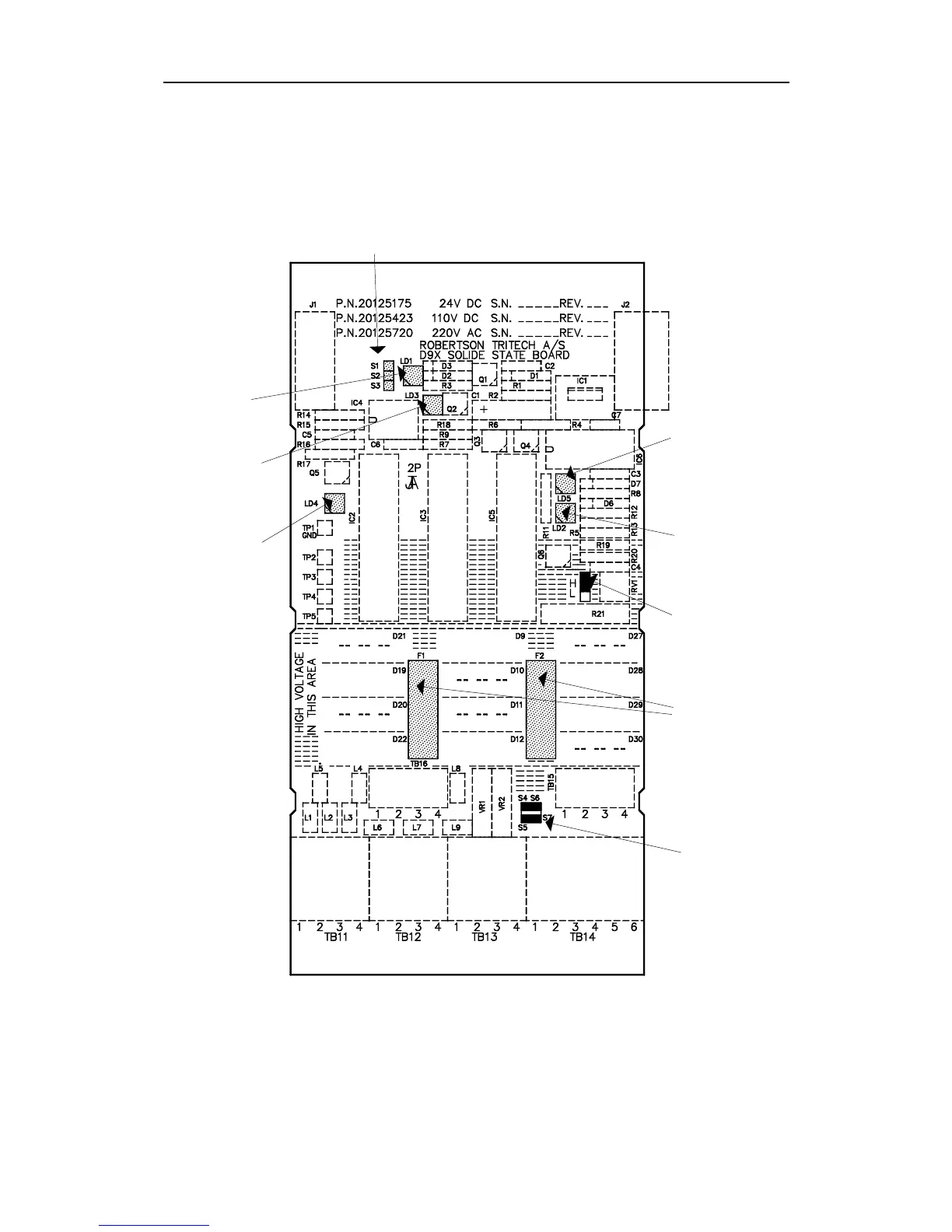

Fig. 5-45
D9X Solid State Board, component layout
LD1
Power ON
LD3
Starboard
command
LD4
Port
command
S4-S6
NFU
priority
F1, F2
Fuses 1A
Quick
Current
protection
limit
LD2
Safe relay
ON
LD5
Current
limiter ON
