Robertson AP9 MK3 Autopilot
7-4 20169223D
7.4 RF14XU Rudder Feedback Unit
22501647 RF14XU Rudder Feedback. Unit
w/RF standard transmission link
22501654 RF14XU Rudder Feedback Unit
22500300 Shaft coupling
22500458 1 Gasket
22501605 2 Electronic XU drive module
44105120 3 Actuator
44105146 4 Limit switch
44118388 5 Potentiometer 5 Kohm
44132033 6 Corrosion inhibitor sponge
22500284 7 Activator block
22500276 8 Activator disc

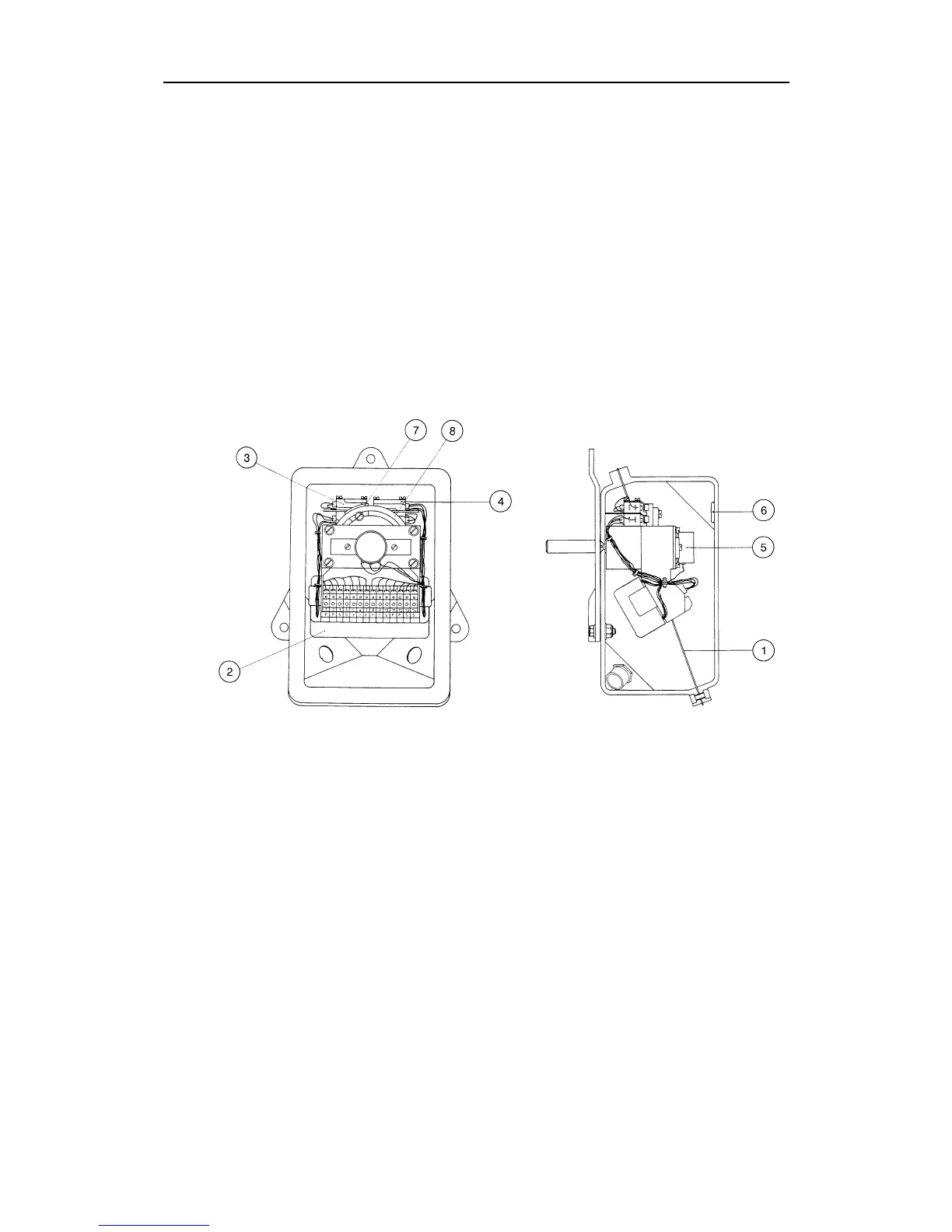

Fig. 7-3
RF14XU - Spare parts
