4.15 RI9 Rudder Angle Indicator
Dimensions:............................ See Fig. 4-12.
Supply voltage:.......................24/32V DC ±20%
Illumination:...........................Maximum 80 mA
Input signal:............................ 0.1 -1.1 mA or ±10V
Rudder angle:.........................45°-0-45° (other angles as
option)
Ambient temperature,
storage:................–25 - +70°C
operation: .........–10 - +55°C
Protection:...............................IP56
Safe distance to magnetic compass: 2.6 m (9ft.)
Rudder Feedback Units: .......RF45, RF45X, RF14XU (RF100, RF140).
137 (5.40")
144 (5.67")
Panel cut-out:138x138 (5.44")
65 (2.56")
57 (2.24")
144 (5.67")
153 (6.02")
RI9
Fig. 4-12

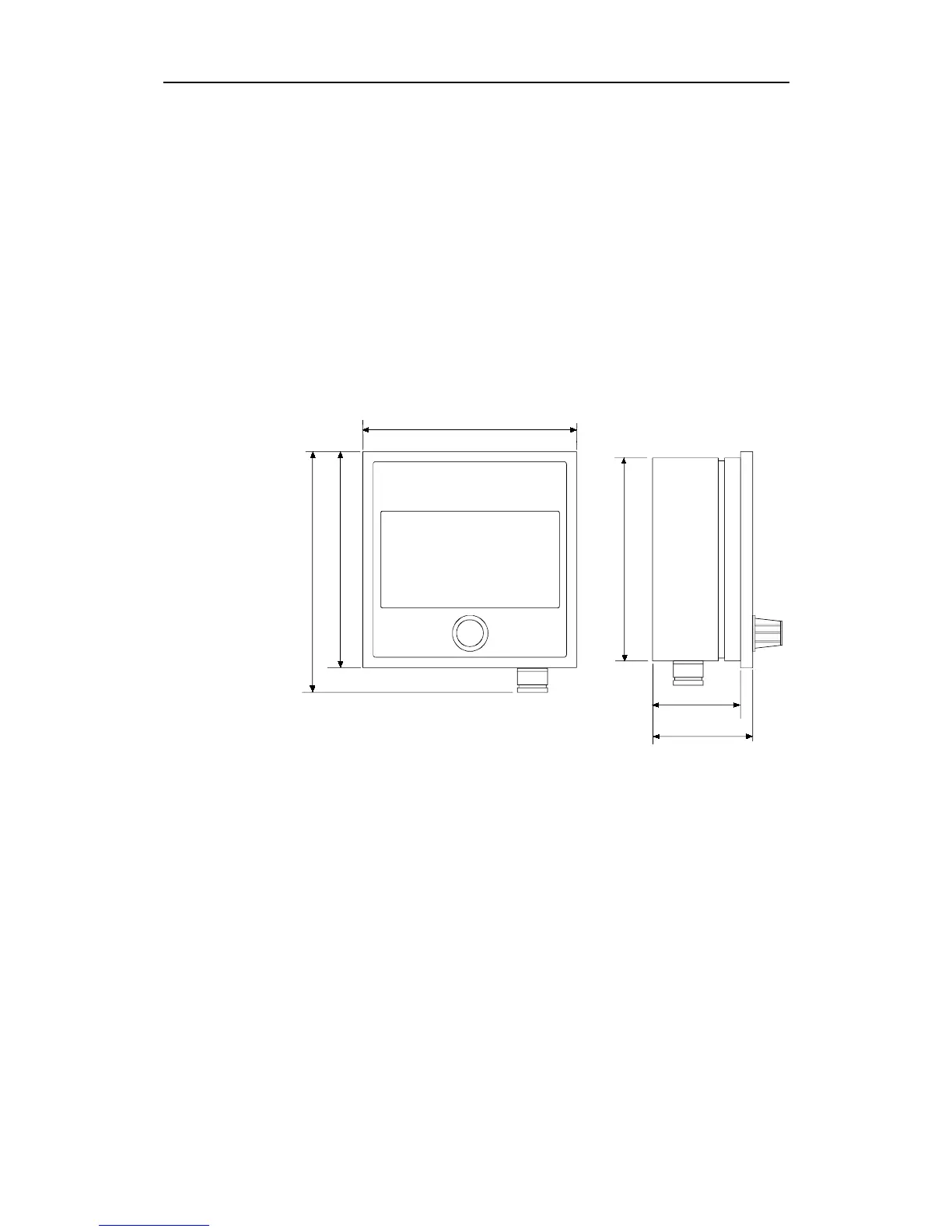

RI9 Rudder Angle Indicator - Dimensions
