Simrad Robertson AP9 Mk3 - Fig. 5-43 D9 X D

Installation
20169223D 5-53

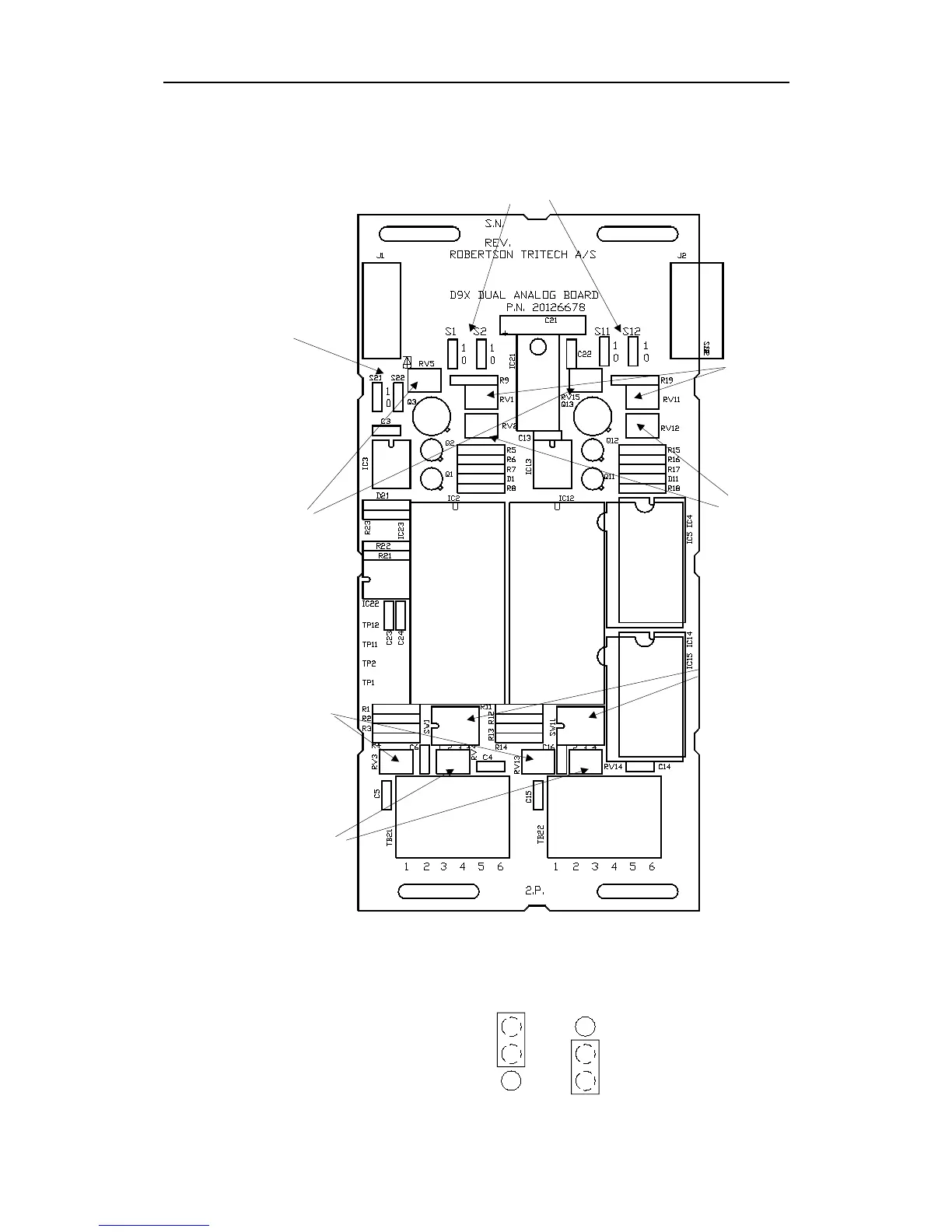

Fig. 5-43
D9X Dual Analogue Board, component layout (Rev. - C )
Pos. 0
Pos. 1
S21, S22
Pos. 0:
Rudder feedback
signal to autopilot
Pos. 1:
10kHz signal to
autopilot
RV5, RV15
(Channel 1 and 2)
Gain reduction on
input signal
RV3, RV13
(Channel 1 and 2)
Input offset adjust
RV4, RV14
(Channel 1 and 2)
Output offset
ad
j
ust
RV1, RV11
(Channel 1 and 2)
40mA output
adjust
RV2, RV12
(Channel 1 and
2) 40mA output
adjust
SW1, SW11
(Channel 1 and
2) Selection of
output signal
S1, S2, S11, S12
Selection of input signal from bus or
from external input TB21
Legend: S1, S2,
S11, S12
S21, S22
