Robertson AP9 MK3 Autopilot
1-12 20169223D
1.10 Rudder Angle Indicators
RI9
RUDDER
PANORAMA
NO.1
NO.2
NO.3
NO.4
24V DC
INDICATOR
SUPPLY
24V DC
INDICATOR
SUPPLY
FEEDBACK
TO AUTOPILOT
RF14XU
+/-45/60/70/90 DEGREE
FREQ.
3400Hz +/-20Hz/DEGREE
RI9
RI9
RI9

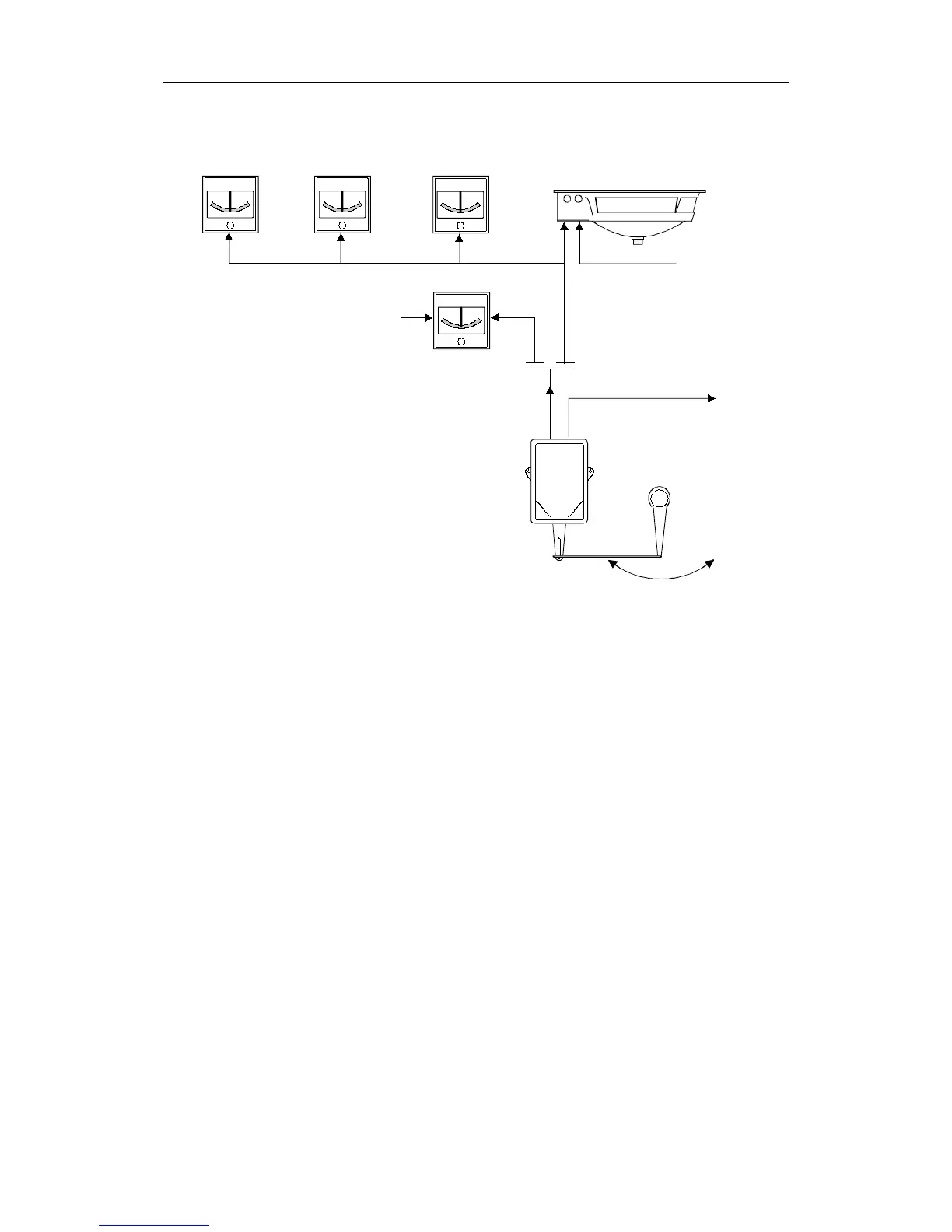

Fig. 1-9
Rudder Angle Indicators
Fig. 1-9 shows a typical Rudder Angle configuration. Number and
type of indicators varies from ship to ship.
The indicators must be of the "voltage" type, such as Panorama, RI40
and RI9. Installation instructions are supplied with the indicators.
