Simrad Robertson AP9 Mk3 - Fig. 5-44 D9 X D

Robertson AP9 Mk3 Autopilot
5-54 20169223D

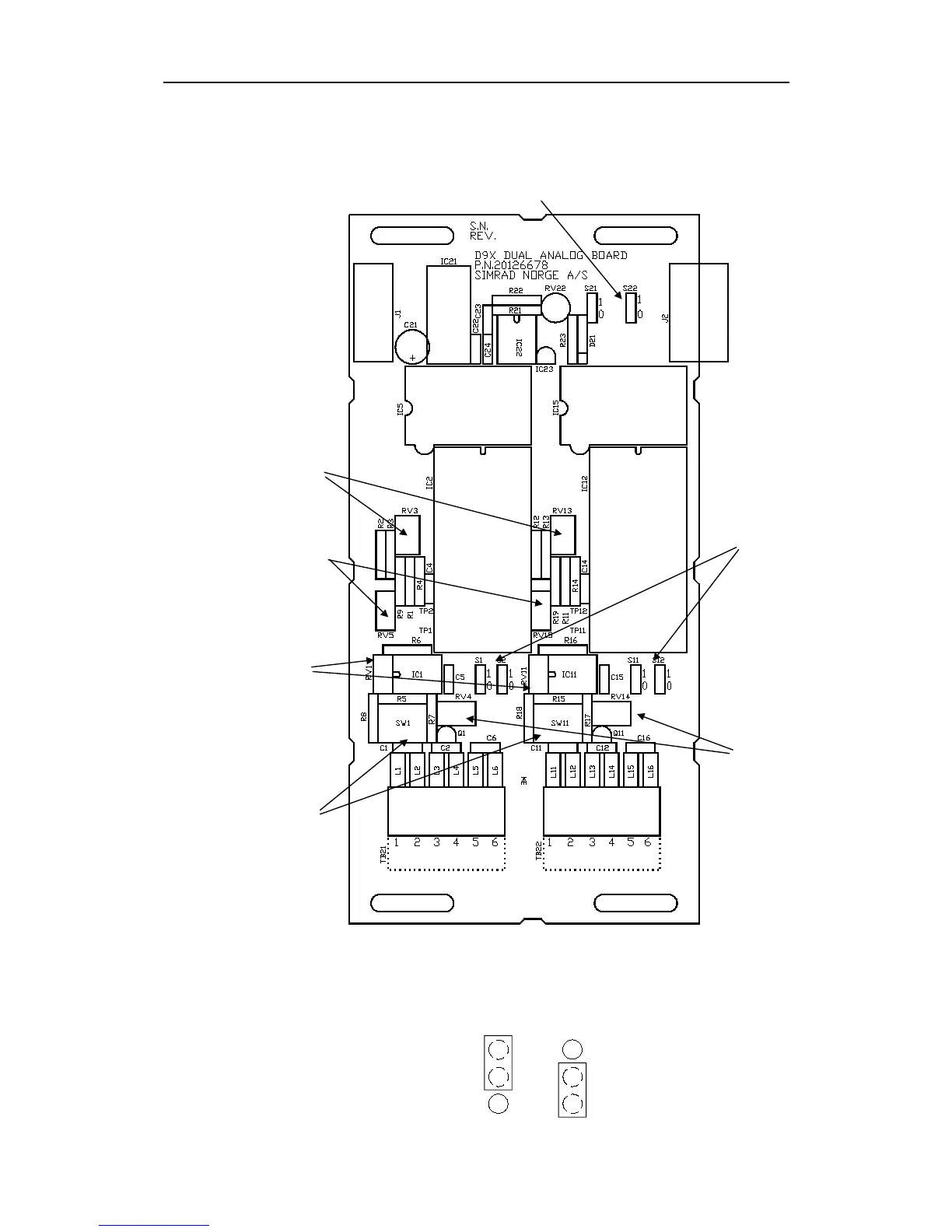

Fig. 5-44
D9X Dual Analogue Board, component layout (Rev. D - )
Pos. 0
Pos. 1
S21, S22
Pos. 0: Rudder feedback signal to autopilot
Pos. 1: 10kHz signal to autopilot
S1, S2,
S11, S12
Selection of
input signal
from bus or
from external
input TB21
RV5, RV15
(Channel 1 and 2)
Gain reduction on
input signal
RV3, RV13
(Channel 1 and 2)
Input offset adjust
RV4, RV14
(Channel 1 and 2)
Output offset
ad
j
ust
SW1, SW11
(Channel 1 and
2) Selection of
output signal
RV1, RV11
(Channel 1 and 2)
40mA output
adjust
Legend: S1, S2,
S11, S12
S21, S22
