Operation
20169223D 2-21
F200-40 Remote Control
The F200-40 hand held remote control makes it possible to
remotely control the AP9 MK3 autopilot.
The following control functions are obtainable:
• Display that shows operational mode and vessel heading or set
course like the course display on the control unit.
• Course selection by a rotary knob
• Course adjustments by push buttons
• Mode selection
• Manual steering by course selector knob (Follow-Up)
• Manual steering by push buttons (Non-Follow-Up)
In a dual station system, using one main and one remote control
unit, it is possible to connect one F200-40 to each control unit and
obtain individual control from each unit.
Note ! If a separate external mode selector is used, this must include an off position
to enable mode changes from the F200-40 Remote Control. Refer to page 5-
23.

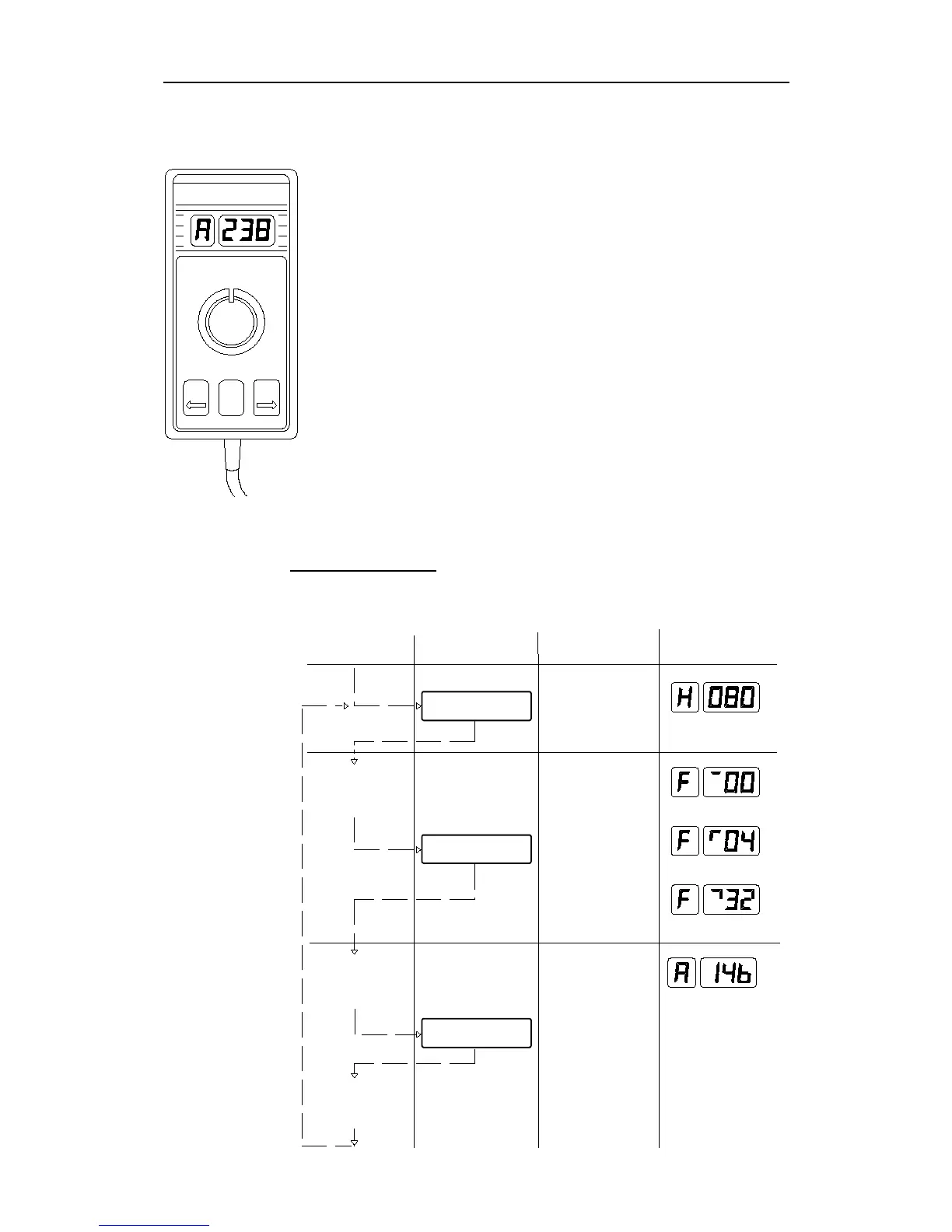

F200-40 Functions
The table starts with the autopilot switched to HELMSMAN mode
with 080° as heading.
PORT STBD
MODE
COURSE
F200
NFU steering by
F200-40 PORT/
STBD push
buttons.
Follow-Up steering
by F200-40
Course Selector
button
* * * * * * *
AUTOPILOT
NON FOLLOW UP
HELMSMAN
F200 FOLLOW UP
HELMSMAN
AP9MKII Display Function F200-40 Display
F200-40
Mode button
Autosteering.
Course changes
can be made
either by the
F200-40 Course
Selector, PORT
and STBD buttons
or, by the autopilot
Course Selector.
Vessel heading
Midship rudder
4°port rudder
32° stbd rudder
Automode
146° Course to
steer
Press F200-40
Mode button
one time
Press F200-40
Mode button a
second time
Press F200-40
Mode button a
third time
