5.11 FU9X Follow up Steering Lever
Mounting
Refer to Fig. 5-31. For bulkhead mounting, use the 8 bushings
enclosed with the unit. These are placed two and two against each
other and the screws are put through them. Direct contact between
FU9X and a steel bulkhead is then avoided and corrosion is
prevented. The cover plate can be turned 360 degrees for the most
convenient position of cable outlet. For panel mounting use the two
mounting brackets enclosed with the unit (Fig. 5-27).

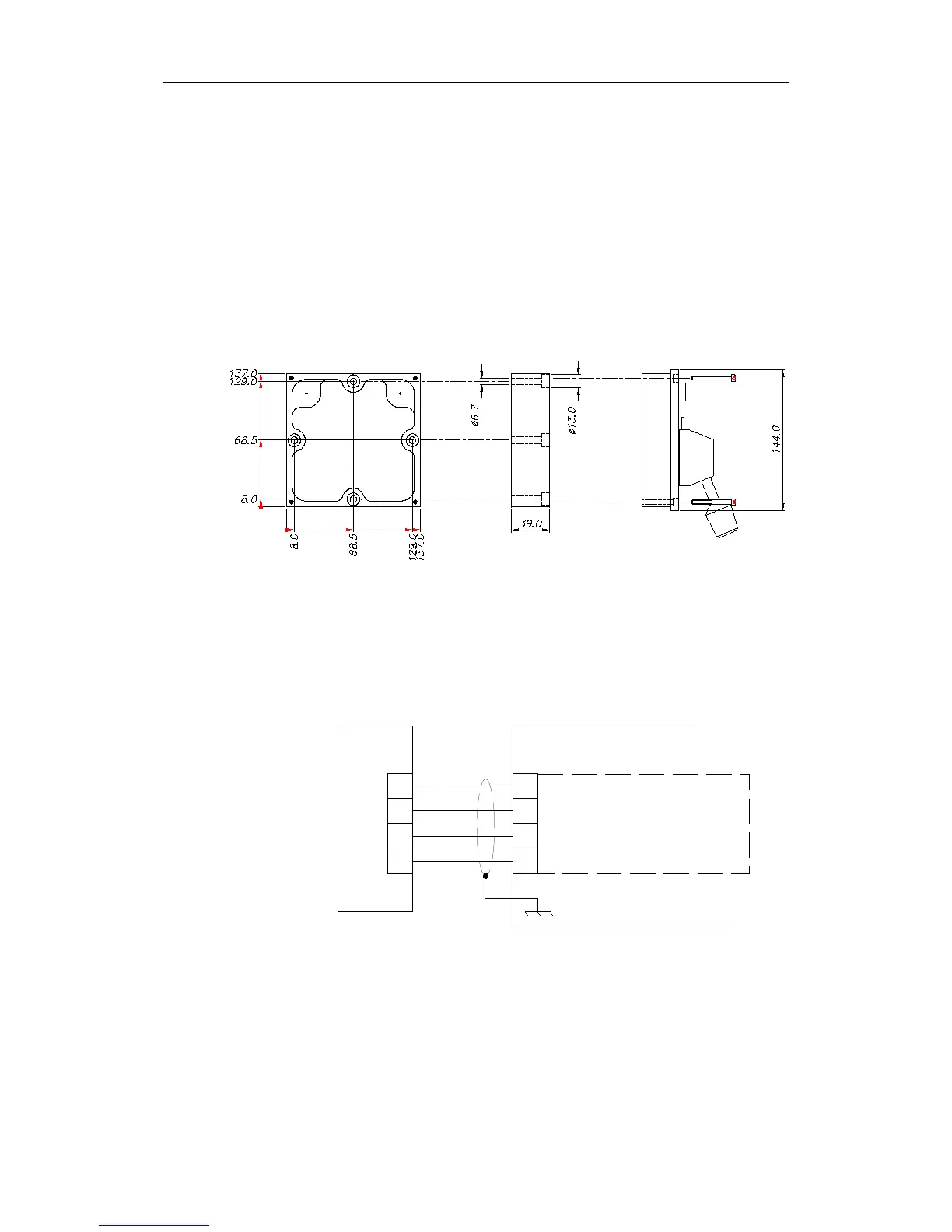

Fig. 5-31
FU9X Steering Lever, bulkhead mounting
Electrical connection
The FU lever is connected to the D9X Distribution unit according to
Fig. 5-32.
1
1
2
3
5
4
3
2
+15V
GND
T.C.
FU SIGN.
+15V
RTN
MODE 2 FU
FU SIGN.
D9X DISTRIBUTION UNIT
TB5
INTERCONN.
BOARD
FU9X
Fig. 5-32
FU9X connection to D9X
