Robertson AP9 Mk3 Autopilot
5-56 20169223D
S11
Pos. 0: 10kHz signal to AP9 MK3 (analogue rudder)
Pos. 1: Rudder Feedback to AP9 MK3

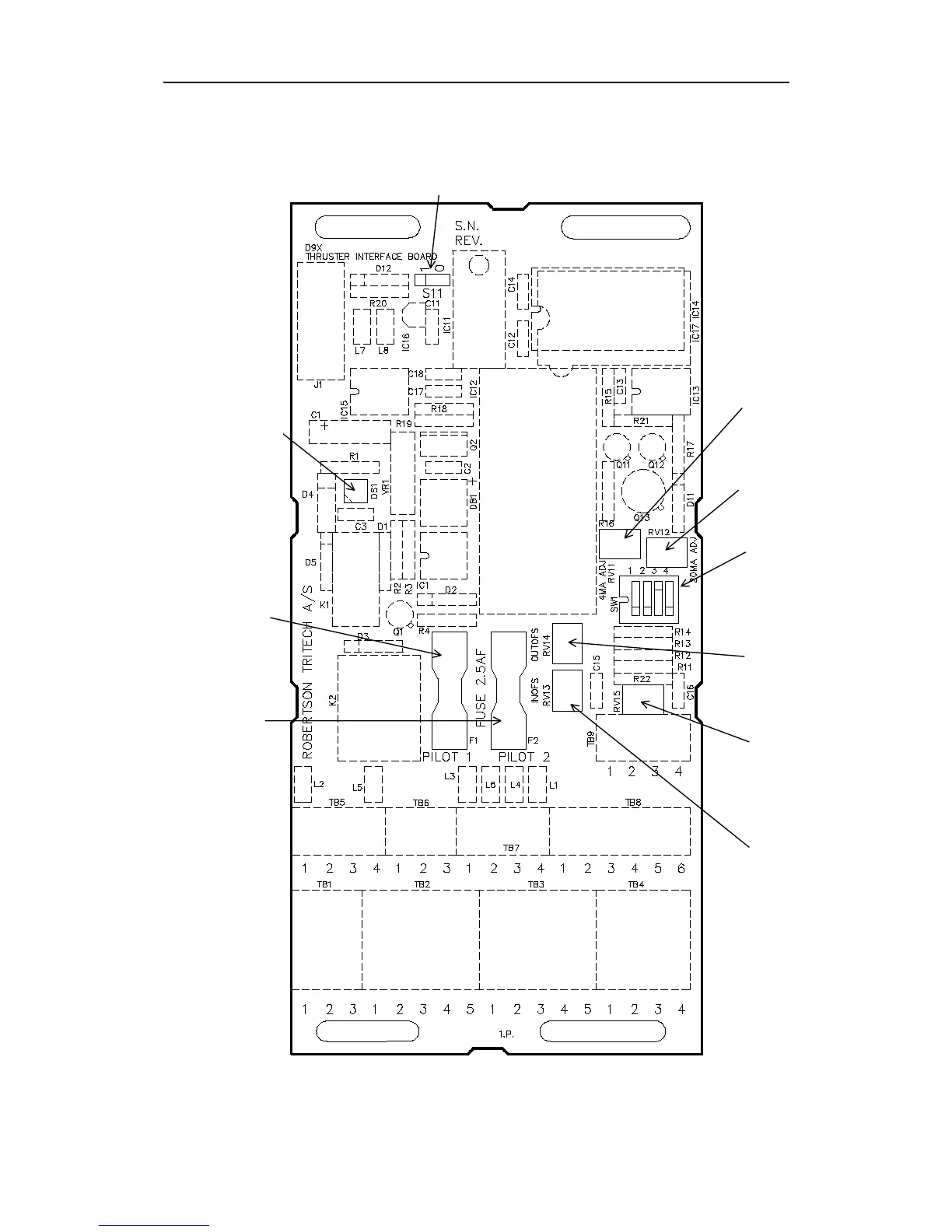

Fig. 5-46
D9X Thruster Interface board, component layout
DS1
15V DC Alarm
supply
DS1
15V DC Alarm
supply
F1
2.5A Quick
15V DC Main
supply
output 1
F2
2.5A Quick
15V DC Main
supply
RV13
Input offset
adjust
RV15
Gain reduction
on input signal
RV14
Output offset
adjust
SW1
Selection of
output signal
RV12
20mA output
adjust
RV11
4mA output
adjust
