4.9 RF Standard Transmission Link
Fig. 4-6

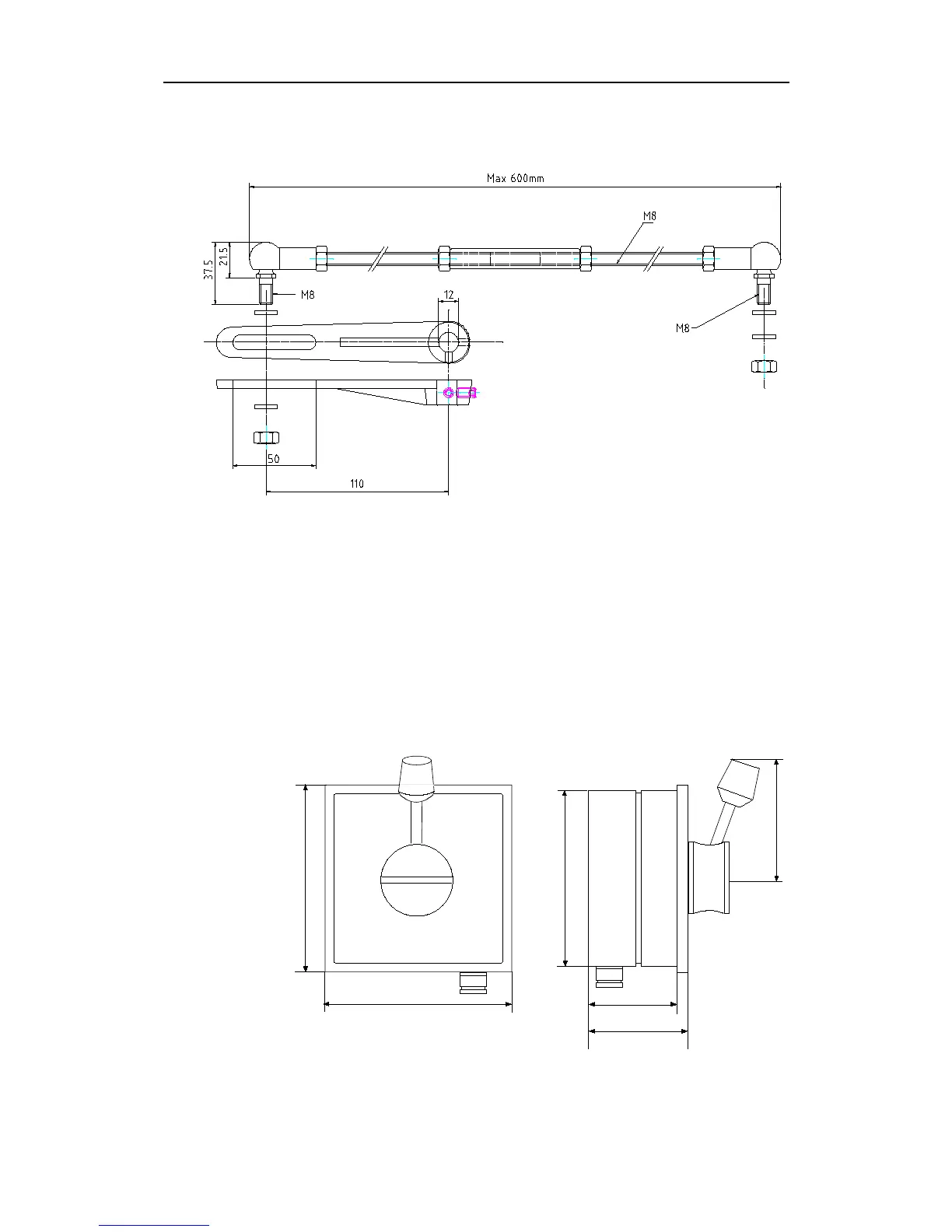

RF Standard Transmission Link - dimensions
4.10 S9 Steering Lever
Dimensions:............................ See Fig. 4-7.
Protection:...............................IP56
Ambient temperature:........... –25 - +70°C
Safe distance to compass: .....0.3 m
Max. inductive load:.............. 4A/24V DC, 0.6A/110V DC,
0.3A/220V DC, 10A/AC
137 (5.40")
144 (5.67")
Panel cut-out:138x138 (5.44")
78 (3.1")
70 (2.75")
144 (5.67")
95 (3.75")
Fig. 4-7
S9 Steering Lever - Dimensions
