Simrad Robertson AP9 Mk3 - Page 183

Drawings
20169223D 8-7
MAGNETIC COMPASS
CD109
AP9MK3 CONTROL UNIT
J1 J2 J3 J4 J5
F200-40
NAV. RECEIVER
NOTE
JUNCTION BOX
D9X PCB'S
RF14XU
GND
SOLENOID IISOLENOID I
24VDC MAINS
24VDC ALARM
+ +
RGC SIGN. INTERFACE UNIT
GYRO COMPASS
SCREEN TERMINATION BOARD
NOTE 2
NOTE !: If cables are more than 10 meters,
only the TX side screen is grounded. (Nav. receiver & RGC Sign. Interf.)
+/-10V
GND
ST1 ST2 ST3 ST4 ST5 ST6 ST7 ST8

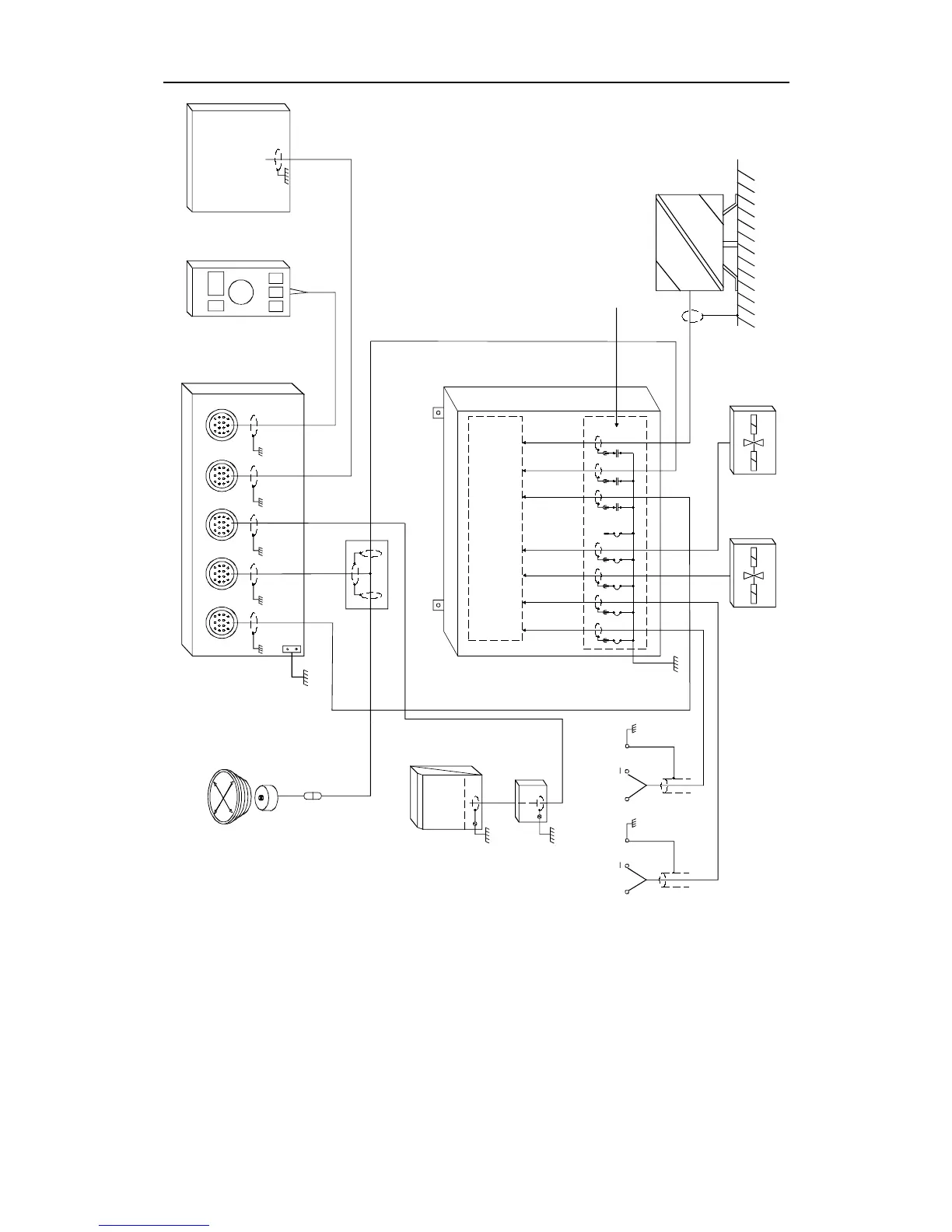

Fig. 8-6
Screen Termination
