Menu description
103
850--164186 A
Display Gain
The Display Gain button is located in the Display index menu
and activates the corresponding submenu.

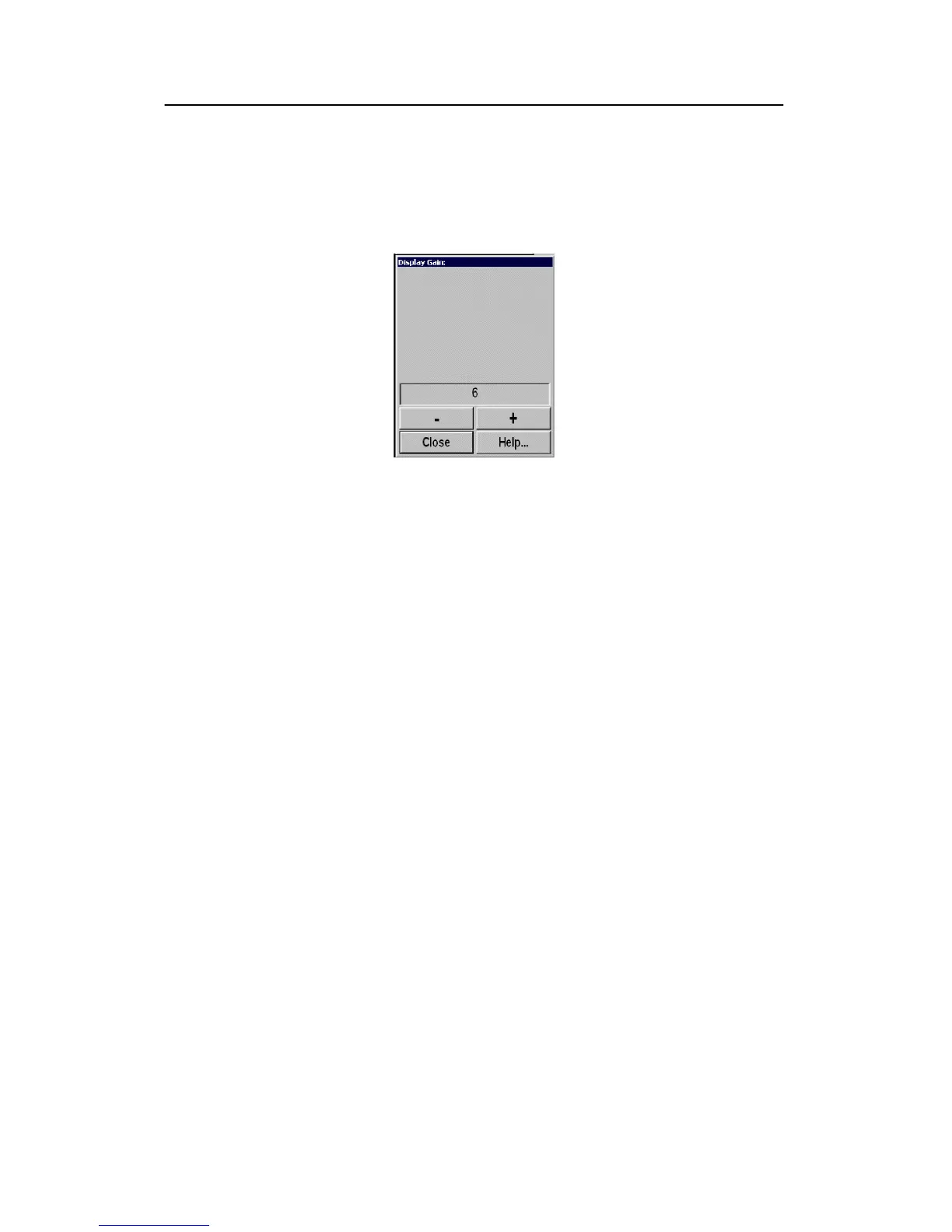

Figure 86 - Display
gain submenu
The Display Gain increases or decreases the presentation of the
echo colours in the display unit. In order to adjust the receiver
gain, refer to the individually gain in the horizontal and vertical
index menus.
