Simrad SP70
128
850--164186 A
Compass Card
The Compass Card button is located in the Cosmetics index menu
and has an on/off function.

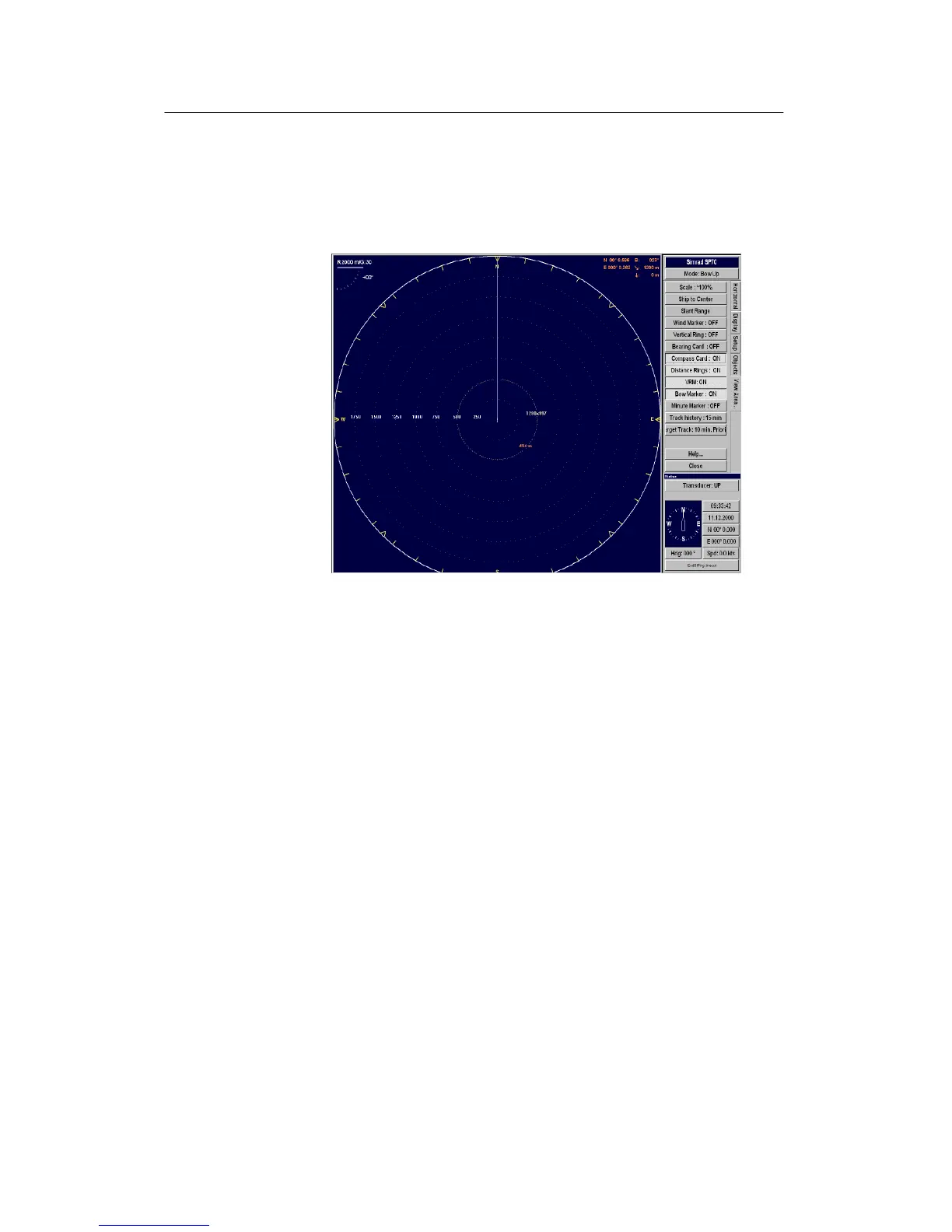

Figure 123 - Compass Card ON
The Compass Card is shown as short lines for each 10th degree
along the outermost circle of the sonar view. A triangle symbol
indicates each 45th degree. It has labels indicating North, East,
South and West. It is updated when the heading of own ship has
changed more than 1 degree, if the display mode is Bow Up.
