Modes of operation
23
850--164186 A
2.12 True Motion / Vertical

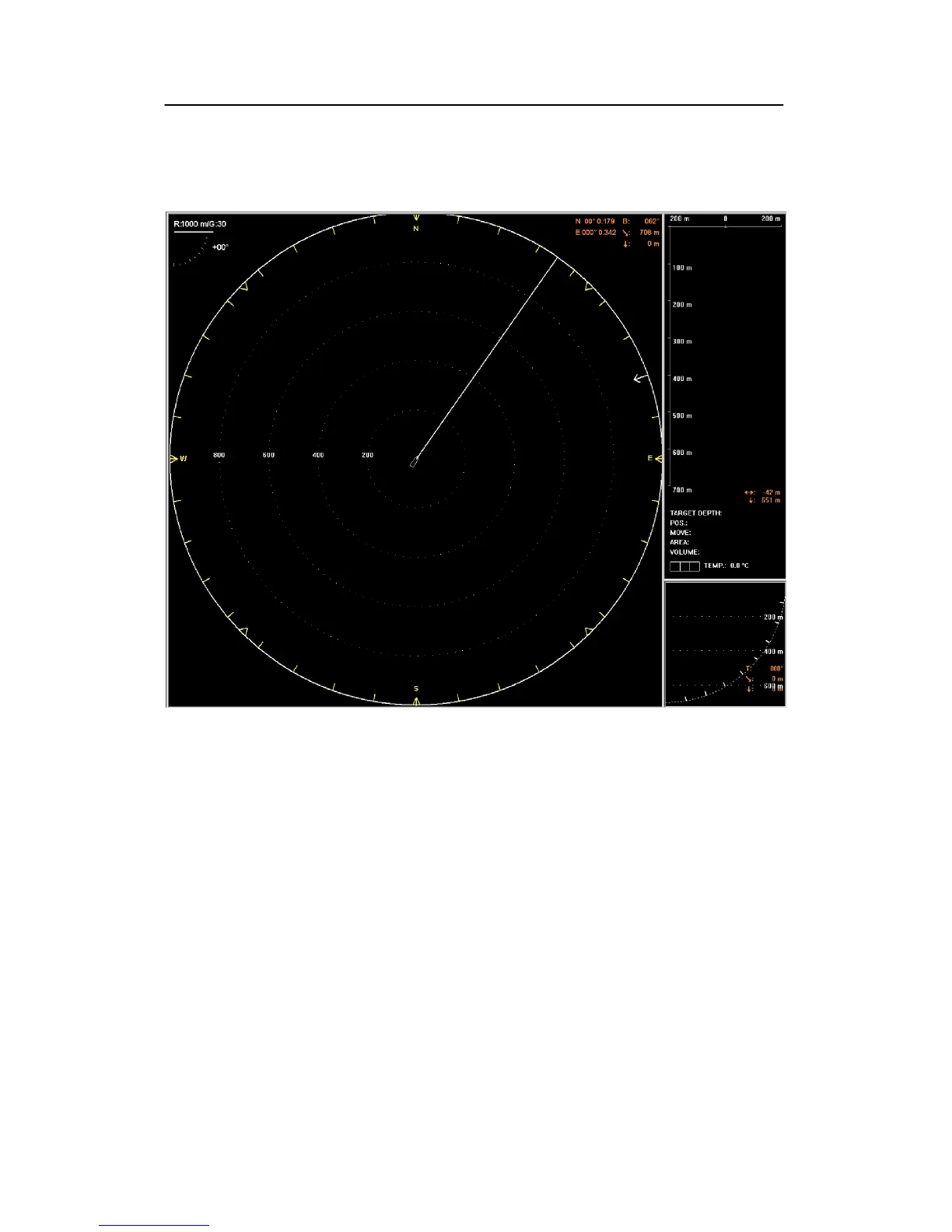

Figure 16 - True Motion / Vertical
When the True Motion / Vertical mode is selected, the picture is
divided into three sections; where the left side is a true motion
presentation equal to the true motion presentation described
previously.
The upper part on the right-hand side is a catch data
presentation, while the lower part is a 60° or 90° (optional) vertical
slice presentation.
