Cursor
The cursor is used for on screen cursor orientation and menu
operation.

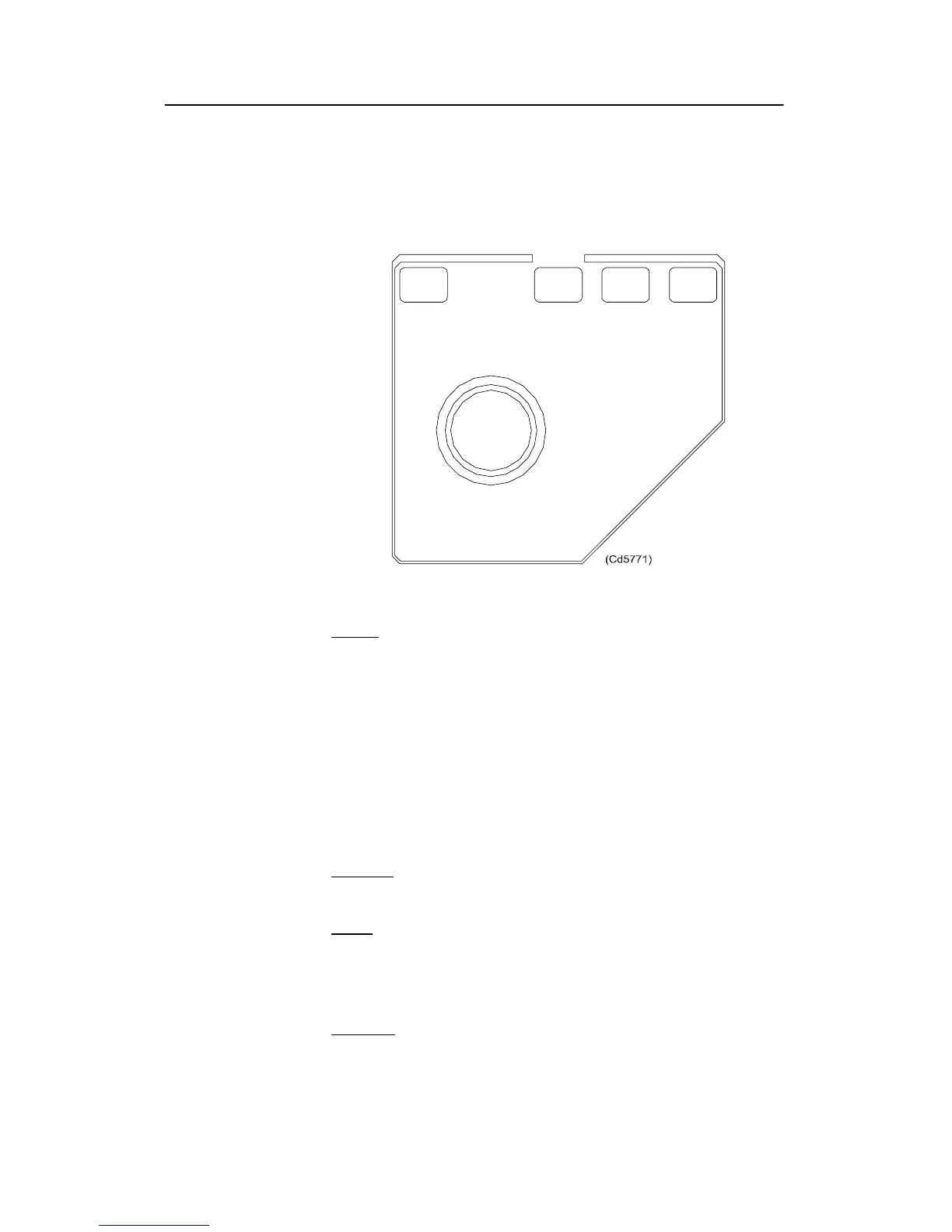

Figure 26 - Cursor and related buttons
CURSOR
SelectMenu
View
Object
SONAR OPERATING PANEL
MENU
The Menu button is used for selection between Menu or Full Screen
presentations. When the main menu is displayed, the echo
presentation will be reduced correspondingly. In full screen
presentation, the full dimension of the screen are used for the echo
presentation.
When the full screen echo presentation is displayed, the cursor
may be used to activate the menu field by moving it to the left or
right extremes of the screen. Moving the cursor outside the menu
field will hide the menu.
→ Menu- and Full Screen Presentation, see page 42.
SELECT
The Select button is used to execute a selection.
VIEW
The View button activates the view menu for the selected display
window.
→ View menu, see page 72.
OBJECT
The Object button activates the object menu for the selected
display window.
→ Object menu, see page 70.
