Echosounder index menu
The Echosounder index menu is only shown in the
180_/Echosounder mode.

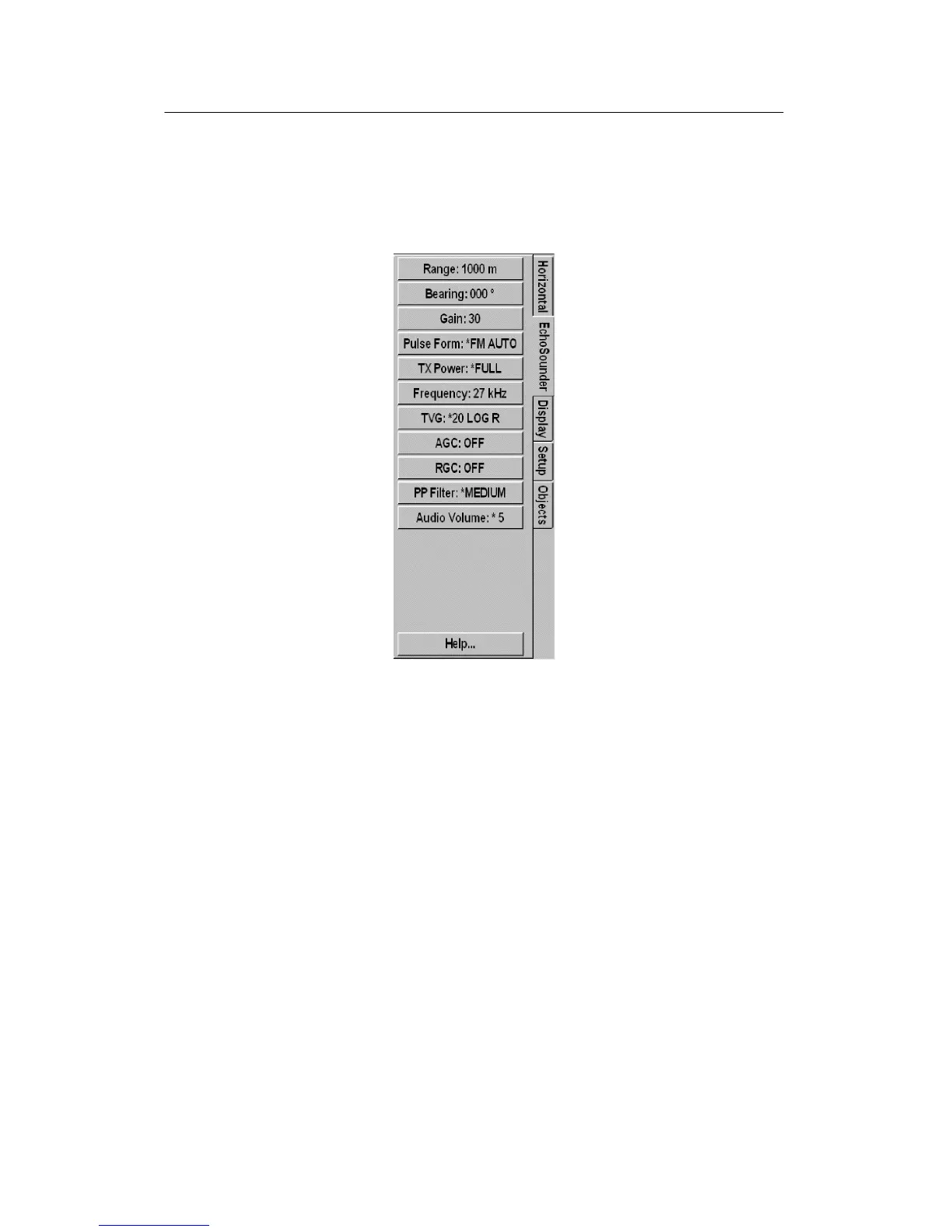

Figure 48 -
Echosounder index
menu
The following parameters are available:
→ Range, see page 87.
→ Bearing, see page 89.
→ Gain, see page 91.
→ Pulse Form, see page 92.
→ Tx Power, see page 94.
→ Frequency, see page 96.
→ TVG, see page 97.
→ AGC, see page 98.
→ RGC, see page 99.
→ PP Filter, see page 100.
→ Audio volume, see page 101.
• Help - Displays the information you are now reading.
