Operation
39
850--164186 A
Various
The buttons grouped under various are: Zoom, Record, Mute and
Off Centre.

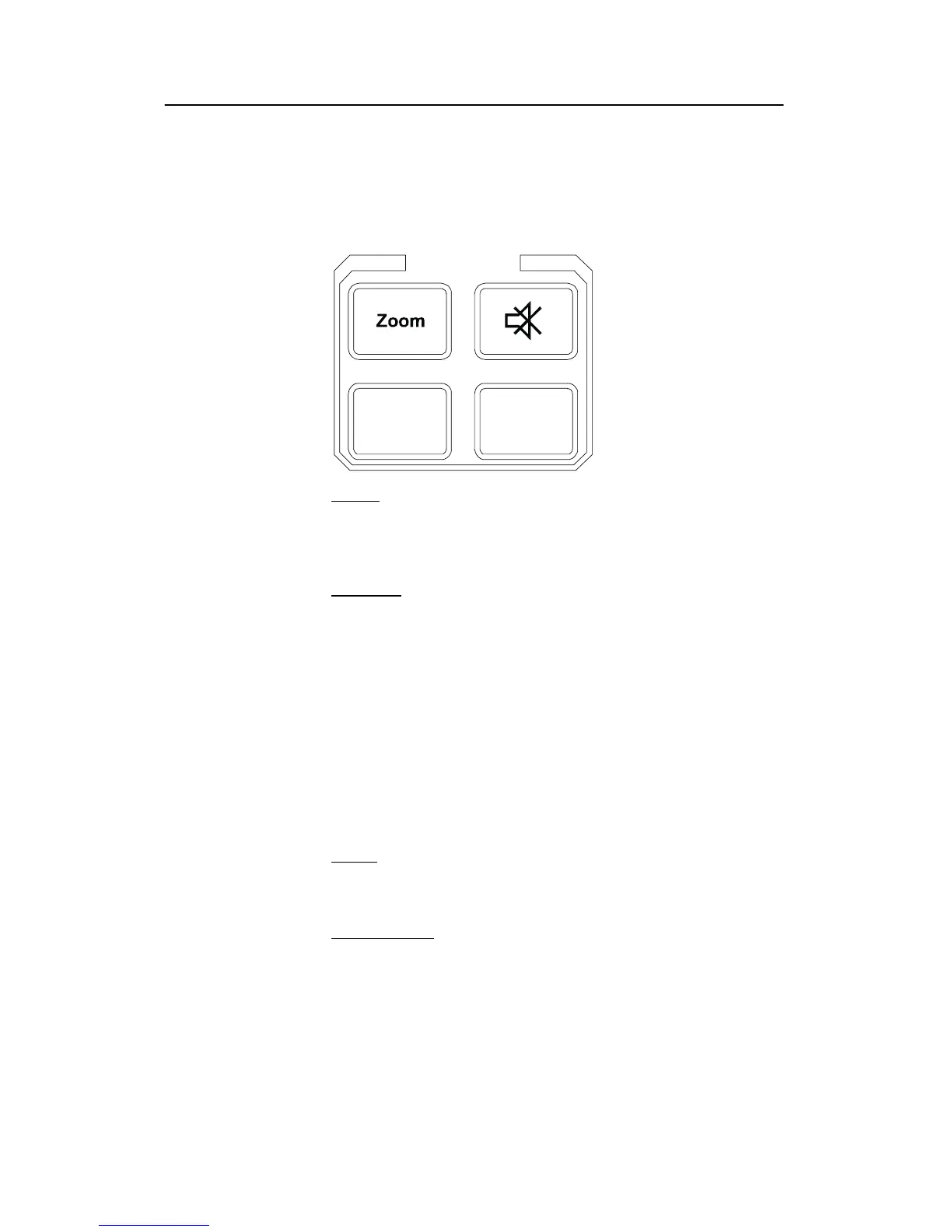

Figure 28 -
Various
buttons
VARIOUS
Off
Centre
Record
(CD5353)
ZOOM
The zoom function magnifies an area of the display by positioning
the cursor in its centre and pressing the Zoom button. The zoom
button works as a toggle switch for on/off of the zoom function.
RECORD
The record function is used for storing either a sequence or single
display picture. Sequential or single storage options are pre-set in
the Store/Recall index menu.
→ For Store/Recall, see page 67.
If sequential store mode is selected, Recordis used for starting and
stopping the storage. If single shot storage is selected a new
picture is storage each time the button is pressed.
When Recall is selected in the menu, the Record button is used for
starting and stopping the recorded sequence or for the selection
of new individual picture. When replay of a sequence is stopped
the last picture is “frozen” on the display.
MUTE
The Mute button is used as to activate and deactivate the echo
audio channel and to acknowledge audible alarms.
OFF
CENTRE
The Off Centre function moves the own vessel symbol from the
centre, to an other pre-selected location on the display adjusting
the presentation to fill the screen accordingly.
