2.11 Bow Up / Vertical

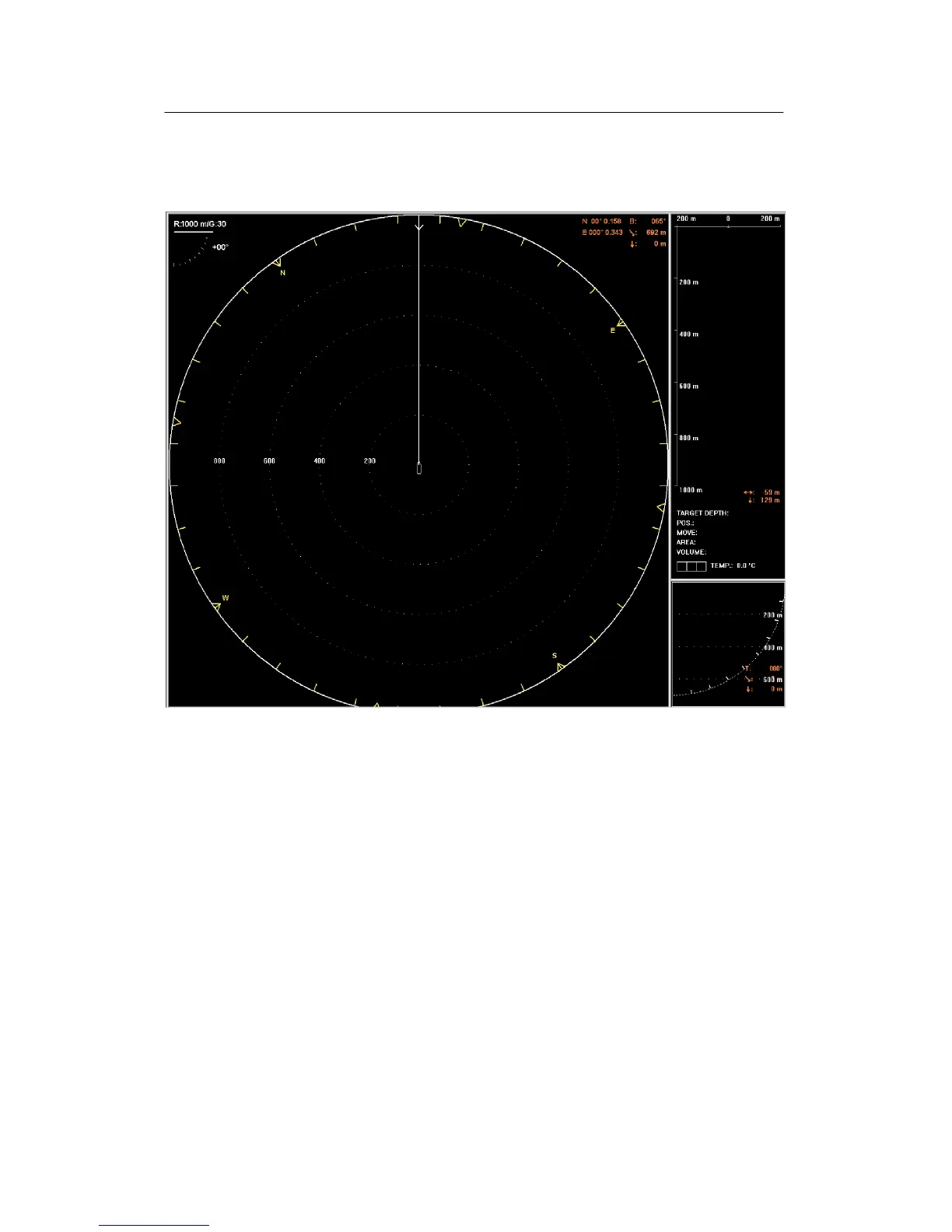

Figure 15 - Bow Up / Vertical
When the Bow Up / Vertical mode is selected the picture is
divided into three sections; where the left side is a bow up
presentation equal to the bow up presentation described
previously.
The upper part on the right-hand side is a catch data
presentation, while the lower part is a 60° or 90° (optional) vertical
slice presentation.
