Vertical index menu
The Vertical index menu is only shown in modes with a vertical
slice function. All relevant settings, except the TX Power,canbe
selected separately for the vertical modes independent of the
horizontal settings. When any vertical settings are selected in one
mode, these settings will be applied to all vertical modes.

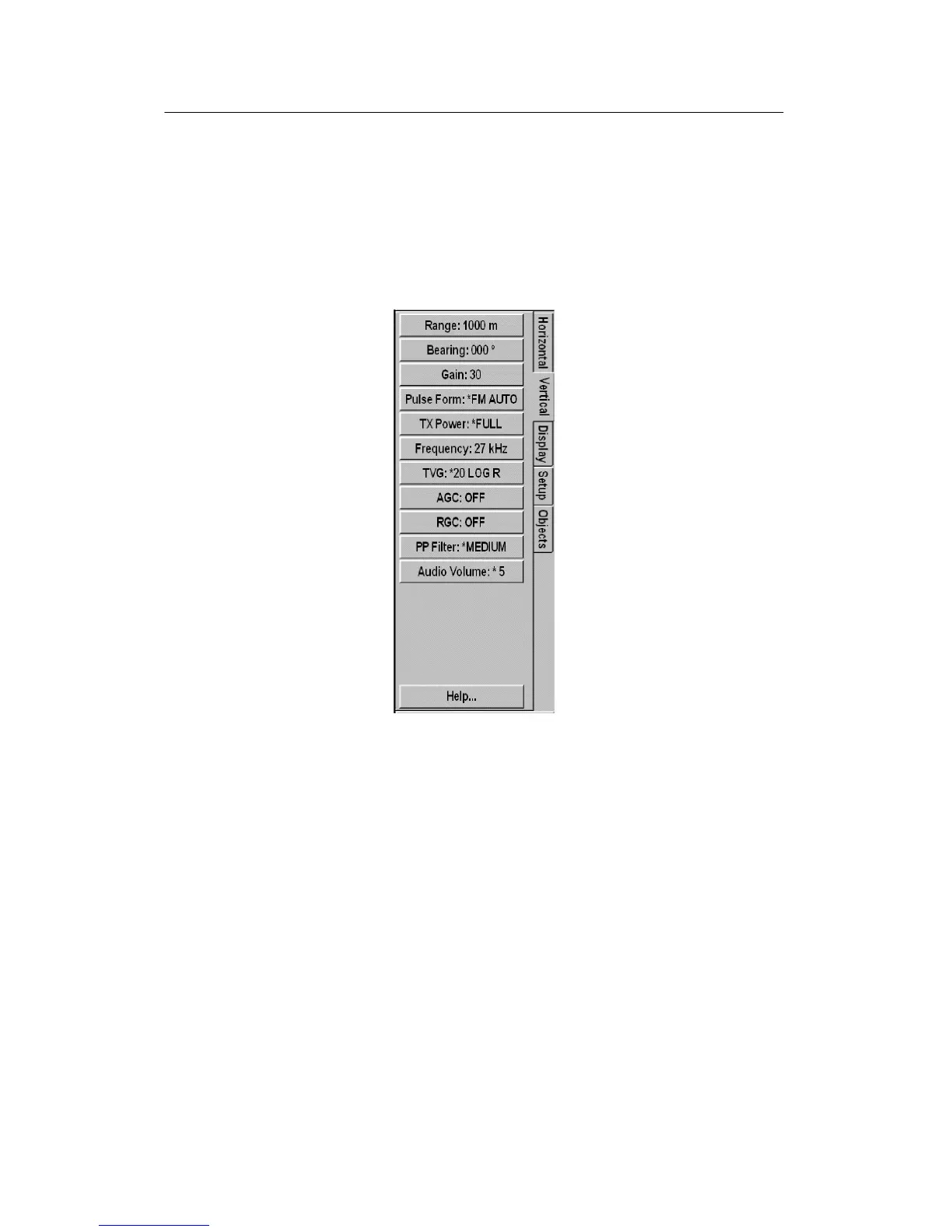

Figure 44 - Vertical
index menu
The following parameters are available:
→ Range, see page 87.
→ Bearing (Vertical), see page 90.
→ Gain, see page 91.
→ Pulse Form, see page 92.
→ Tx Power, see page 94.
→ Frequency, see page 96.
→ TVG, see page 97.
→ AGC, see page 98.
→ RGC, see page 99.
→ PP Filter, see page 100.
→ Audio volume, see page 101.
