System Test index menu
The System Test index menu is activated by the Test menu button
in the Setup index menu.

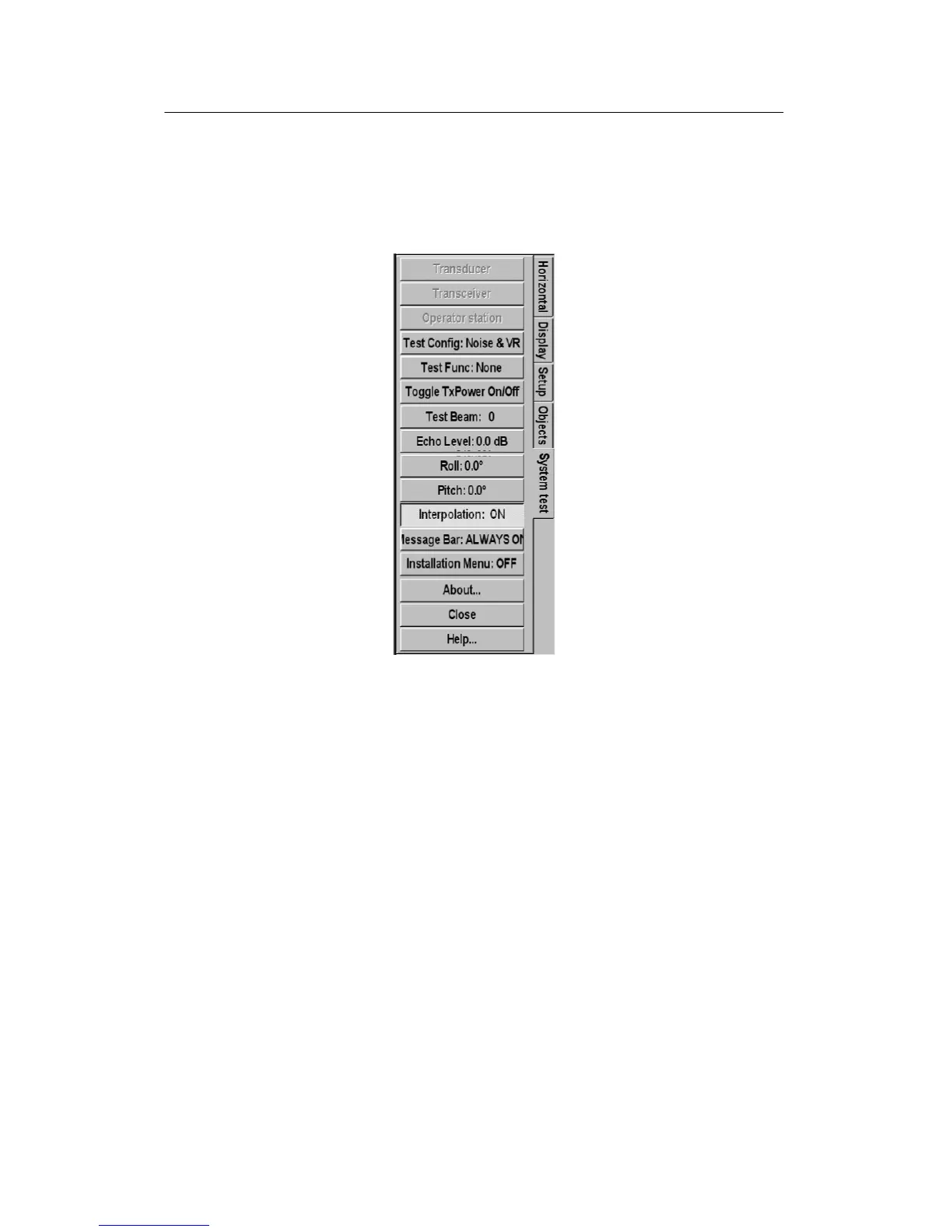

Figure 53 - System
Test index menu
The following parameters are available:
• Test Config. - Only to be activated by qualified service
engineers.
• Test Func. - Only to be activated by qualified service
engineers.
• Toggle TxPower On/Off - Only to be activated by qualified
service engineers.
• Test Beam - Only to be activated by qualified service
engineers.
• Echo Level - Gives readout of the Echo Level for the selected
Audio beam.
• Roll/Pitch - Gives readouts of the Roll and Pitch angles from
the optional Stabilisation sensor at the transmission moment.
• Interpolation - Gives a more realistic presentation of the echos.
→ Message bar, see page 81.
• Installation menu - Opens the Installation menu bar at the top
of the display.
• Close - Closes this index menu.
• Help - Displays the information you are now reading.
