Simrad SP70
14
850--164186 A
2.4 True Motion

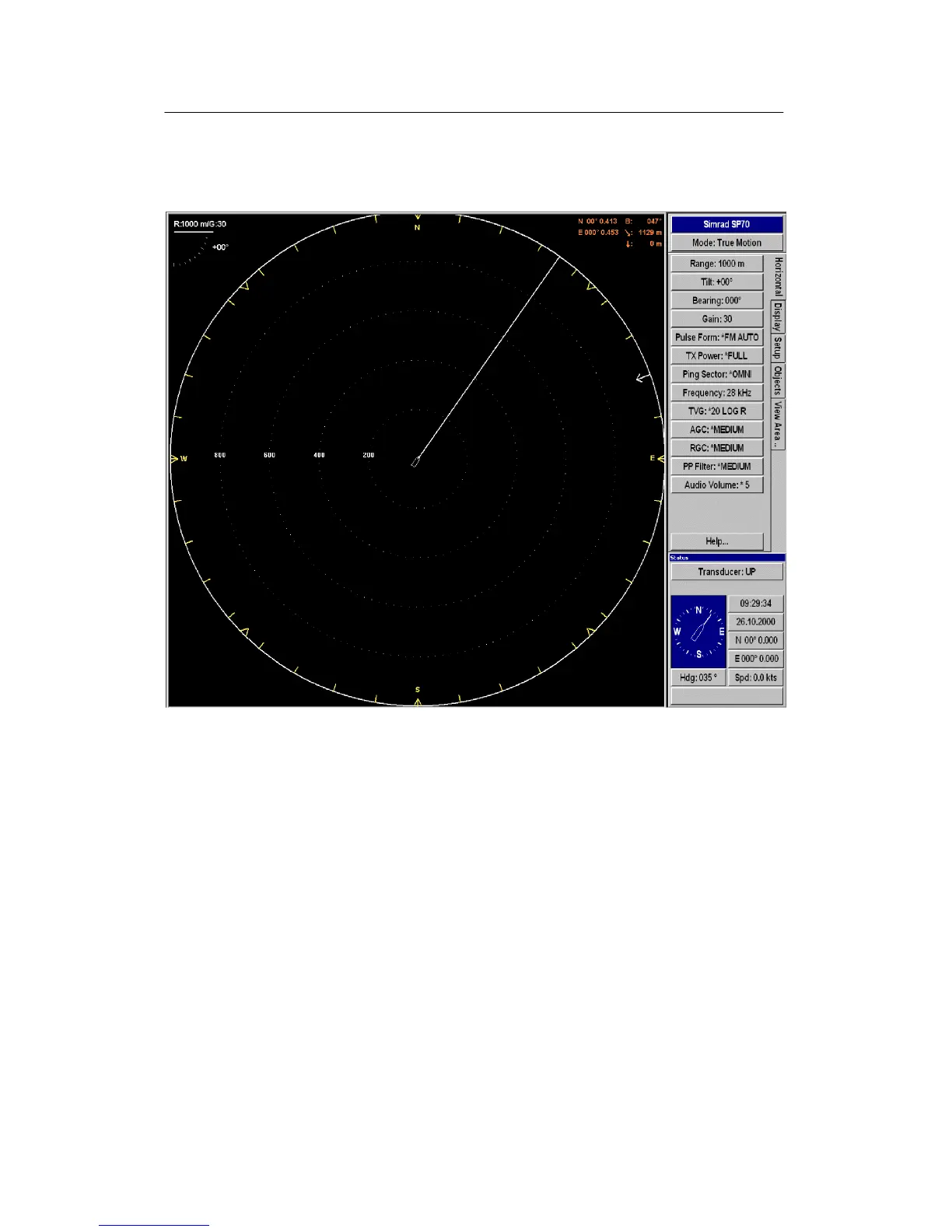

Figure 8 - True motion
When the True Motion mode is selected, the picture is locked to
a geographical position, where the vessel moves around the
screen according to its course and speed. All echoes are always in
correct position relative to the vessel, and their movements on the
screen will be true representation of the movements of the targets
through the water.
When the vessel symbol reaches the screen edge, it will
automatically be moved to the centre or position determined by
the Off Centre button. This position is reset to the screen centre
whenever the mode is changed.
When selecting Target Track, the target will automatically be
moved to the screen centre.
