Simrad SP70 User Manual

Menu description
53
850--164186 A
Sonar type

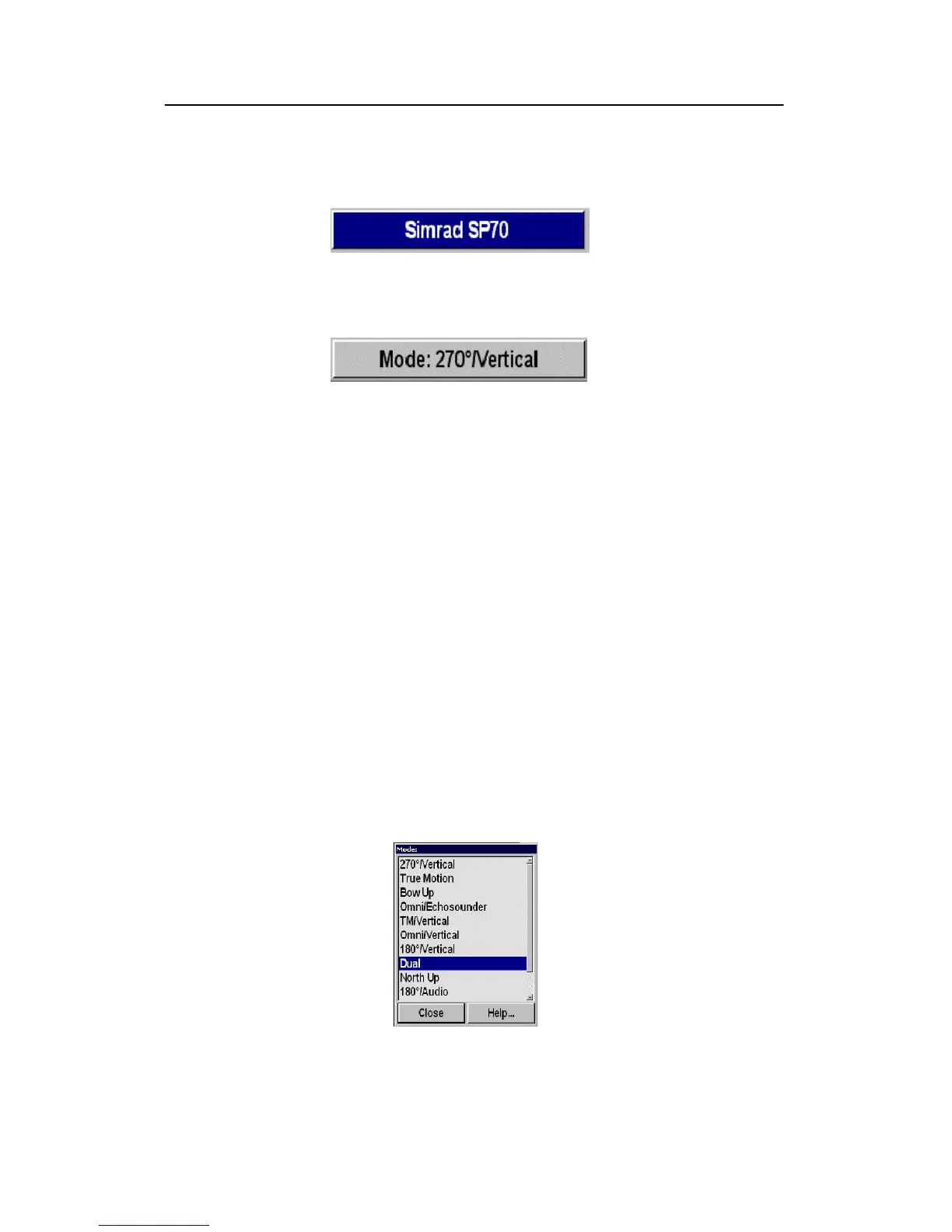

Figure 38 - SP70 button
The upper menu button is only a sonar type indicator.
Mode selection
Figure 39 - Mode b utton
The standard SP70 sonar with 60° tilt, has eight different
operational modes. If the optional 90° tilt version is installed, four
extra display modes will be available. These four display modes
are indicated as “option” in the reference list below. All the
various display modes are described in section “Modes of
operation”, which are page referenced in the list.
→ Bow Up, see page 12.
→ North Up, see page 13.
→ True Motion, see page 14.
→ 180° / Audio, see page 15.
→ 180° / Echosounder (option), see page 16.
→ 180° / Vertical (option), see page 17.
→ 270° / Vertical, see page 19.
→ Omni / Vertical (option), see page 20.
→ Omni / Echosounder (option), see page 21.
→ Bow Up / Vertical, see page 22.
→ True Motion / Vertical, see page 23.
→ Dual, see page 24.
To select the MODE submenu, move the cursor to the MODE
button in the menu, and press the Sel ect button on the operating
panel.
Figure 40 - Submenu for
Mode selections
The four upper modes in the submenu may be select directly with
the four Mode buttons on the operating panel. Note that the
contents of these four modes may be changed to any of the
available modes.
