Slant Range/True Range
The Slant Range/True Range button is located in the Cosmetics
index menu.
Slant Rang e
Figure 119 - Slant Range
In the Slant Range presentation the distance to the target is
measured along the tilt angle.
True Range
Figure 120 - True Range
In the True Range presentation the echo distance is the distance
which the vessel must sail in order to come on top of the target.
Target
(CD5949)
Tilt angle
True range
Slant range

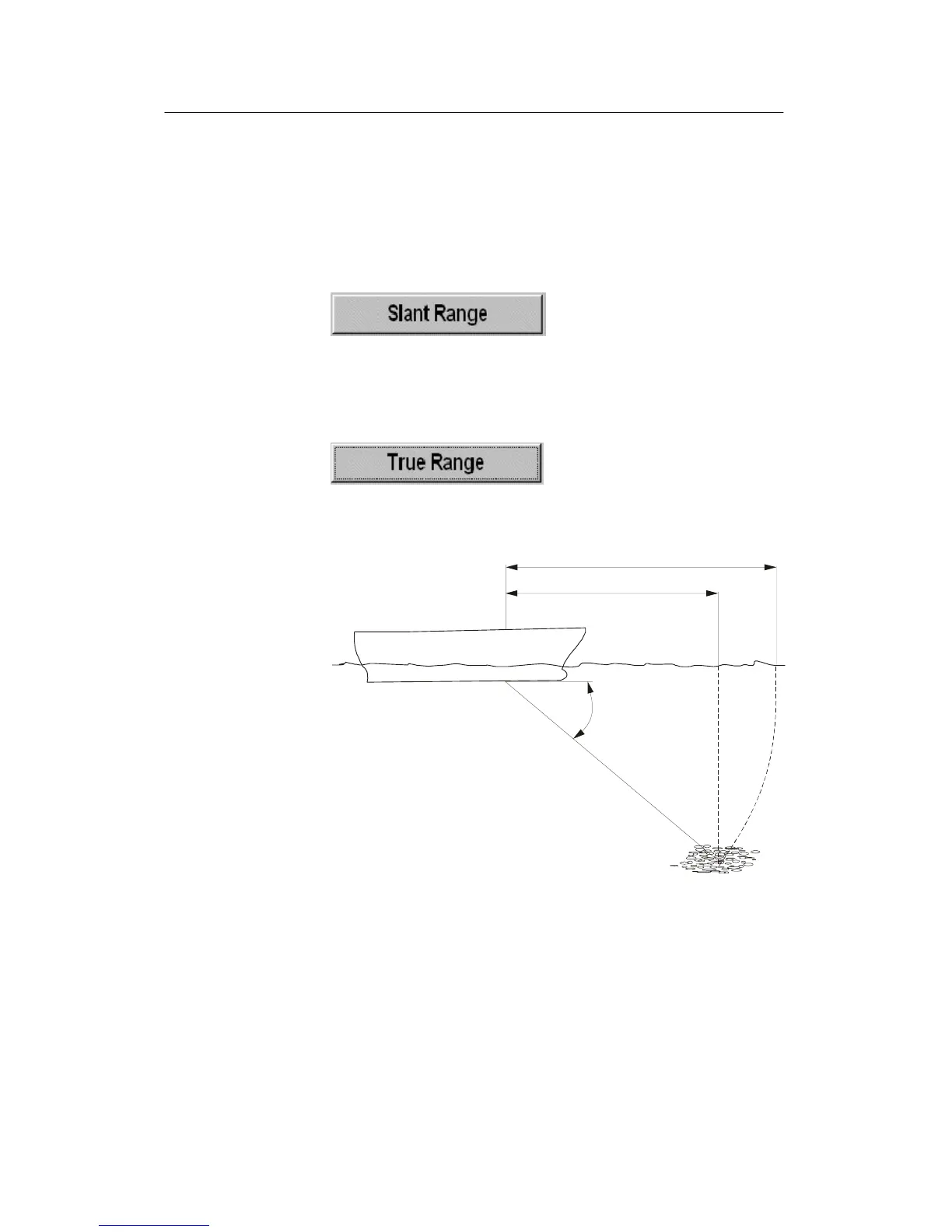

Figure 121 - Tilt angle, Slant and True ranges.
