Section04ENGINE
Subsection 06 (COOLING SYSTEM)
GENERAL
CAUTION: All hoses and fittings of the cooling
system have calibrated inside diameters to as-
sure proper cooling of the engine. Always re-
place using appropriate Bombardier part num-
ber.
CAUTION: Never modify cooling system ar-
rangement, otherwise serious engine damage
could occur.
Refer to exploded view for coolant flow in circuit.

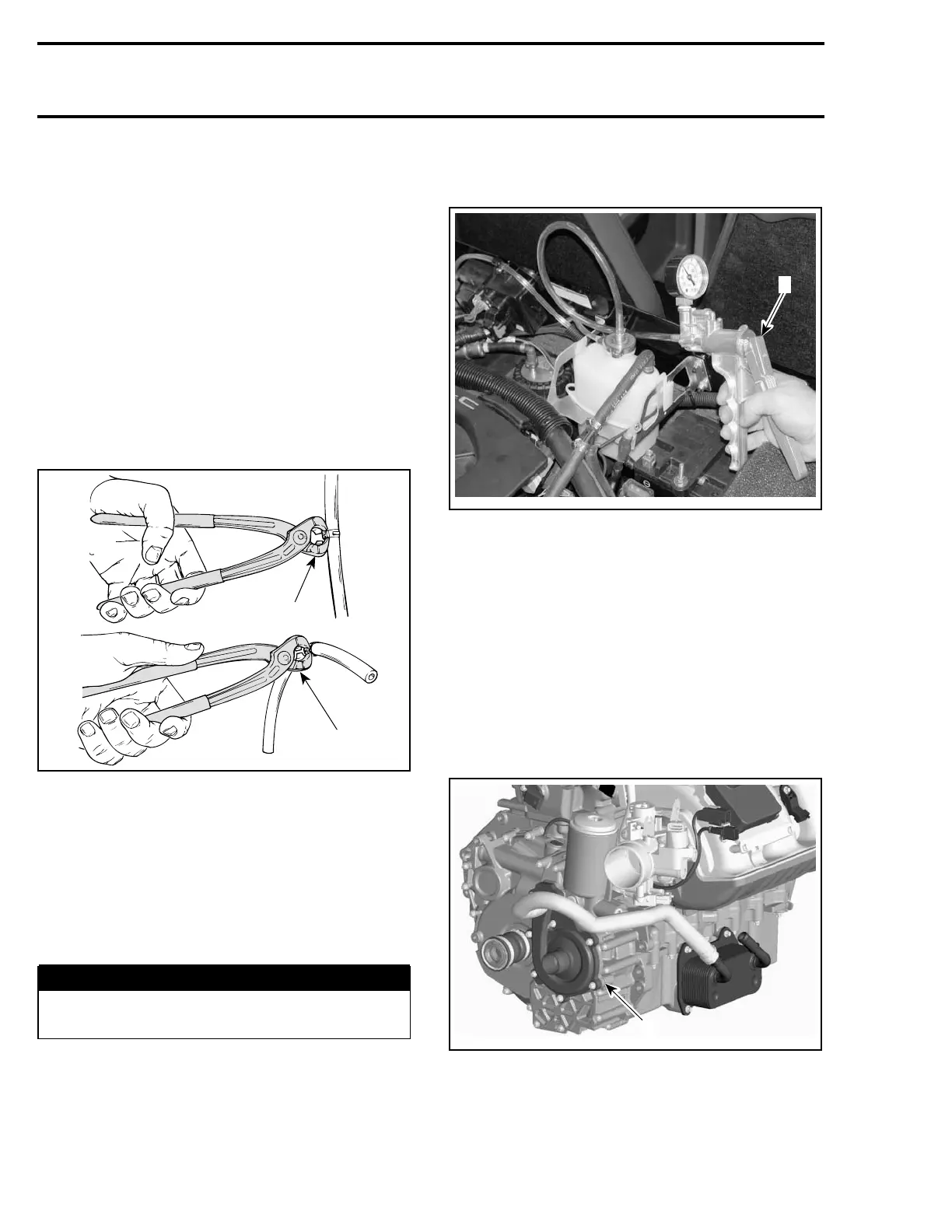

Clamp
To cut or secure non-reusable Oetiker clamps of
cooling system hoses, use pliers (P/N 295 000
070).
1
F01B2KA
2
1. Cutting clamp
2. Securing clamp
PRESSURE CAP
Check if cap no. 1 pressurizes the system. Oth-
erwise, install a new 110 kPa (16 PSI) cap (do not
exceed this pressure).
COOLING SYSTEM LEAK TEST
WARNING
To prevent burning yourself, do not remove
the coolant reservoir cap if the engine is hot.
Remove coolant reservoir cap no. 1.
Install test radiator cap (P/N 529 035 991). Pres-
surize all system through coolant reservoir to
110 kPa (16 PSI).
NOTE: Itisnotrequiredtouseahosepincheron
overflow hose with this test cap.
A34C1IA
1
1. Pressure pump (P/N 529 021 800)
Check all hoses, engine, radiator, heat exchangers
and oil cooler for coolant leaks. Spray a soap/wa-
ter solution and look for air bubbles.
Remove test pressure cap.
Reinstall coolant reservoir cap no. 1.
INSPECTION
Check general condition of hoses and clamp tight-
ness.
Check the weep hole if there is oil or coolant.
R1503motr317A
1
1. Weep hole
NOTE: Flowing coolant indicates a damaged ro-
tary seal. Oil out of the weep hole indicates a non
working oil seal.
