Section07ELECTRICALSYSTEM
Subsection 03 (ELECTRIC STARTER)
REMOVAL
WARNING
Short circuiting electric starter is always
a danger, therefore disconnect the battery
ground cable before carrying out any kind
of maintenance on starting system. Do not
place tools on battery.
NOTE: For starter drive ass'y servicing, refer to
PTO HOUSING.
Disconnect BLACK cable ground connection from
battery.
WARNING
Always disconnect ground cable first and re-
connect last.
Disconnect RED cable connection from battery.
Remove the muffler. Refer to EXHAUST SYS-
TEM.
Remove the heat shield.
Disconnect red cable from starter. Remove retain-
ing screws no. 1 from starter.
Pull starter no. 3 out.

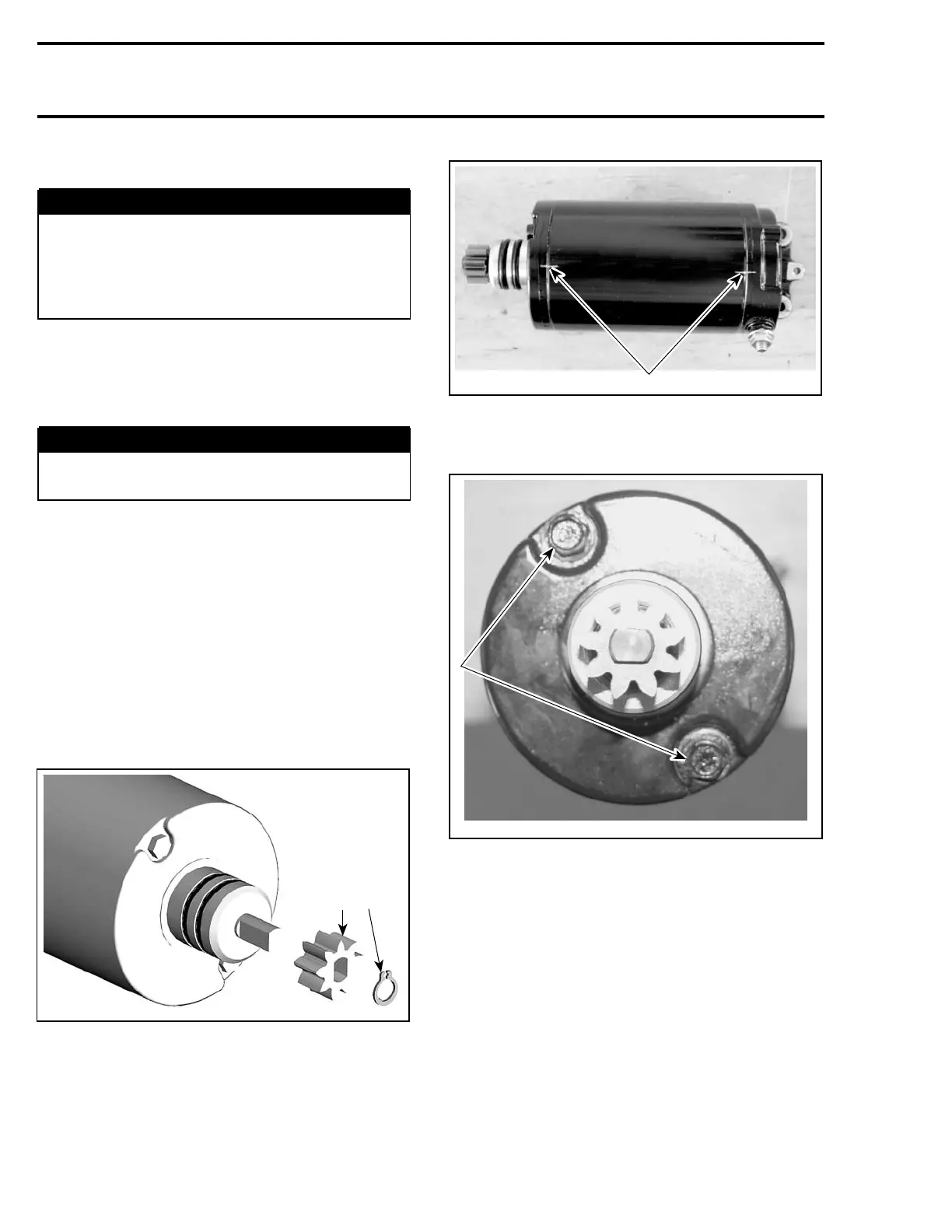

DISASSEMBLY
Remove starter gear retaining circlip no. 4,then
starter gear no. 5.
R1503motr311A
21
1. Retaining circlip no. 4
2. Starter gear no. 5
Locate index marks on yoke and end covers.
1
F18H0OA
TYPICAL
1. Index marks
Loosen through bolts.
1
F18H0PA
1. Through bolts
Remove end cover.
Remove thrust washer from armature shaft.
256 Te m plat e
