Section04ENGINE
Subsection 02 (INTAKE SYSTEM)

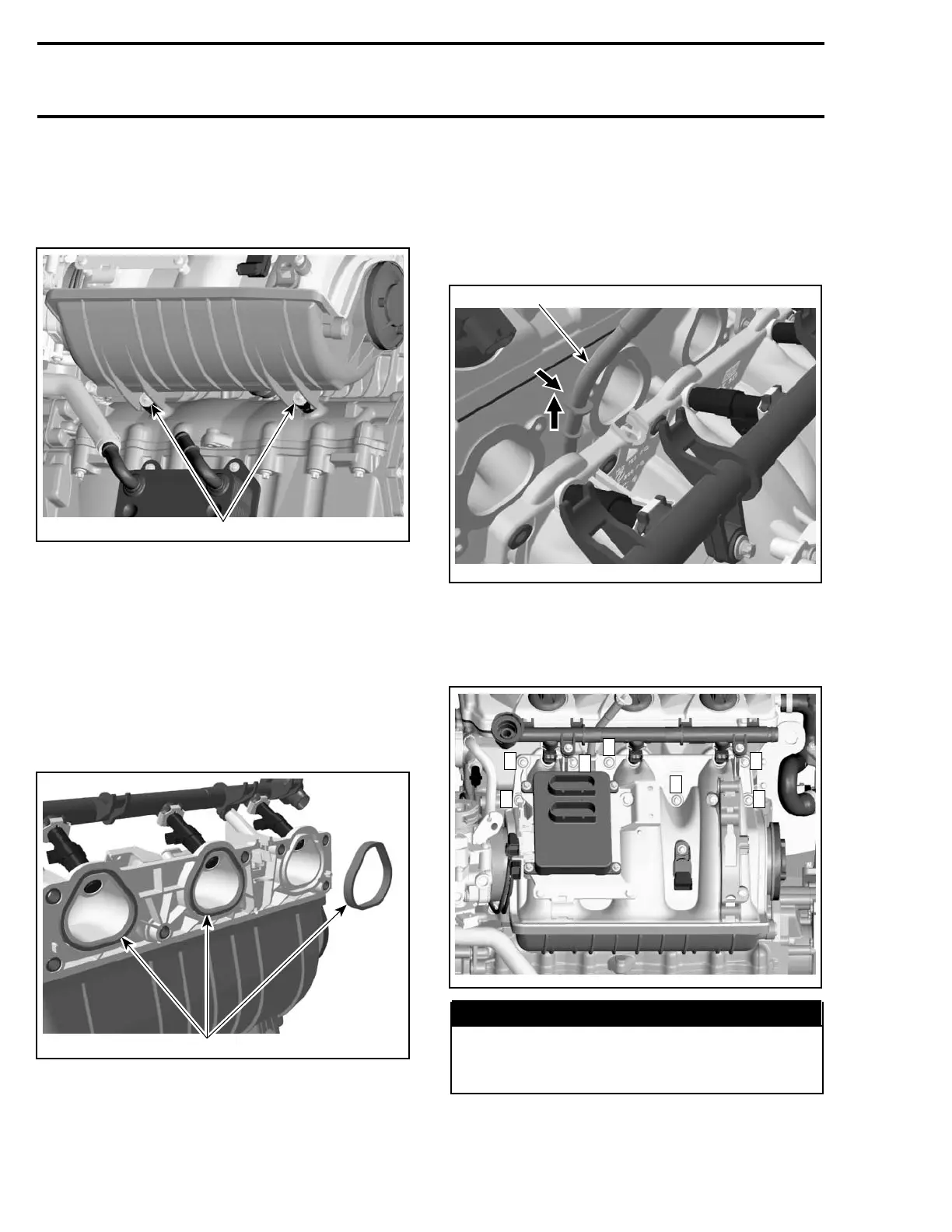

Remove intake manifold retaining screws and
push the oil dipstick tube out of the manifold slot.
Lift intake manifold up to pull it out of the mounting
brackets.
1
R1503motr297A
1. Mounting brackets
Remove the intake manifold from engine.
NOTE: The flame arrester in intake manifold is
maintenance free.
INSTALLATION
Air Intake Manifold
Ensure that all gaskets are properly installed and
in a good condition.
1
R1503motr62A
INTAKE MANIFOLD
1. Gaskets
First, position intake manifold on front mounting
bracket then push manifold toward engine to then
proceed with rear mounting bracket.
When installing the intake manifold, lift up the oil
dipstick tube a little bit to fit in the slot of the man-
ifold.
R1503motr59B
1
1. Oil dipstick tube
Apply Loctite 243 (blue) on the intake manifold
screws. Torquethemto10N•m(89lbf•in)fol-
lowing the tightening sequence shown.
R1503motr300A
5
4
3
1
2
6
7
WARNING
Always check O-ring for damage such as
deformation at reinstallation. Replace the
O-ring if it is damaged.
