Ski-Doo ELITE SERIES User Manual

Section04ENGINE
Subsection 02 (INTAKE SYSTEM)

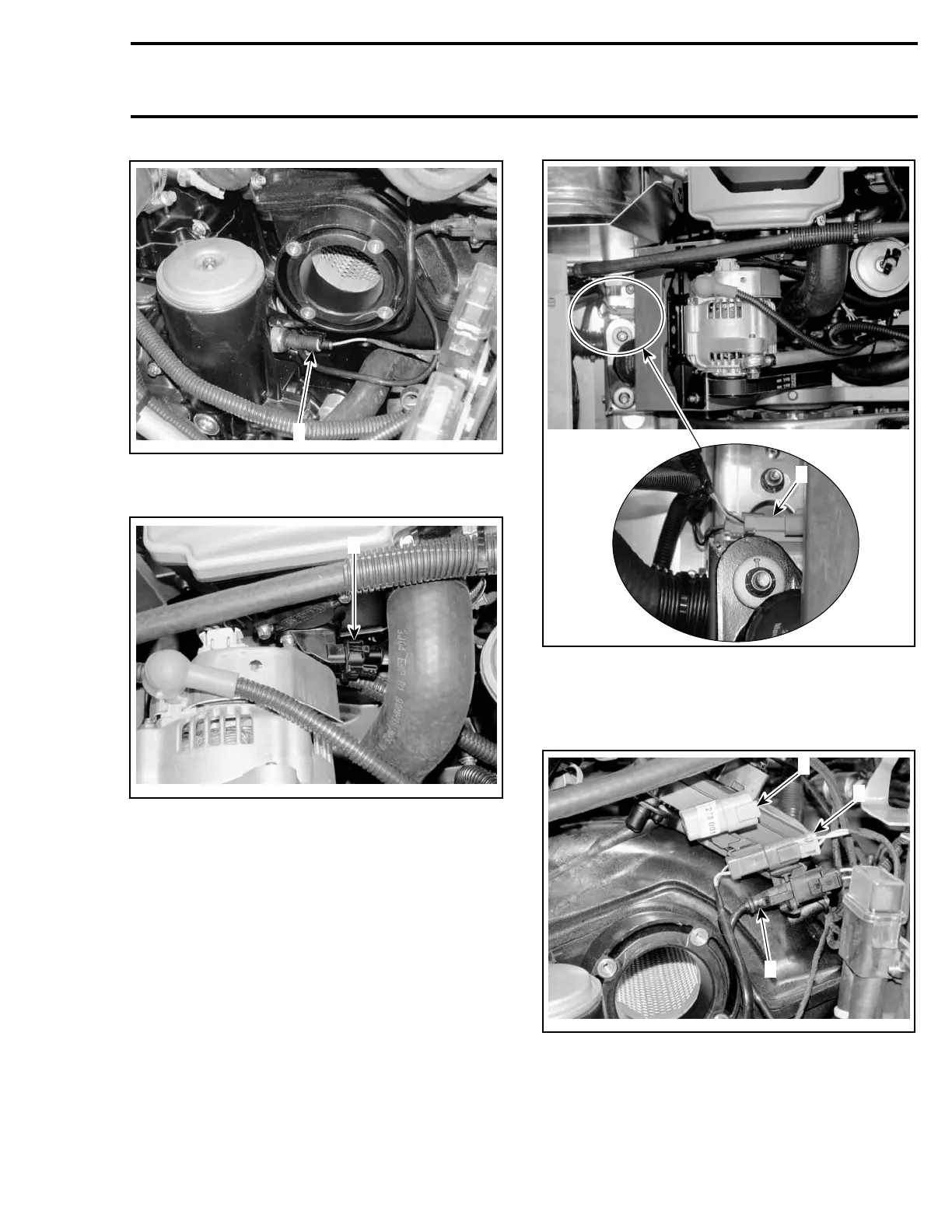

A34C1BA
1
1. OPS connector
Disconnect CAPS connector.
A34C1CA
1
TYPICAL
1. CAPS connector
Disconnect RCTS connector.
A34C14A
1
1. RCTS connector
Pull the connectors for KS and CPS out of the ECU
support. Refer to WIRING DIAGRAMS section.
Disconnect KS, CPS and diagnostic connectors.
A34C1DA
2
3
1
1. KS connector
2. CPS connector
3. Diagnostic connector
Pull EMS wiring harness away from intake mani-
fold.
Te m pla te 75
