Section 08 REAR SUSPENSION
Subsection 01 (SC-10 III SUSPENSION)
GENERAL
There are two identical SC-10 III suspensions in-
stalled on the vehicle. In this section procedure
for mainly one side is given. Procedure for other
side is the same with few differences of compo-
nent locations.
COMPONENT REMOVAL AND
INSTALLATION
Rear Axle

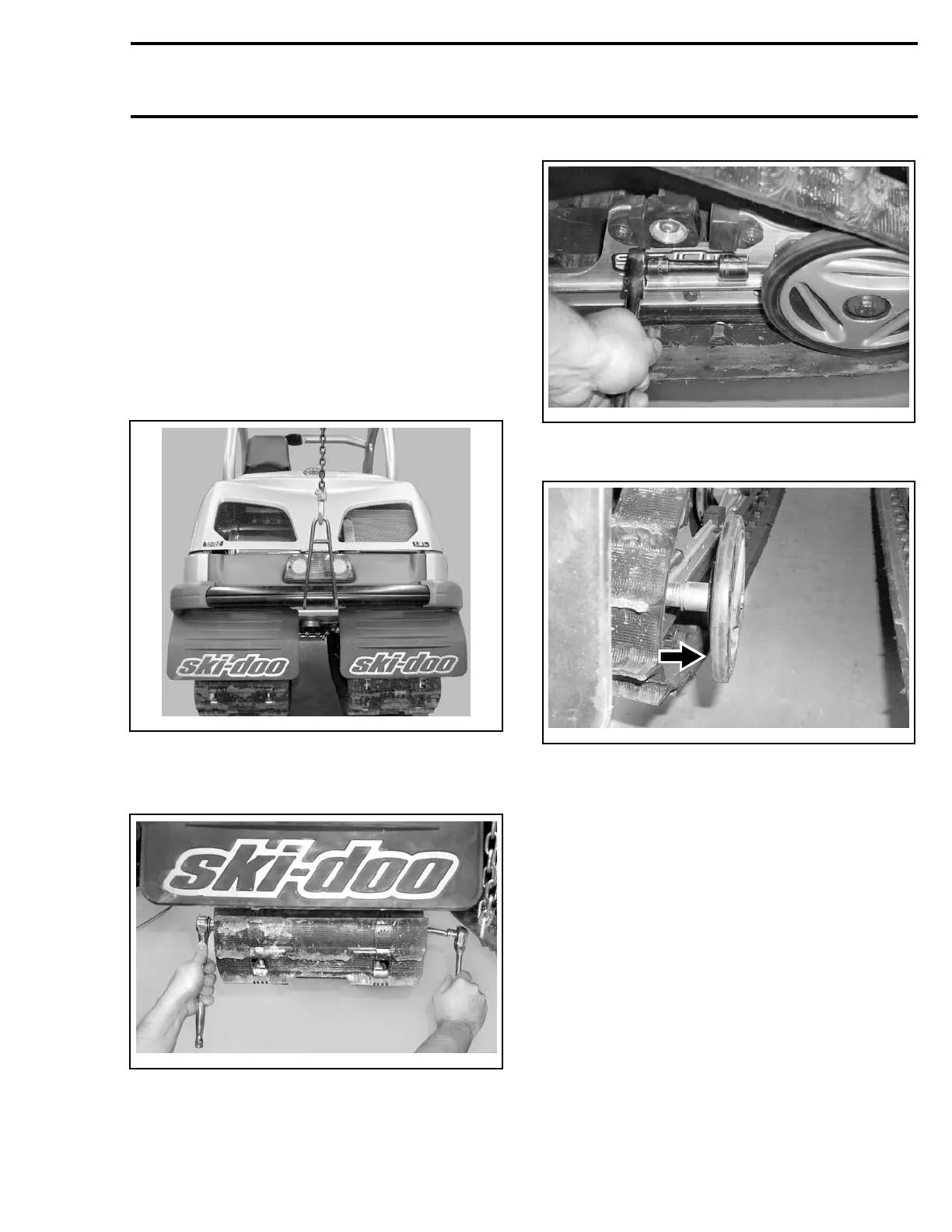

Lift rear of vehicle and support it off the ground.
A34F08A
Remove wheel caps no. 25.
Remove screw no. 4 on rear axle no. 21 on side
of offset wheel no. 14.
A34F09A
Completely loosen track tension.
A34F0AA
Pull out rear axle from opposite side of offset inner
wheel.
A34F0BA
At assembly, align spacer hole with adjusting bolt.
Make sure to reinstall washer on each side of run-
ner.
Rear Shock
Lift rear of vehicle.
Remove nut no. 26 on top end of shock no. 23.
Te m pla te 267
