Section 08 REAR SUSPENSION
Subsection 01 (SC-10 III SUSPENSION)
SHOCK ABSORBER INSPECTION
NOTE: Shocks installed on this vehicle are painted
blackordarkgray.

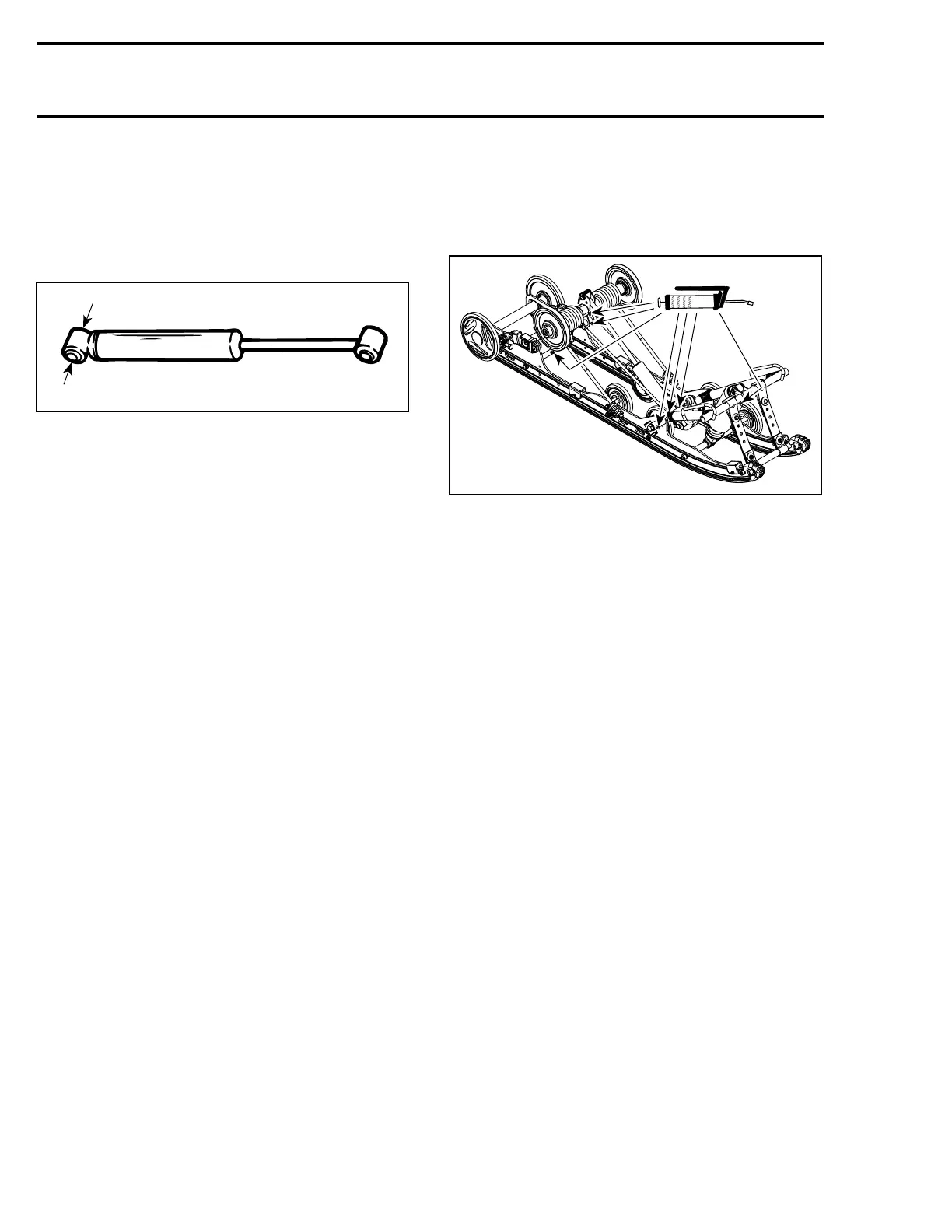

Secure the shock body end in a vise with its rod
upward.
A14F0BA
1
1. Clamp
CAUTION: Do not clamp directly on shock
body.
Examine each shock for leaks. Extend and com-
press the piston several times over its entire
stroke. Check that it moves smoothly and with
uniform resistance with its rod upward.
After at least 5 complete strokes, pay attention to
the following conditions that will denote a defec-
tive shock:
– A skip or a hang back when reversing stroke at
mid travel.
– Seizing or binding condition except at extreme
endofeitherstroke.
– Oil leakage.
– A gurgling noise, after completing one full com-
pression and extension stroke.
Renew if any faults are present.
If suspecting a frozen shock proceed as follows:
Place shock in a freezer (temperature below 0°C
(32°F)) for 4 hours.
Push down on rod and note its resistance. If
shock is frozen it will be impossible to compress
than for the new one.
INSTALLATION
Install assembled suspension into track with front
portion first.
Insert rear portion of suspension into track.
Bolt front arm and rear arm.
Adjust track tension. Refer to TRACK.
LUBRICATION
Lubricate front and rear arms at grease fittings
using suspension synthetic grease (P/N 293 550
033).
A34F0GA
SC-10 III: 7 GREASE FITTINGS
272
