Section 07 ELECTRICAL SYSTEM
Subsection 03 (ELECTRIC STARTER)
Yoke Assembly and Clutch Housing

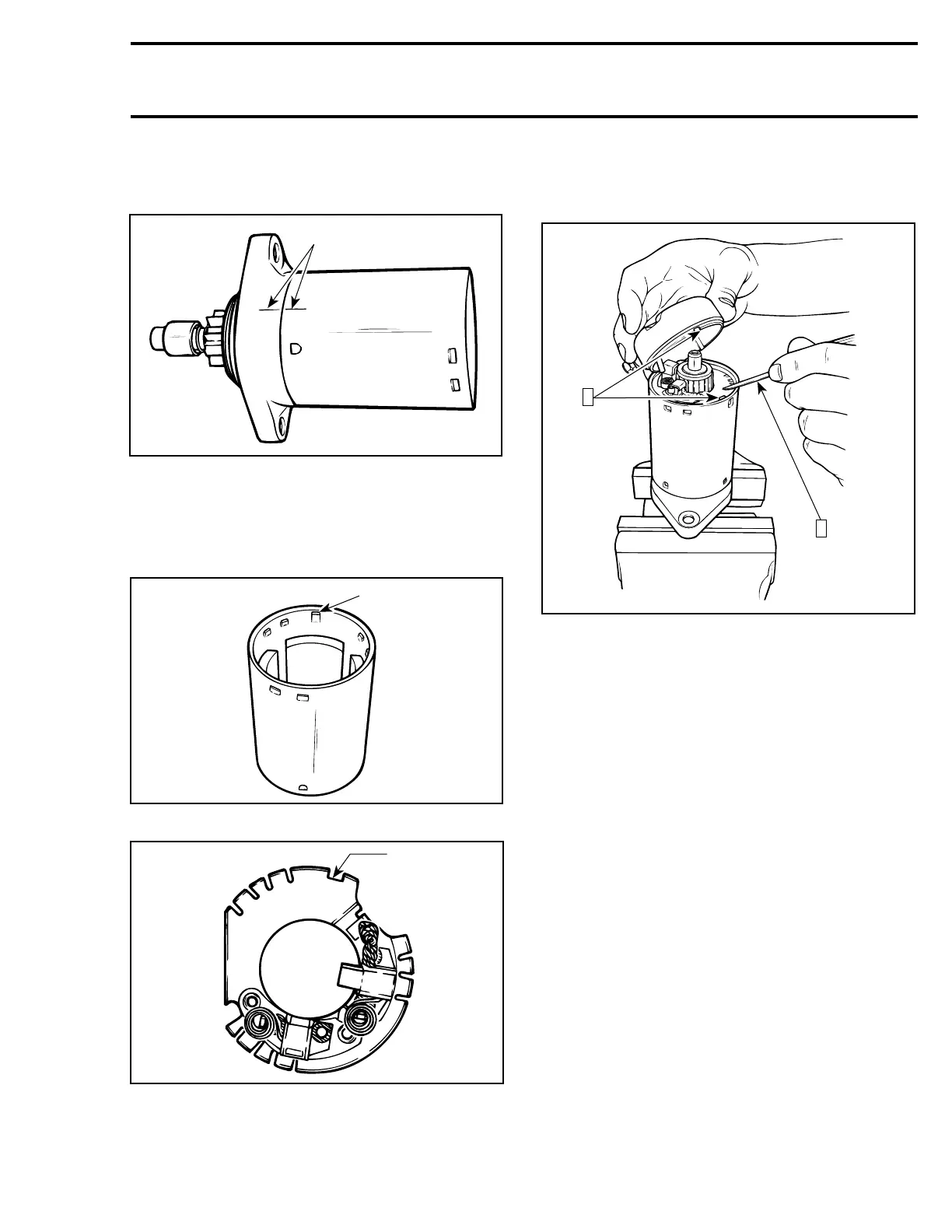

Align previously traced indexing marks.
F01H0QA
1
TYPICAL
1. Align marks
Open brushes and slide over commutator.
Align end frame locating notch with yoke locating
protrusion and properly sit brush holder into yoke.
F01H0SA
1
1. Locating protrusion is the higher one
F01H0TA
1
1. Brush holder locating notch
To ease end frame installation, retain brush holder
with a small screwdriver while installing end
frame.
F01H0UA
2
1
TYPICAL
1. Retaining brush holder with a screwdriver
2. Align here
Align end frame notch with brush holder notch/
yoke protrusion.
CAUTION: Make sure end frame fits perfectly
on yoke.
Apply Loctite 271 (red) on through bolts threads
andtorqueto6N•m(53lbf•in).
INSTALLATION
Installation is essentially the reverse of removal
procedure. However, pay particular attention to
the following.
Make sure that starter and engine mating surfaces
are free of debris. Serious trouble may arise if
starter is not properly aligned.
Apply grease Isoflex Topas NB52 (P/N 293 550
021) on O-rings of starter.
Install starter.
Te m pla te 259
