Section10BODY/FRAME
Subsection 01 (BODY)
CAUTION: Never touch glass portion of an
halogen bulb with bare fingers, as it short-
ens its operating life. If by mistake glass is
touched, clean it with isopropyl alcohol which
will not leave a film on the bulb.
Taillight
If the taillight bulb is burnt, expose the bulb by re-
moving red plastic lens. To remove, unscrew the
2 retaining screws. Verify all lights after replace-
ment.

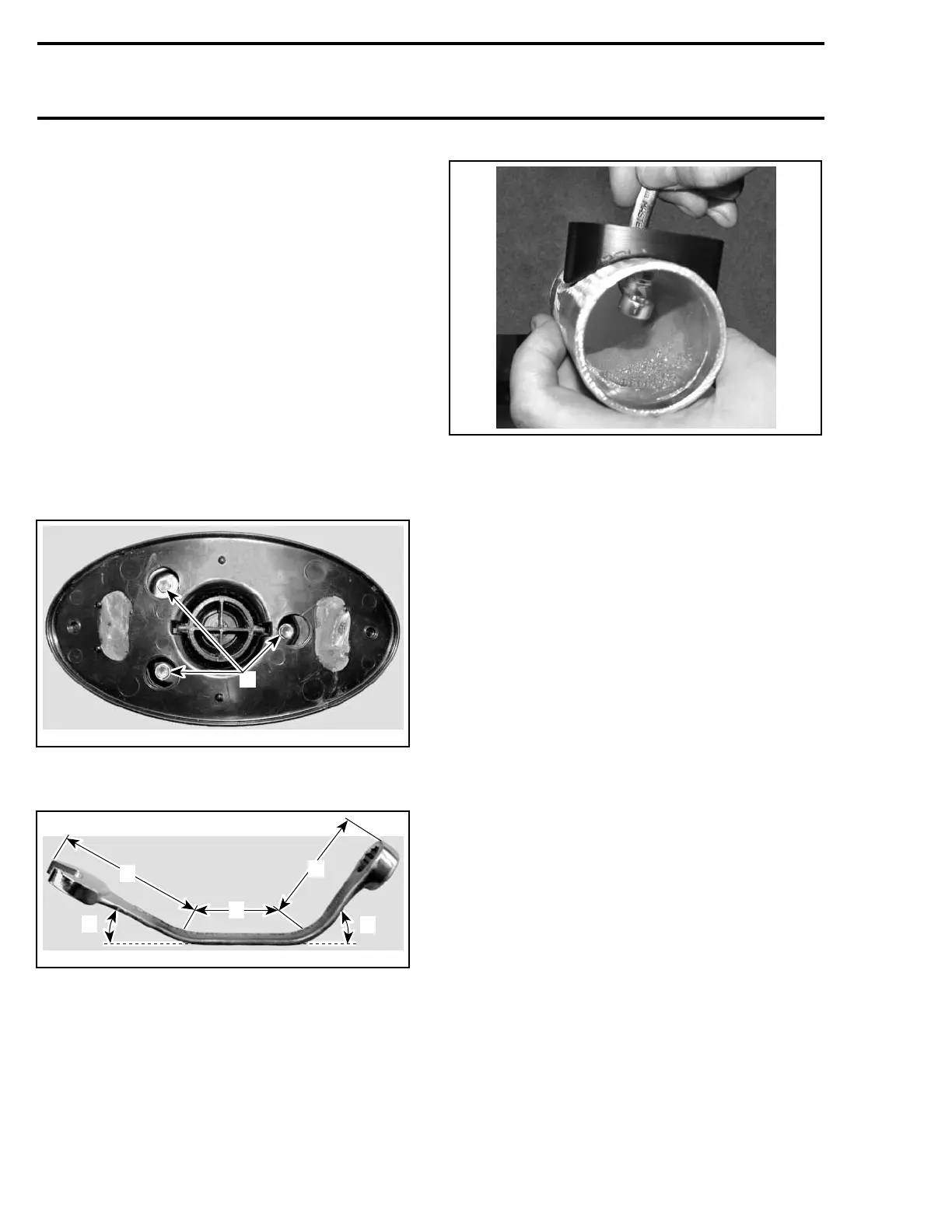

REARVIEW MIRROR
Removal
Remove the mirror from its back plate.
Unfasten the three bolts retaining the mirror back
plate to the mirror base.
1
A34H0QA
1. Three bolts
Bent a 8 mm wrench as illustrated.
A34H0RA
A
B
C
D
B
A. 65 mm (2-9/16 in)
B. 32 mm (1-1/4 in)
C. 33°
D. 55°
With the modified 8 mm wrench, unfasten the
two nuts retaining the mirror base to the structural
upper chassis. Use a magnet to catch the two
nuts.
A34H0SA
TYPICAL — CUTAWAY
Installation
For installation, reverse the removal procedure.
DECAL
To remove a decal; heat old decal with a heat gun
and peel off slowly.
Using isopropyl alcohol, clean the surface and dry
thoroughly.
Apply liquid soap to new decal and carefully po-
sition the decal. Using a sponge or a squeegee,
remove the air bubbles and surplus water work-
ing from the center toward the edges. Allow to
air dry.
CAUTION: Do not apply isopropyl alcohol or
solvent directly on decals. Use only in a well
ventilated area.
WINDSHIELD INSTALLATION
Remove protective film.
Position the windshield in its place then fasten it.
Put back the headlamp trim.
