Ski-Doo ELITE SERIES User Manual

Section04ENGINE
Subsection 09 (ENGINE BLOCK)

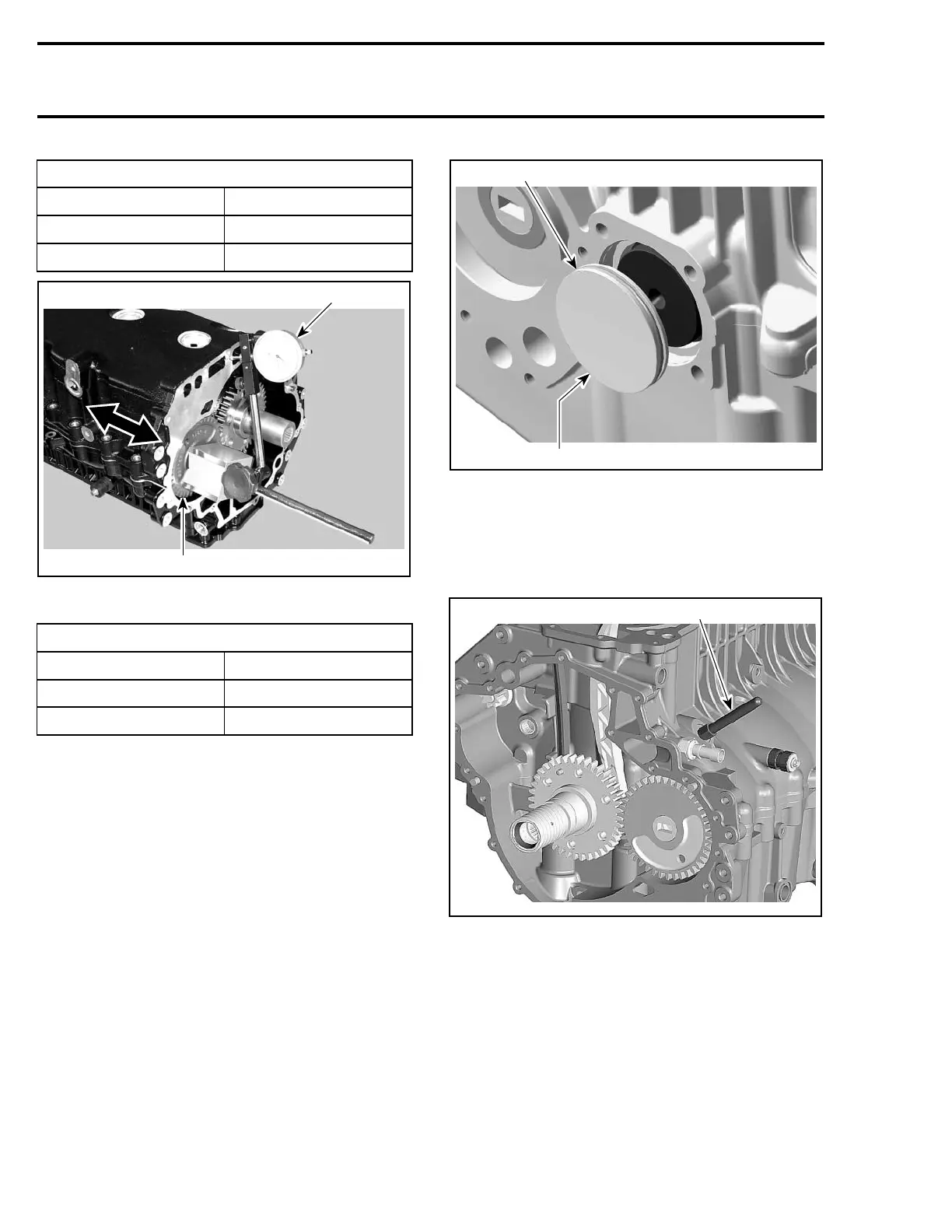

CRANKSHAFT AXIAL CLEARANCE mm (in)
NEW MINIMUM
0.08 mm (.003 in)
NEW MAXIMUM 0.22 mm (.009 in)
SERVICE LIMIT
0.35 mm (.014 in)
1
R1503motr42A
2
1. Dial gauge
2. Balancer shaft
BALANCER SHAFT AXIAL CLEARANCE mm (in)
NEW MINIMUM
0.02 mm (.001 in)
NEW MAXIMUM 0.25 mm (.010 in)
SERVICE LIMIT
0.35 mm (.014 in)
Install the crankshaft cover before mounting the
engine bracket. Apply oil on O-ring and press
cover in. Crankshaft cover has to be flush with
engine block surface.
1
R1503motr19A
2
1. O-ring
2. Crankshaft cover
CAUTION: Install crankshaft locking tool
(P/N 529 035 821) right away to position crank-
shaft at TDC before installing the camshaft and
rockers (refer to CYLINDER HEAD AND VALVE).
1
R1503motr308A
1. Crankshaft locking tool
Install cylinder head, PTO housing and the other
parts in accordance with the proper installation
procedures.
PISTON/CONNECTING ROD
Removal
Disassemble engine block as per ENGINE BLOCK
REMOVAL above.
158 Te m plat e
