Section 09 STEERING/FRONT SUSPENSION
Subsection 01 (STEERING SYSTEM)
Make sure skis are in a straight-ahead position by
placing a straight edge against pre-adjusted track
and measure the distance between front and rear
of skis and straight edge. Measuring points are
220 mm (8-21/32 in) at front and rear of ski pivot
axis.
To reduce tolerance when measuring, set one ski
to proper toe-out (half the total toe-out) then mea-
sure from that ski to the opposite ski.

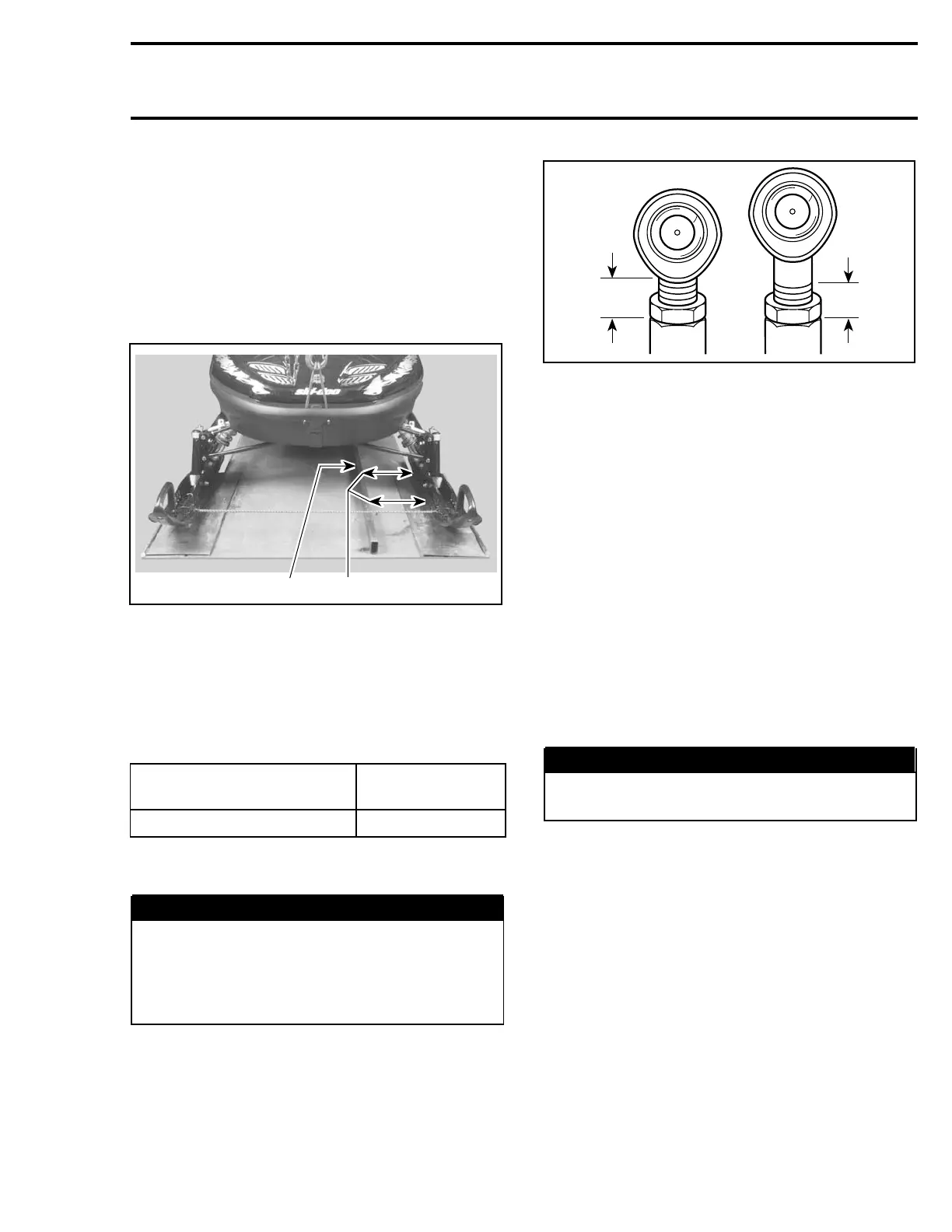

A30G0SA
21
TYPICAL
1. Straight edge
2. Measure at 220 mm (8-21/32 in) from ski pivot axis
If adjustment is needed, loosen jam nuts of both
long tie-rods no. 5.
Toe-out must be as specified in the following
chart.
MODEL
TOTAL TOE-OUT
±3mm(±1/8in)
Elite 3.0 (1/8)
Turn the tie rod to change its length then torque
jam nuts.
WARNING
Never lengthen tie rod so that the external
unengaged threaded portion of ball joint ex-
ceeds 20 mm (25/32 in). After jam nut tight-
ening, you should be able to rotate long tie
rods by 20°.
A02G0SA
A
A
TYPICAL
A. Maximum: 20 mm (25/32 in)
GRIP
Inspection
To check the heating grip element, refer to TEST-
ING PROCEDURE in ELECTRICAL SYSTEM sec-
tion.
Removal
Unplug heating element connectors.
Cut the grips no. 13 to remove them from steering
wheel.
CAUTION: Removing grip from handlebar will
damage the heating element. Do not remove
needlessly.
Installation
WARNING
Never use lubricants (e.g. oil, grease, soap
etc.) to install the handlebar grip.
Insertnewgripwithcompressedair.
STEERING WHEEL
Inspection
Inspect the steering wheel no. 1 for damage,
cracks or bending, replace if any problem is de-
tected.
Te m pla te 285
To Next Page
