Section 07 ELECTRICAL SYSTEM
Subsection 04 (TESTING PROCEDURE)
TESTING PROCEDURE
INSPECTION OF HEATING
ELEMENTS
Throttle Lever Heating Element
Resistance Measurement at 20°Cto30°C(68°F
to 86°F)
INTENSITY WIRES OHMS
HIGH
BROWN and
BLACK/YELLOW
1.73 to 4.22
LOW
BROWN/YELLOW
and
BLACK/YELLOW
5.73 to 18.54
Steering Grip Heating Element
Resistance Measurement at 21°C(70°F)
INTENSITY WIRES OHMS
HIGH
BLACK and
ORANGE
6.8to8.4
LOW
BLACK and
ORANGE/VIOLET
13.7 to 16.7
Passenger Heating Grip
Resistance Measurement at 21°C(70°F)
INTENSITY WIRES OHMS
HIGH
BLACK and
ORANGE
11.4 to 14.0
LOW
BLACK and
ORANGE/VIOLET
22.9 to 28.0
HEADLIGHT AND ACCESSORIES
SYSTEMS TESTING
To supply headlight and accessories with 12 volts,
ground the ORANGE/WHITE wire that goes
into the Vehicle Control Module (VCM). Re-
fer to WIRING HARNESS to remove the OR-
ANGE/WHITE wire from connector housing.

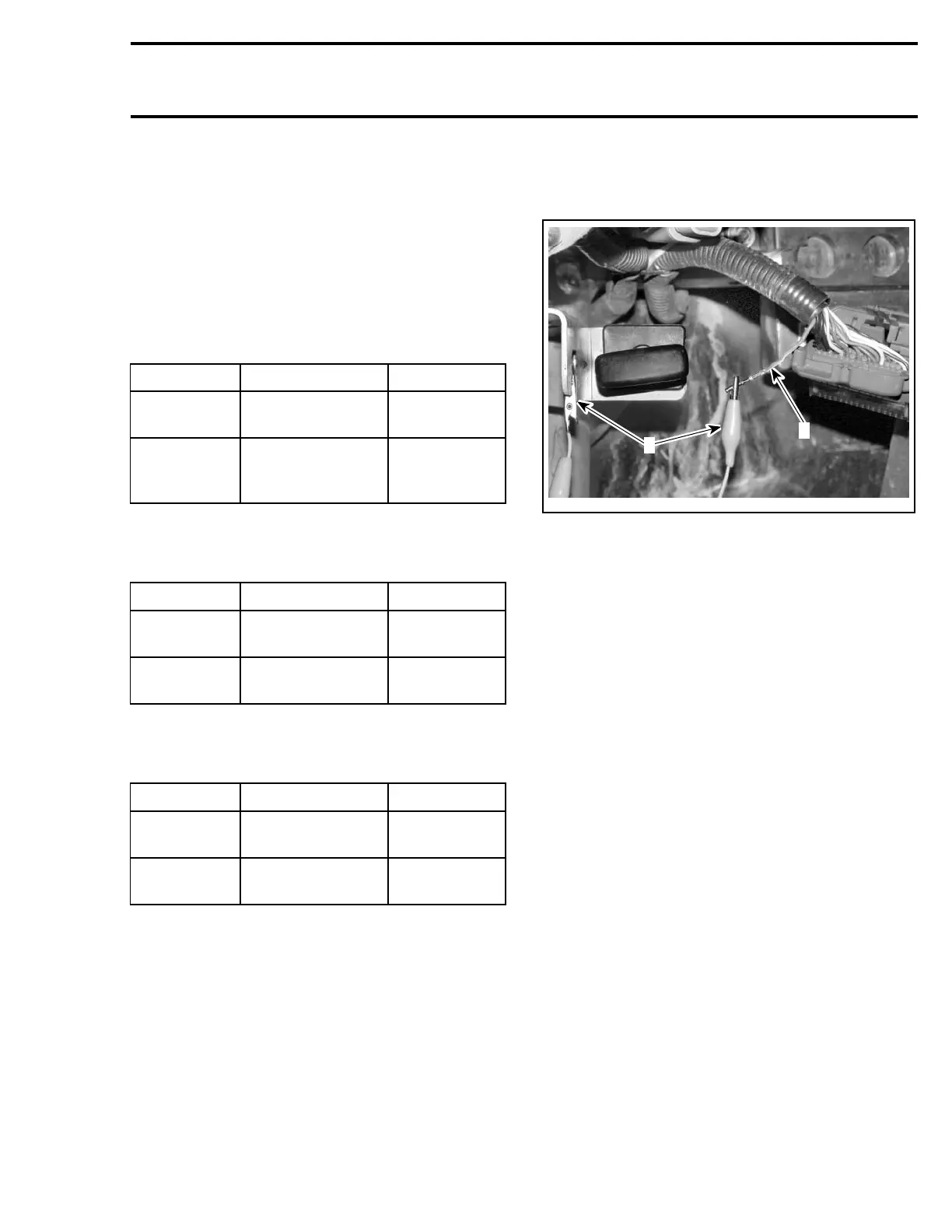

A34E0OA
2
1
UNDERNEATH DASH ON LEFT HAND SIDE OF
STEERING COLUMN
1. ORANGE/WHITE wire
2. Jumper connected to ground
Te m pla te 261
