Section 06 TRANSMISSION
Subsection 04 (PULLEY DISTANCE AND ALIGNMENT)
A34D04A
1

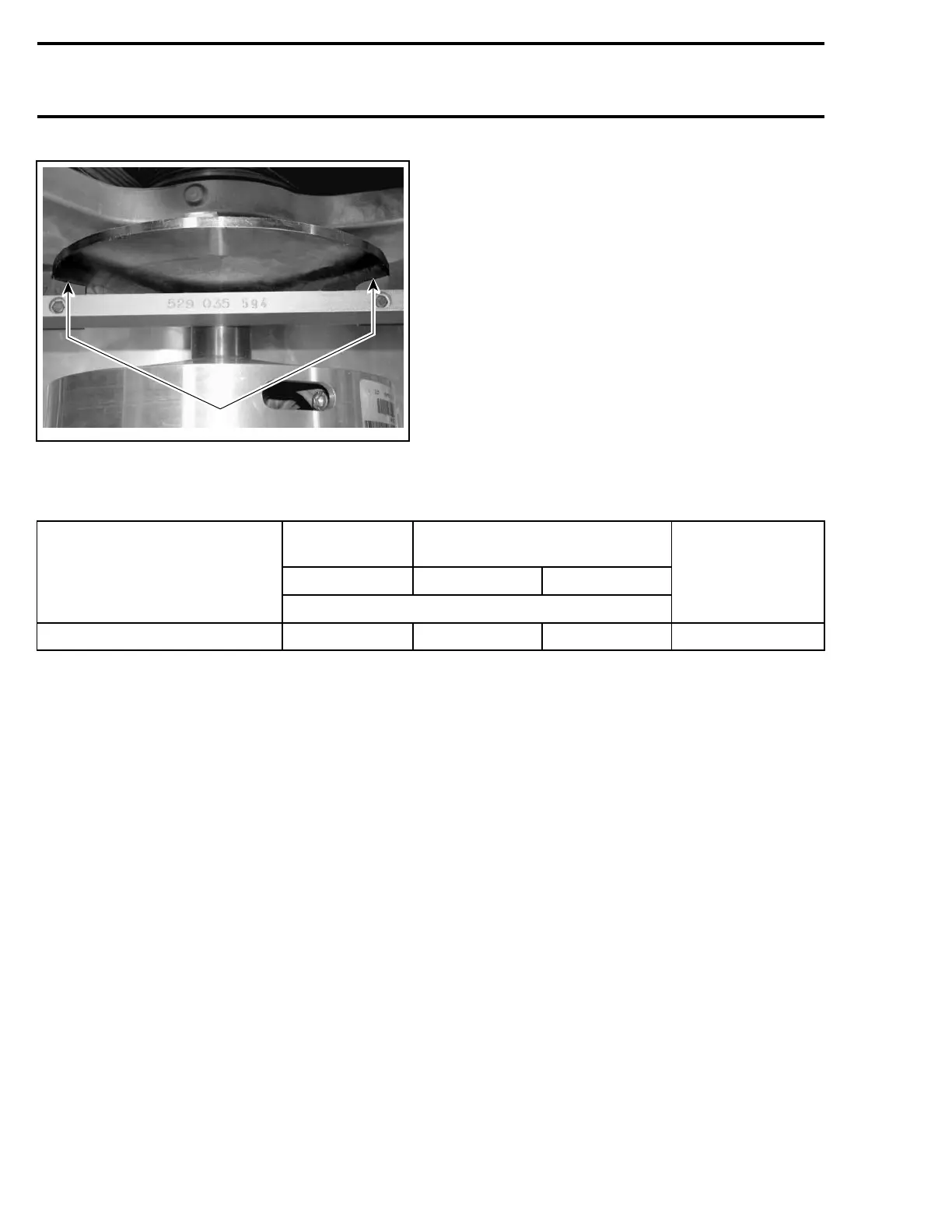

1. Alignment bar plates
Retighten the engine supports.
Adjust all torque rods so they slightly touch the
engine block or engine support depending on their
location.
Drive Belt Deflection
NOTE: When pulley distance and alignment are
adjusted to specifications, refer to DRIVE BELT to
adjust drive belt deflection.
CAUTION: This section deals mainly with ad-
justment procedures. For complete assembly
requirements, refer to the proper ENGINE or
TRANSMISSION installation section.
PULLEY ALIGNMENT AND DISTANCE SPECIFICATIONS CHART
PULLEY
DISTANCE
OFFSET
Z X Y-X
MODEL
± 0.50 mm (.020 in)
ALIGNMENT
BAR
P/N
ELITE 121.0 (4.764) 37.0 (1.456) 1.5 (0.060) 529 035 594
232 Te m plat e
