INTRODUCTION

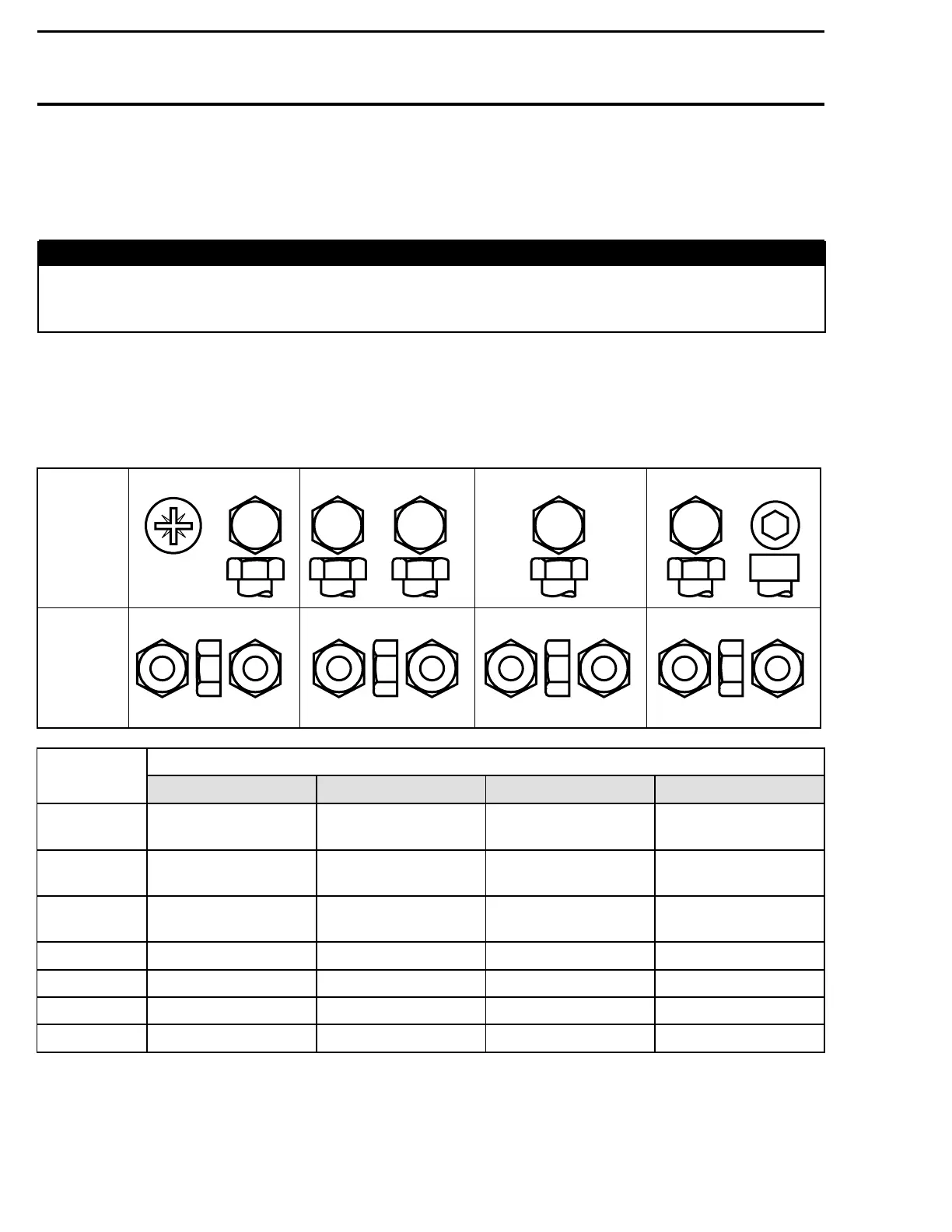

TIGHTENING TORQUE
Tighten fasteners to torque mentioned in exploded views and/or text, When they are not specified, refer
to following table. The table also gives the metric conversion.
WARNING
Torque wrench tightening specifications must strictly be adhered to. Locking devices (ex.: lock-
ing tabs, elastic stop nuts, self-locking fasteners, etc.) must be installed or replaced with new
ones, where specified. If the efficiency of a locking device is impaired, it must be renewed.
In order to avoid a poor assembling, tighten screws, bolts or nuts in accordance with the following pro-
cedure:
– Manually screw all screws, bolts and/or nuts.
– Apply the half of the recommended torque value.
CAUTION: Be sure to use proper tightening torque for the proper strength grade.
A00A8BS
Property
class
and
head
markings
Property
class
and
nut
markings
5
5
10
10
10
10
12
12
4.8
4.8
4.8
8.8
8.8
8.8
9.8
9.8
9.8
10.9
10.9
10.9
12.9
12.9
12.9
12.9
FASTENER GRADE/TORQUE
FASTENER
SIZE
5.8 Grade 8.8 Grade 10.9 Grade 12.9 Grade
M4
1.5 — 2N•m
(13 — 18 lbf•in)
2.5 — 3N•m
(22 — 27 lbf•in)
3.5 — 4N•m
(31 — 35 lbf•in)
4 — 5N•m
(35 — 44 lbf•in)
M5
3 — 3.5 N•m
(27 — 31 lbf•in)
4.5 — 5.5 N•m
(40 — 47 lbf•in)
7 — 8.5 N•m
(62 — 75 lbf•in)
8 — 10 N•m
(71 — 89 lbf•in)
M6
6.5 — 8.5 N•m
(58 — 75 lbf•in)
8 — 12 N•m
(71 — 106 lbf•in)
10.5 — 15 N•m
(93 — 133 lbf•in)
16 N•m (142 lbf•in)
M8 15 N•m(11lbf•ft) 24.5 N•m(18lbf•ft) 31.5 N•m(23lbf•ft) 40 N•m(30lbf•ft)
M10 29 N•m(21lbf•ft) 48 N•m(35lbf•ft) 61 N•m(45lbf•ft) 72.5 N•m(53lbf•ft)
M12 52 N•m(38lbf•ft) 85 N•m(63lbf•ft) 105 N•m(77lbf•ft) 127.5 N•m(94lbf•ft)
M14 85 N•m(63lbf•ft) 135 N•m(100lbf•ft) 170 N•m (125 lbf•ft) 200 N•m (148 lbf•ft)
XVI
