Section04ENGINE
Subsection 07 (LUBRICATION SYSTEM)
R1503motr288B
1
2
2

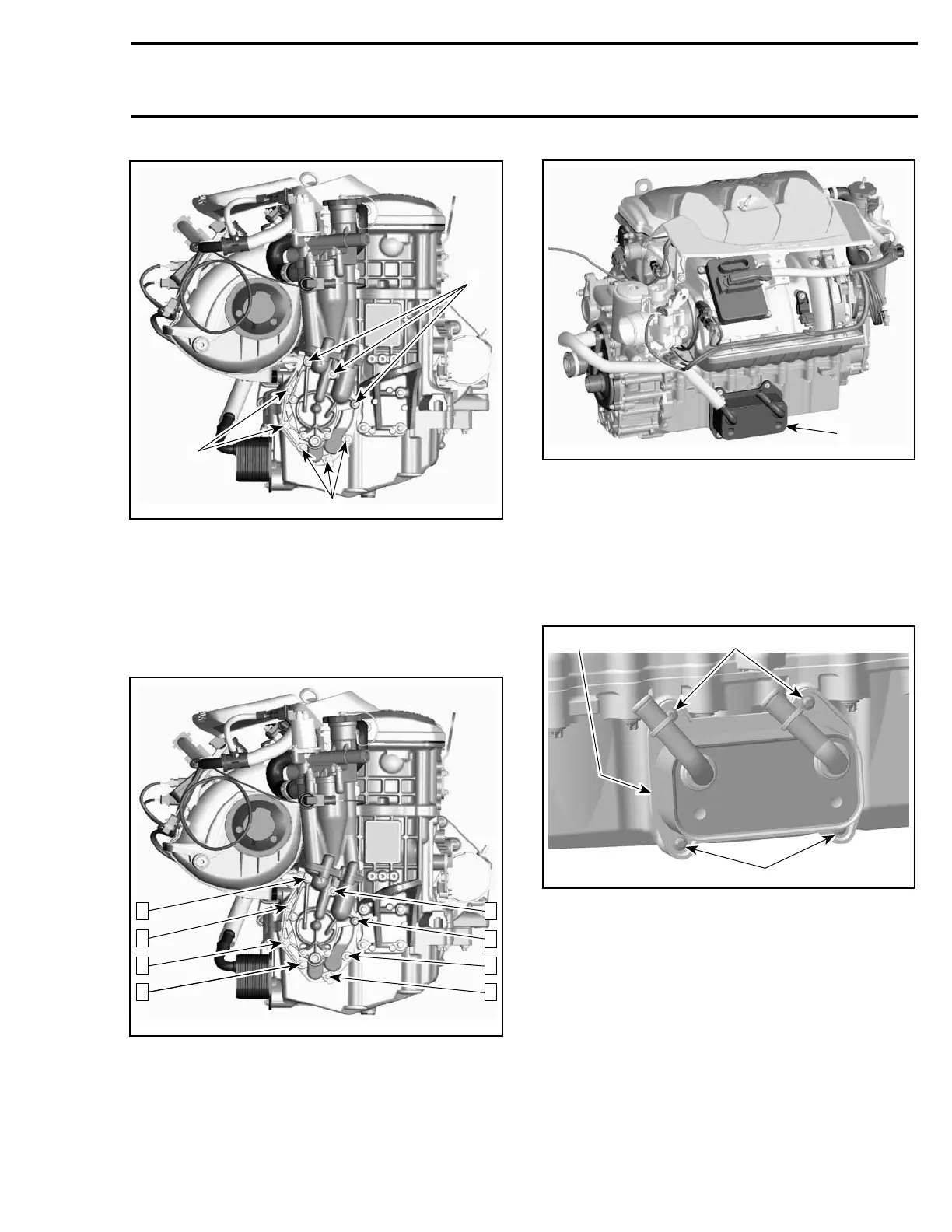

1. Screws M6 x 85
2. Screws M6 x 25
Torque oil pump cover screws to 10 N•m
(88 lbf•in).
Tighten suction pump screws as per following se-
quence and torque to 10 N•m(88lbf•in). Apply
Loctite 243 (blue) on threads.
R1503motr288C
1
2
3
4
5
6
7
8
OIL COOLER
The oil cooler is located below the air intake man-
ifold.
R1503motr286A
1
TYPICAL
1. Oil cooler
Removal
Remove:
– cooling hoses no. 34 and no. 35
– retaining screws no. 36
– oil cooler no. 37
1
R1503motr147A
1
2
1. Screws
2. Oil cooler
– O-rings no. 38.
Te m pla te 121
