Ski-Doo ELITE SERIES User Manual

Section 06 TRANSMISSION
Subsection 01 (DRIVE BELT)
DRIVEBELTDEFLECTION
MEASUREMENT
(REFERENCE ONLY)
NOTE: The drive belt deflection measurement
must be performed each time a new drive belt is
installed.
NOTE: To obtain an accurate drive belt deflection
measurement, it is suggested to allow a break-in
period of 50 km (30 miles).
Before checking the belt deflection, ensure vehi-
clehastheproperbelt(refertotheAPPLICATION
CHART).
Adjust pulley distance and alignment. Refer to
PULLEY DISTANCE AND ALIGNMENT.
To obtain maximum vehicle performance, the belt
tension must be adjusted according to specifica-
tions shown in the accompanying chart.
MODEL
DEFLECTION
†
mm (in)
FORCE
kg (lb)
All
models
32 ± 5 (1.260 ± .197) 11.5 (25)
†
FOR REFERENCE ONLY

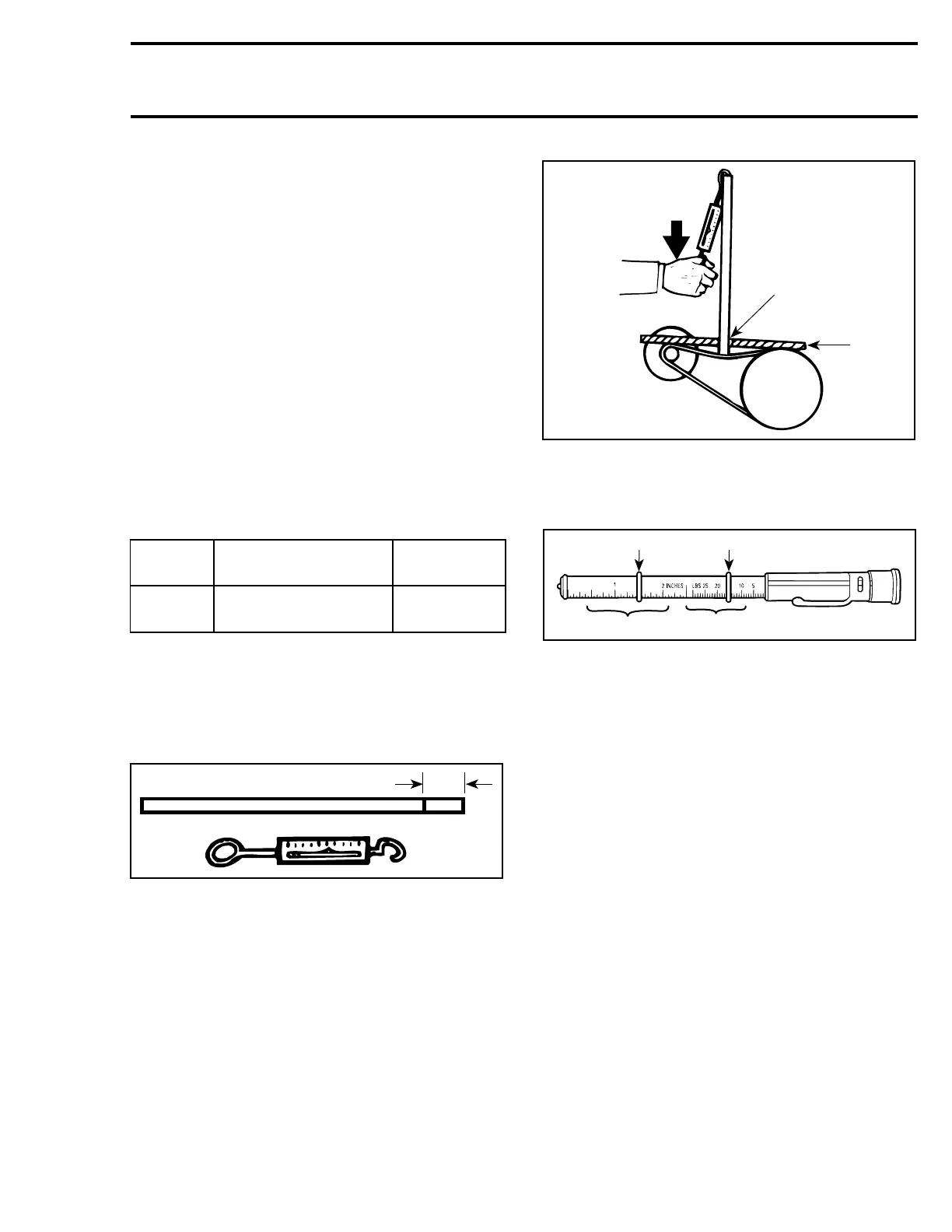

To Check Tension
Position a reference rule on drive belt.
Wooden Stick and Spring Scale Method
A00D05A
1
1. Mark specified deflection
Using spring scale and stick, apply specified force
on drive belt halfway between pulleys as shown.
A00D06A
1
2
3
1. Force
2. Read deflection here
3. Reference rule
Or use the belt tension tester (P/N 414 348 200).
1
34
A00C07B
2
1. Lower O-ring
2. Upper O-ring
3. Force (read down)
4. Deflection (read up)
1) Slide lower O-ring of deflection scale to speci-
fied measure.
2) Slide upper O-ring to 0 (zero) on the force scale.
3) Apply pressure until lower O-ring is flush with
edge of rule and read force on the upper scale
at top edge of O-ring.
Te m pla te 217
