Section04ENGINE
Subsection 02 (INTAKE SYSTEM)

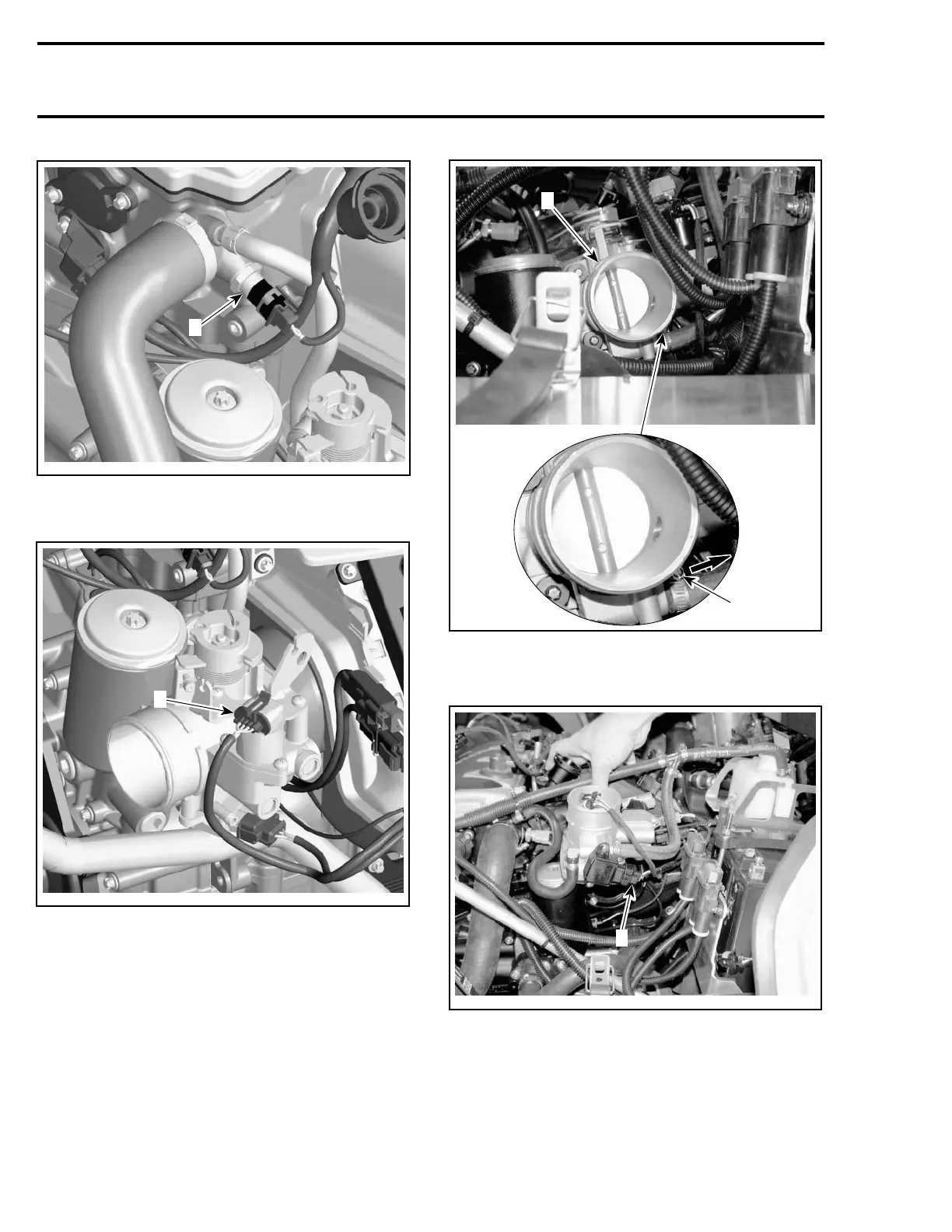

R1503motr298A
1
1. CTS connector
Disconnect idle bypass valve connector.
R1503motr299A
1
1. Idle bypass valve connector
Slacken coolant hose collar at the front of RH
lower screw of throttle body. Move collar away
to have access to the screw behind.
Remove throttle body from intake manifold and
move away. Reposition and retighten collar to
avoid coolant leakage.
NOTE: Do not disconnect throttle cable.
A34C17A
1
2
1. Idle bypass valve
2. Coolant hose collar
Disconnect TPS connector.
A34C1AA
1
1. TPS connector
Disconnect OPS connector.
