Section04ENGINE
Subsection 02 (INTAKE SYSTEM)

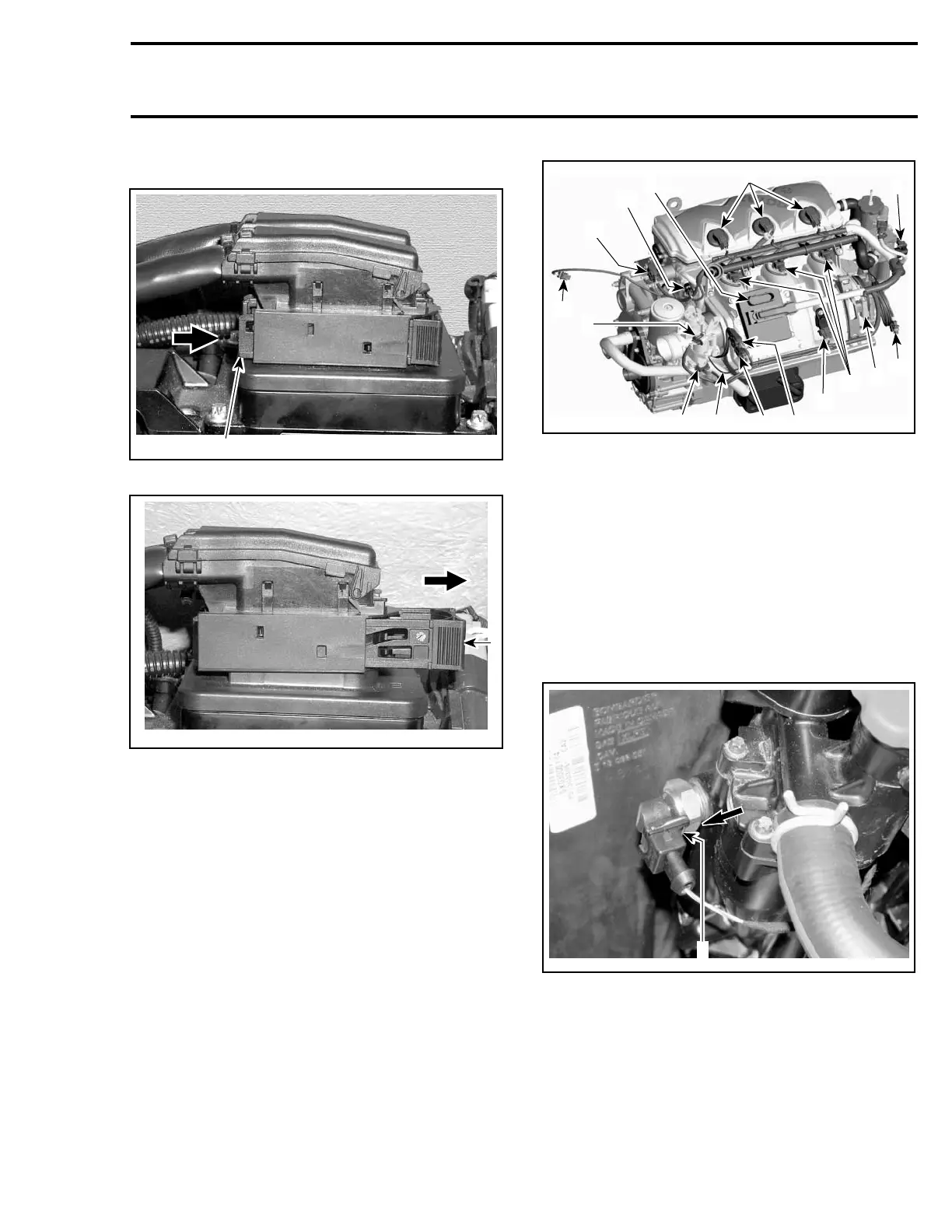

Unplug the "B" connector from the Engine ECU.
1
R1503motr70A
1. Push this end to unlock
1
R1503motr71A
1. Pull here to release
Cut appropriate locking tie(s) and unplug connec-
tors of sensors attached to the engine wiring har-
ness.
8
7
36
R1503motr295A
14
2
10
5
15
4
13
12
1
9
11
CONNECTORS OVERVIEW
1. Ignition coils
2. OSPS
3. OPS
4. Idle bypass valve
5. Engine connector
6. TPS
7. KS
8. CPS
9. “B”-Connector housing
10. ATS
11. Injectors
12. CTS
13.CAPS
14.RCTS
15. MAPS
Disconnect OSPS connector.
A34C13A
1
1. Push here with a small screwdriver and hold while
pulling connector out
Disconnect CTS connector.
Te m pla te 73
