Section04ENGINE
Subsection 08 (CYLINDER HEAD AND VALVES)

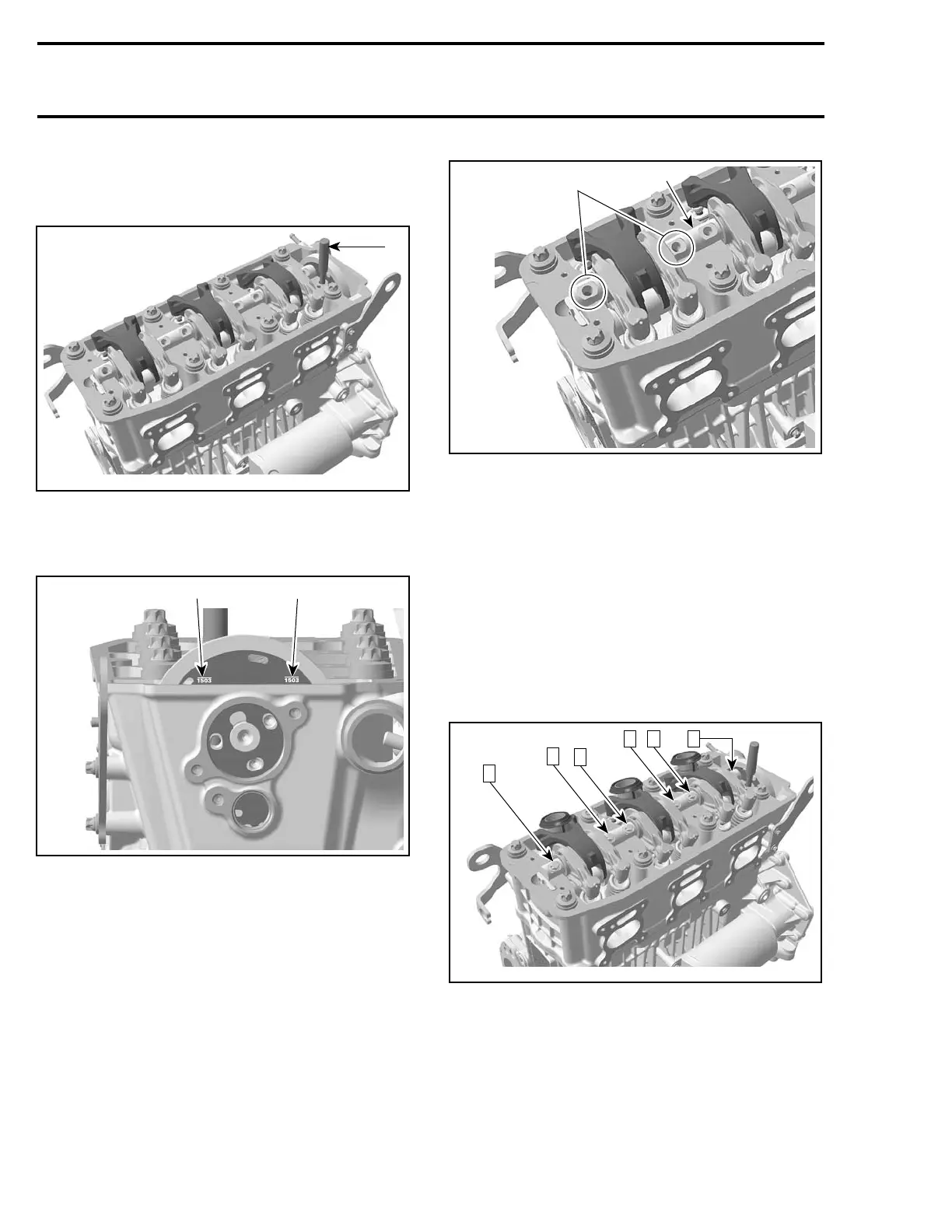

Use camshaft locking tool (P/N 529 035 839).
Rotate camshaft so that tool can be pushed in
camshaft hole and lock camshaft in place.
R1503motr111A
1
1. Camshaft locking tool
Then, the camshaft sprocket lines should be lined
up as shown in the following illustration.
1
R1503motr95A
1
1. Position lines
Position the rocker arm shaft with the notches on
top.
1
R1503motr91A
2
1. Rocker arm shaft
2. Rocker arm shaft notches
Install NEW rocker arm shaft screws no. 8.
Torque as per following procedure:
CAUTION: This assembly uses stretch screws.
As the screws have been stretched from the
previous installation, it is very important to use
new screws at assembly . Failure to replace
screws and to strictly follow the torque proce-
dure may cause screws to loosen and lead to
engine damage.
– Torque screws at first to 10 N•m(88lbf•in)
according to following sequence.
R1503motr93A
2
1 3 4
5
6
– Torque screws to 20 N•m (177 lbf•in).
– Finish tightening screws turning an additional
90° rotation with a torque angle gauge.
