Ski-Doo ELITE SERIES User Manual

Section04ENGINE
Subsection 09 (ENGINE BLOCK)

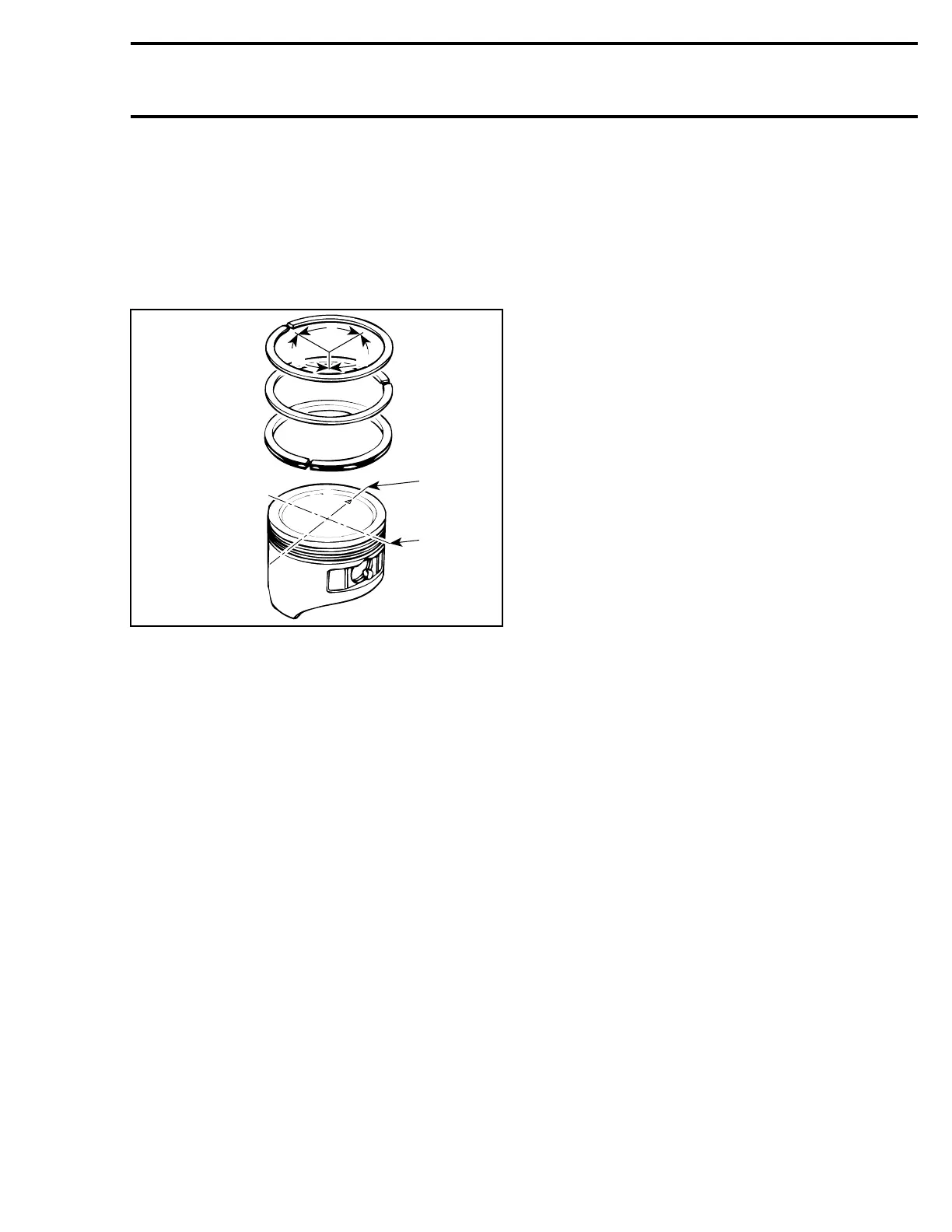

NOTE: Use a ring expander to prevent breakage
during installation. The oil ring must be installed
by hand.
Check that rings rotate smoothly after installation.
Space the piston ring end gaps 120° apart and do
not align the gaps with the piston pin bore or the
thrust side axis.
A31C2OA
1
2
A
A
A
1. DO NOT align ring gap with piston trust side axis
2. DO NOT align ring gap with piston pin bore axis
A. 120°
Te m pla te 165
