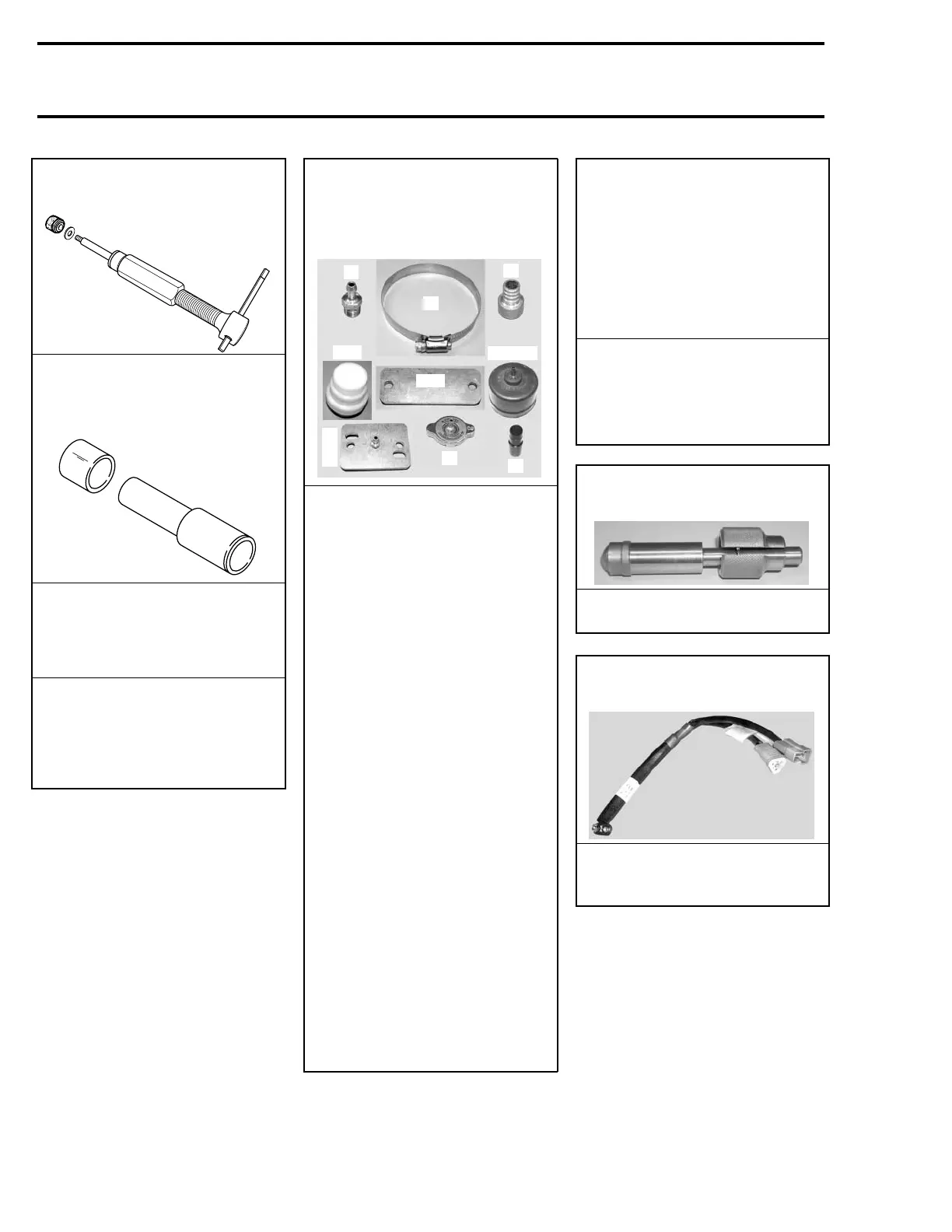

Section 01 SERVICE TOOLS AND SERVICE PRODUCTS
Subsection 01 (SERVICE TOOLS)
1) Piston pin puller
(P/N 529 035 503)
2) Sleeve kit 18 mm
(P/N 529 035 541)
3) Sleeve kit 20 mm
(P/N 529 035 542)
NOTE: 18 mm sleeve kit con-
tains 1 shouldered sleeve and 3
sleeves. 20 mm sleeve kit con-
tains 1 shouldered sleeve and 2
sleeves.
APPLICATION
1) All engines.
2) 277 and 443 engines.
3) 552, 593, 693 and 793 en-
gines.
Engine leak tester kit
(P/N 861 749 100)
NOTE: Should be used with
hand pump (P/N 529 021 800).
1
3
2
4-5-6
7-8-9
10-11-12
13
14
15
16
17
1) Fitting
(P/N 408 201 100) (2)
2) Clamp
(P/N 408 803 500)
3) Adapter
(P/N 517 234 900) (2)
4) Intake plug
(P/N 529 011 000) (2)
5) Intake plug
(P/N 529 030 500)
6) Intake plug
(P/N 529 035 963) (2)
7) RAVE plate
(P/N 529 011 200) (2)
8) RAVE plate
(P/N 529 035 971) (2)
9) RAVE plate
(P/N 529 035 972) (2)
10)Manifold plug
57 mm (2-1/4 in)
(P/N 529 021 100)
11)Manifold plug
63 mm (2-1/2 in)
(P/N 529 035 961)
12)Manifold plug
70 mm (2-3/4 in)
(P/N 529 021 200)
13)Exhaust plate
(P/N 529 021 300) (2)
14) Exhaust plate
(P/N 529 024 600) (2)
15) Exhaust plate
(P/N 529 035 962) (2)
16) Radiator cap
(P/N 529 021 400)
17) Resonator plug
(P/N 529 035 973) (2)
APPLICATION
All engines.
NOTE: To prevent leak in mani-
fold plug, use Loctite Black MAX
(P/N 413 408 300).
Piston circlip installer 20 mm
(P/N 529 035 686)
APPLICATION
Engines with tab type circlip.
9-volt adaptor
(P/N 529 035 675)
APPLICATION
All models equipped with a
DESS.
