Section 08 REAR SUSPENSION
Subsection 03 (TRACK)
Restart engine, rotate tracks slowly and recheck
alignment. If the satisfactory alignment is
achieved, then tighten the idler wheel retain-
ing screws to 48 N•m(35lbf•ft).
Track Cleat
Removal
– Raise rear of vehicle off the ground and lift
snowguard then hand rotate track to expose a
cleat to be replaced.
– Use track cleat remover (P/N 529 028 700) for
all models.
Installation
– Place new cleat in position on the track and
using narrow track cleat installer (P/N 529 008
500) bend cleat then push tabs into rubber.
– Re-open installer, then position cleat tabs on
open end of tool and squeeze tabs until they are
indentedinrubber.

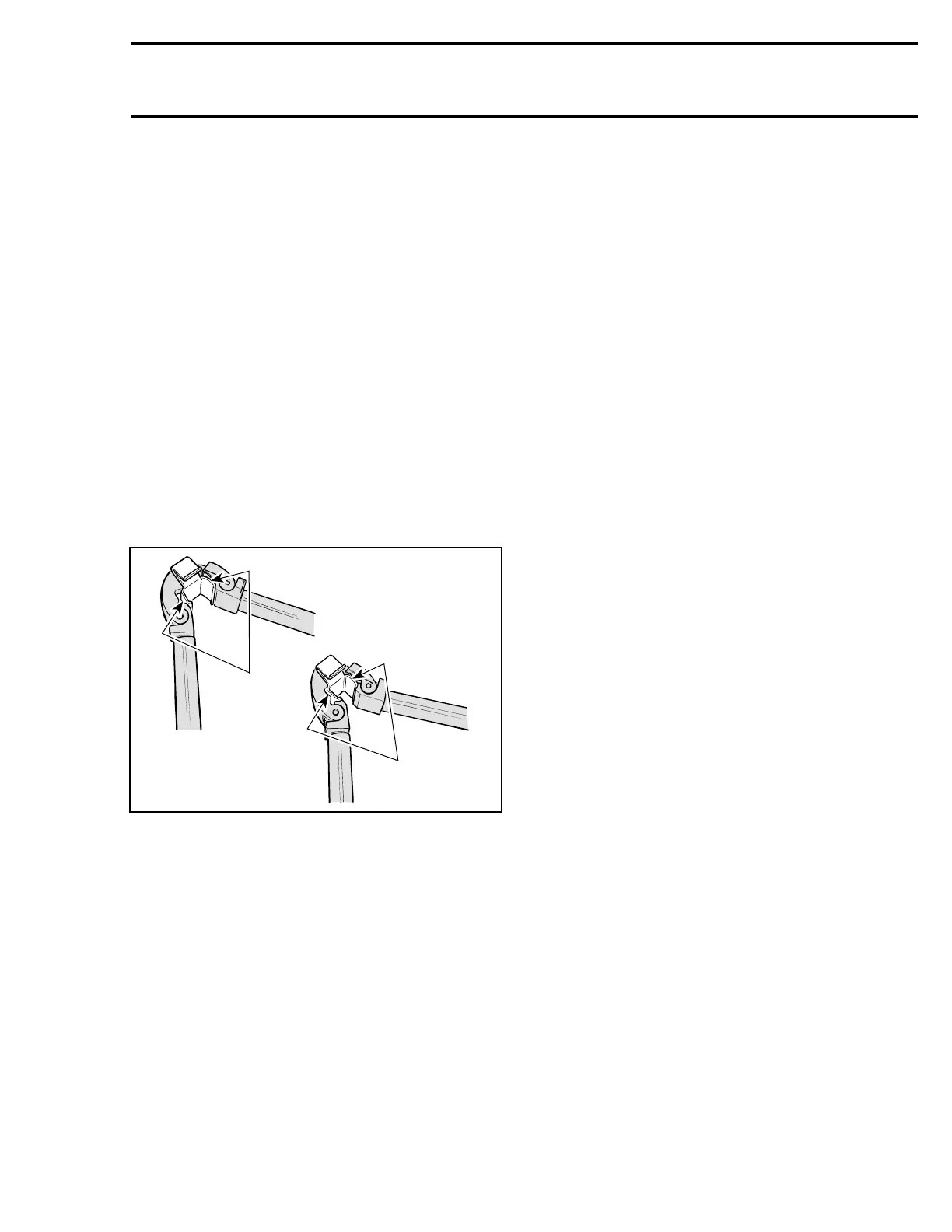

A01B4UA
1
2
TYPICAL
1. First step
2. Second step (to push tabs into rubber)
