Section10BODY/FRAME
Subsection 01 (BODY)
A34H0JA
1
2

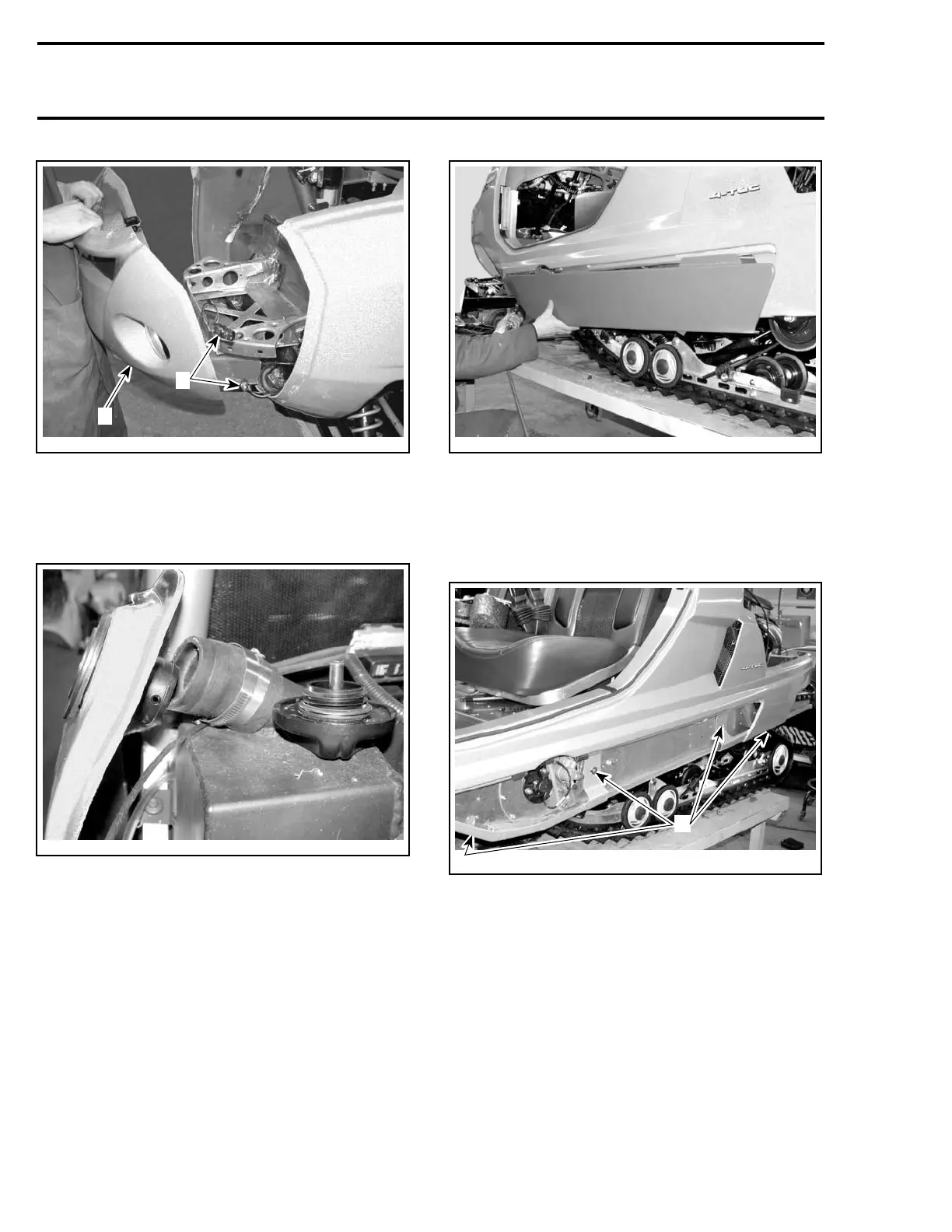

TYPICAL — STORAGE COMPARTMENT REMOVED
1. Nose
2. Left hand side fog light connectors
Remove the fuel tank cap then, loosen the collar
retaining the filler neck.
A34H0LA
FILLER NECK UNFASTENING
Remove both rear bumper extensions.
Unfasten both plastic moldings.
A34H0KA
REMOVALOFLEFTHANDSIDEPLASTICMOLDING
Drill the 2 rivets retaining the rear of side panel to
the rear part.
Remove the four screws retaining lower portion
of each side panel.
A34H0NA
1
1. Screws location
Remove the inner plastic panel to gain access
to door hook bracket. Unfasten the door hook
bracket from the chassis.
Remove the side panels from the vehicle.
