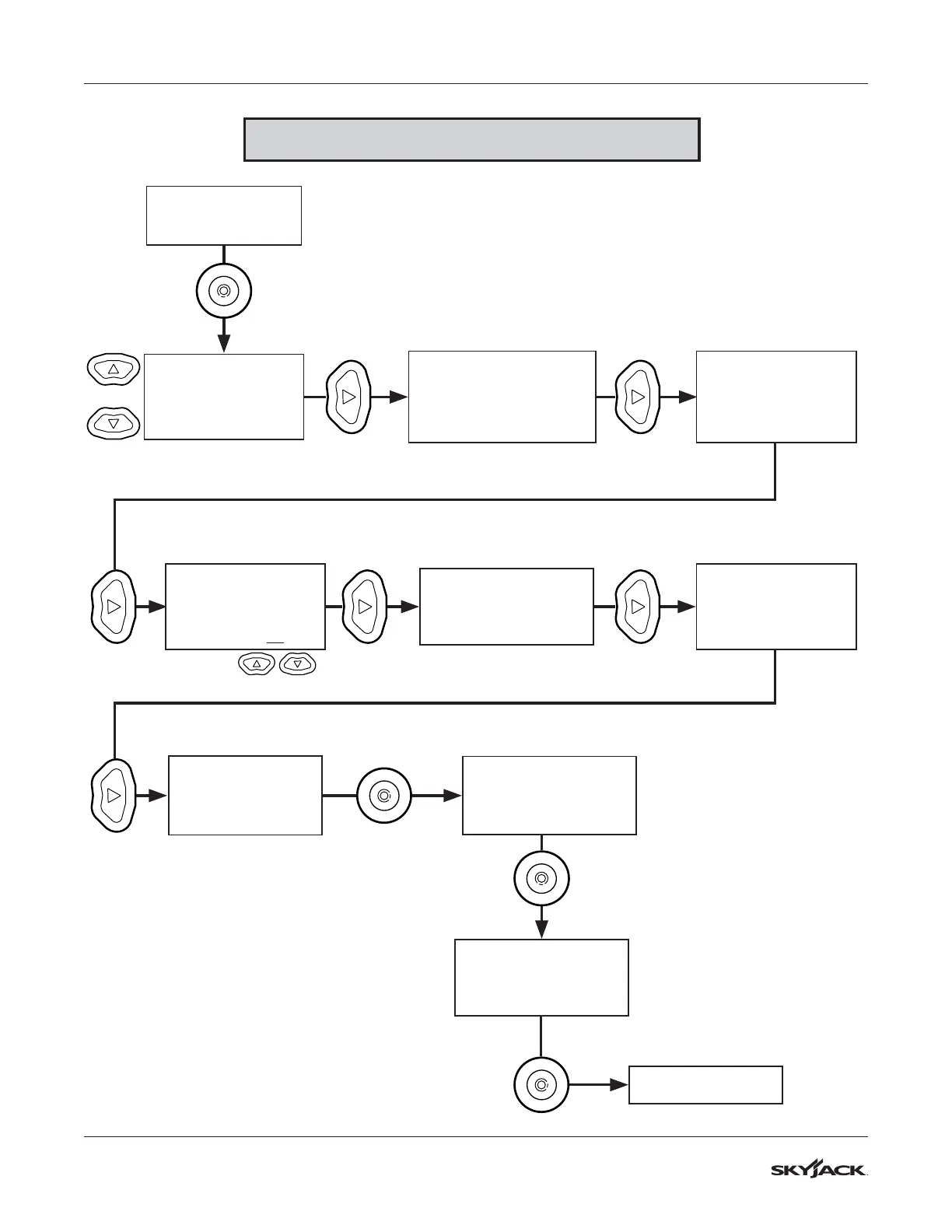

LOAD CELL - PARTIAL WEIGHT CALIBRATION
CALIBR.LOAD CELL
CALIBRATE PART
ADJUST PARTIAL
WEIGHT 31KG
CALIBR.LOAD CELL
CALIBRATE PART
IS WEIGHT LIFTED
AND PLATF EMPTY?
CALIBR.LOAD CELL
CALIBRATE PART
CONFIRM LOADED
CALIBRAT .? XXKG
CALIBR.LOAD CELL
CALIBRATE PART
CONFIRM EMPTY
CALIBRAT.? XXKG
CALIBR.LOAD CELL
CALIBRATE LOADED
NOMINAL WEIGHT
SAVING DATA WAIT
CALIBR.LOAD CELL
CALIBRATE EMPTY
PLATFORM EMPTY
CALIBRATION DONE
CALIBRATION
Do not cycle machine power
when this window is active
Partial load can be selected
between 18 - 45 kg (40 - 100 lb)
CALIBRATION
CALIBR.LOAD
CELL
CALIBR.LOAD CELL
CALIBRATE LOADED
CALIB.LOAD.CEL:
PARTIAL WEIGHT
CALIBR.LOAD CELL
CALIBRATE EMPTY
IS PLATFORM ISO
LATED FROM BASE?
PLATFORM EMPTY
CALIBR.LOAD CELL
CALIBRATE LOADED
IS PLATF EMPTY
WITHOUT OPTIONS?
